Heat pump water heater testing: A comprehensive guide to key equipment and test procedures

Heat pump water heater testing: A comprehensive guide to key equipment and test procedures

As an efficient and energy-saving hot water solution, the quality of heat pump water heaters relies heavily on rigorous system testing and verification. From core performance to adaptability to extreme environments, and from safety features to smart user experience, every performance indicator must be accurately tested using professional equipment. This article will delve into the "quality assessment system" for heat pump water heaters, focusing on both the testing equipment used and the corresponding test parameters.

1. Enthalpy Difference Test Laboratory – COP (Coefficient of Performance) and Heating Capacity Testing

Equipment Function: Composed of an environmental chamber, a load chamber, and a data acquisition system, it can precisely control environmental parameters such as temperature (-15°C to 43°C) and humidity (30% to 90%), simulating various climatic conditions.

Test Items:

COP (Coefficient of Performance): Under standard operating conditions (25°C ambient temperature, 15°C inlet water temperature, 55°C outlet water temperature), measure the ratio of heating output to input power; for top-tier energy efficiency products, COP must be ≥4.0.

Heating Speed: Record the time required to heat the water from the initial temperature to a set temperature (e.g., 55°C) to evaluate the heating capacity per unit time.

Heat Exchanger Performance: Use customized testing equipment to evaluate the performance and efficiency of the heat exchanger.

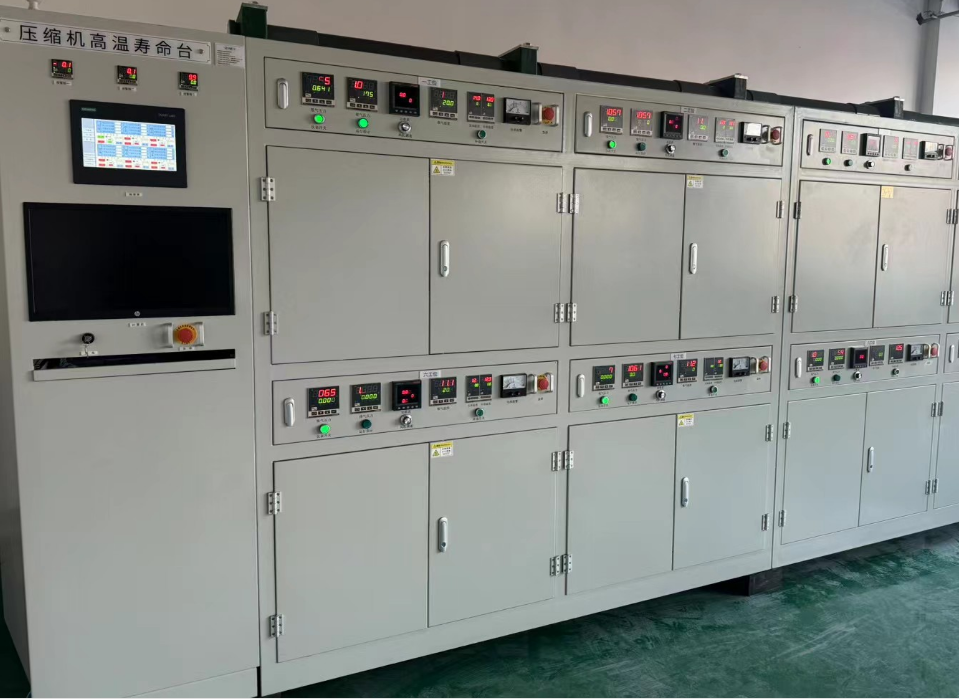

2. Compressor Test Rig – Durability and Stability Testing of Core Components

Equipment Function: Simulates the operating conditions of a compressor under various loads and temperatures, equipped with vibration sensors, lubricating oil analyzers, etc.

Test Items:

Continuous Operation Durability: Continuously operate the compressor under rated conditions for 5000 hours, monitoring performance degradation (allowable degradation ≤10%).

Start-Stop Cycle Test: Perform 30 start-stop cycles daily for a total of 10,000 cycles, verifying the fatigue resistance of the motor and bearings.

Low-Temperature Starting Performance: Test the compressor's starting success rate at -10°C, requiring 10 consecutive successful starts without failure.

3. Dynamic Water Temperature Control System – Intelligent Temperature Control Accuracy Test

Device Function: Simulates scenarios such as remote control by users and time-based heating, equipped with a high-precision temperature sensor (accuracy ±0.1°C).

Test Items:

Remote Temperature Control Response: Set the water temperature via an app (e.g., from 30°C to 50°C); the target temperature must be reached within 10 minutes, and the temperature fluctuation after stabilization must be ≤±1°C.

Timed Start Accuracy: Monitor the time-based heating function continuously for 7 days; the start time error must be ≤5 minutes.

Variable Water Flow Adaptation: Simulate sudden changes in water flow (e.g., from 10 L/min to 15 L/min) and test water temperature stability (fluctuation ≤±2°C).

4. Hydraulic Pressure Burst Test Rig:

Test Items:

Static Pressure Test: Apply 1.5 times the rated pressure to the water tank (e.g., if the rated pressure is 0.8 MPa, apply 1.2 MPa) for 1 hour without any leakage.

Dynamic Hydraulic Impact Test: Conduct 100,000 cycles of pressure fluctuations (alternating between 0.1 and 1.0 MPa) to test the sealing performance of the welds and joints of the water tank.

From precise instruments in the laboratory to rigorous testing protocols, every performance aspect of the heat pump water heater is precisely defined by data. These tests are not only the "passport" for the product to leave the factory, but also the "peace of mind" for users—ensuring that an energy-efficient, stable, and safe hot water experience is delivered in every user scenario.
