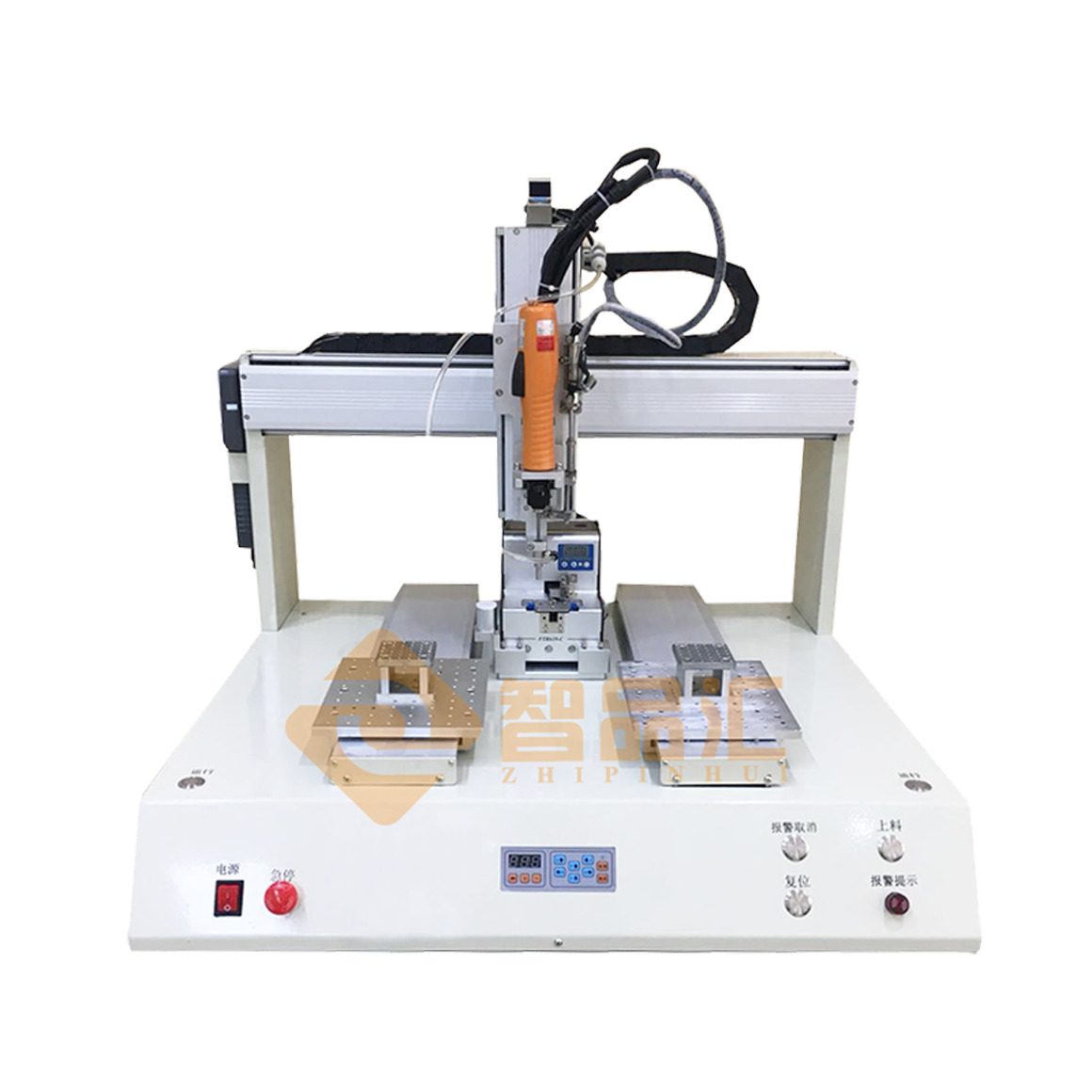

ZH-CZ-5331X装拆两用螺丝机Assembly and Disassembly Dual-purpose Screw Machine
螺丝机机器人Screw machine robot | ZH-CZ-5331X 精准4轴4-axis |
加工范围Processing range X/Y/Z/R | 300mm/300mm/100mm(可定制Customizable) |
Y轴平台最大负载Y-axis platform maximum load | 15KG |
XY/Z axis轴移动速度movement speed (mm/sec) | 0-1200 |
XYZ轴重复精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control Mode | PLC/工业控制卡PLC/Industrial Control Card |
编程方式Programming method | 触摸屏/手持编程器Touch screen / handheld programmer |
程序记录容量Program recording capacity | 999组程序999 programs |
马达系统Motor system | 步进级精密马达Stepping precision motors |
传动方式Transfer method | 高精度同步带或精密级丝杆+直线导轨。High precision synchronous belt or precision grade wire rod + linear guide rail |
电批Electric batch | 奇力速Kilews(Customers can also specify) |
输入电源Input power | AC220V(内部开关转换Internal switch conversion) |
工作环境温度Working temperature | 5-40℃ |
外形尺寸Dimensions | L680*W760*H820 |
机器重量Machine weight | 75KG |
功能和特点Functions and characteristics
1、电批带螺丝滑牙、浮锁检测功能的系统:当螺丝打不良(漏锁、滑牙、浮锁)时,系统会自动暂停并且报警。Electric batch system with screw sliding and floating lock detection function: When the screw is bad (leak lock, slide tooth, float lock), the system will automatically pause and alarm.
2、强力的吸嘴,确保每次都吸起螺丝。Strong suction nozzle, make sure to suck the screws every time.
3、螺丝通用性强,只需调整轨道,更换吸嘴、批头即可适应M0.8-M4的螺丝锁附。The screw has strong versatility, only adjust the track, replace the suction nozzle, and the batch head can adapt to the screw lock attachment of M0. 8-M4.
4、双Y轴设计、交替作业、无产品取放时间、实现生产效率最大化。Double Y-axis design, alternate operation, no product take-up time, realize maximum production efficiency.
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
