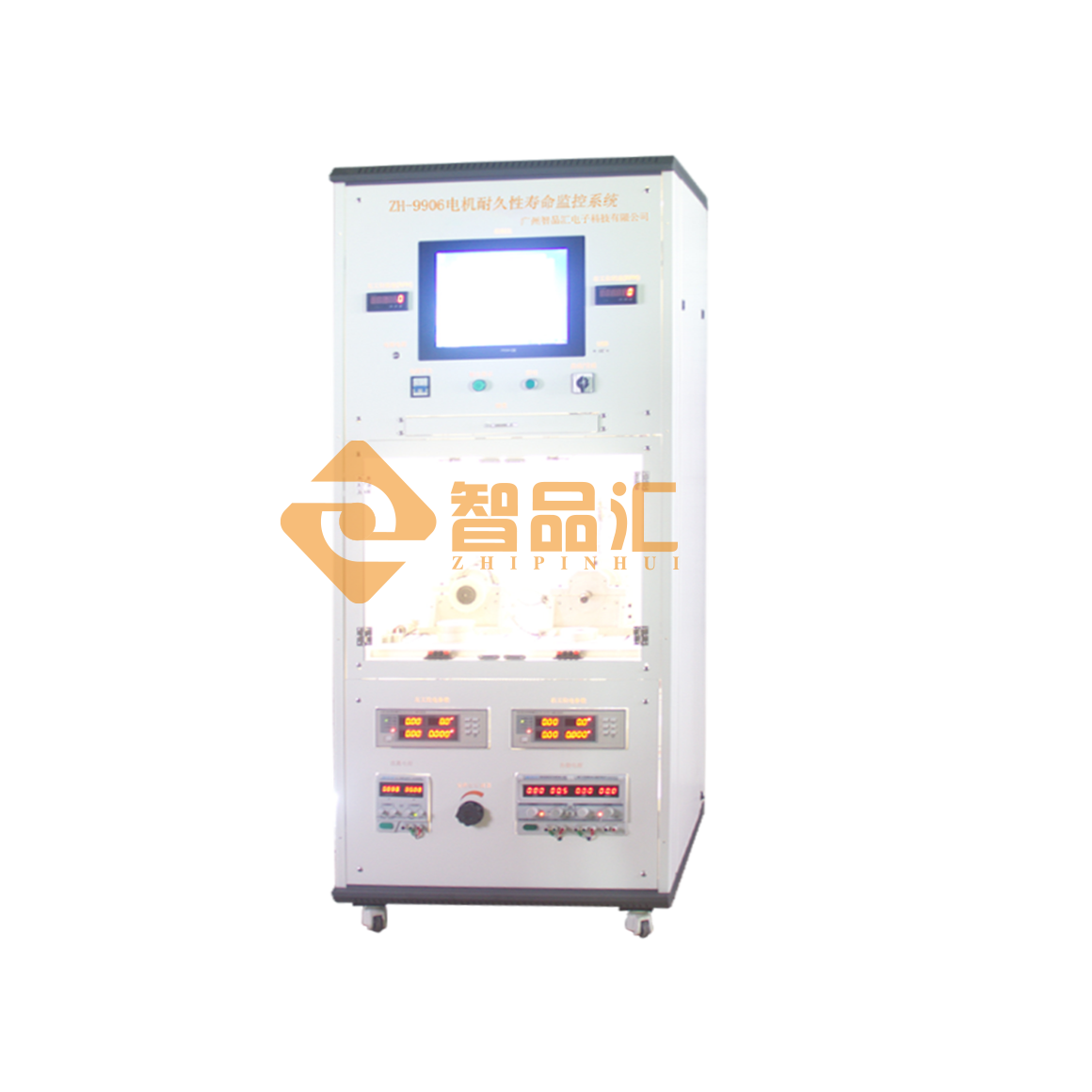

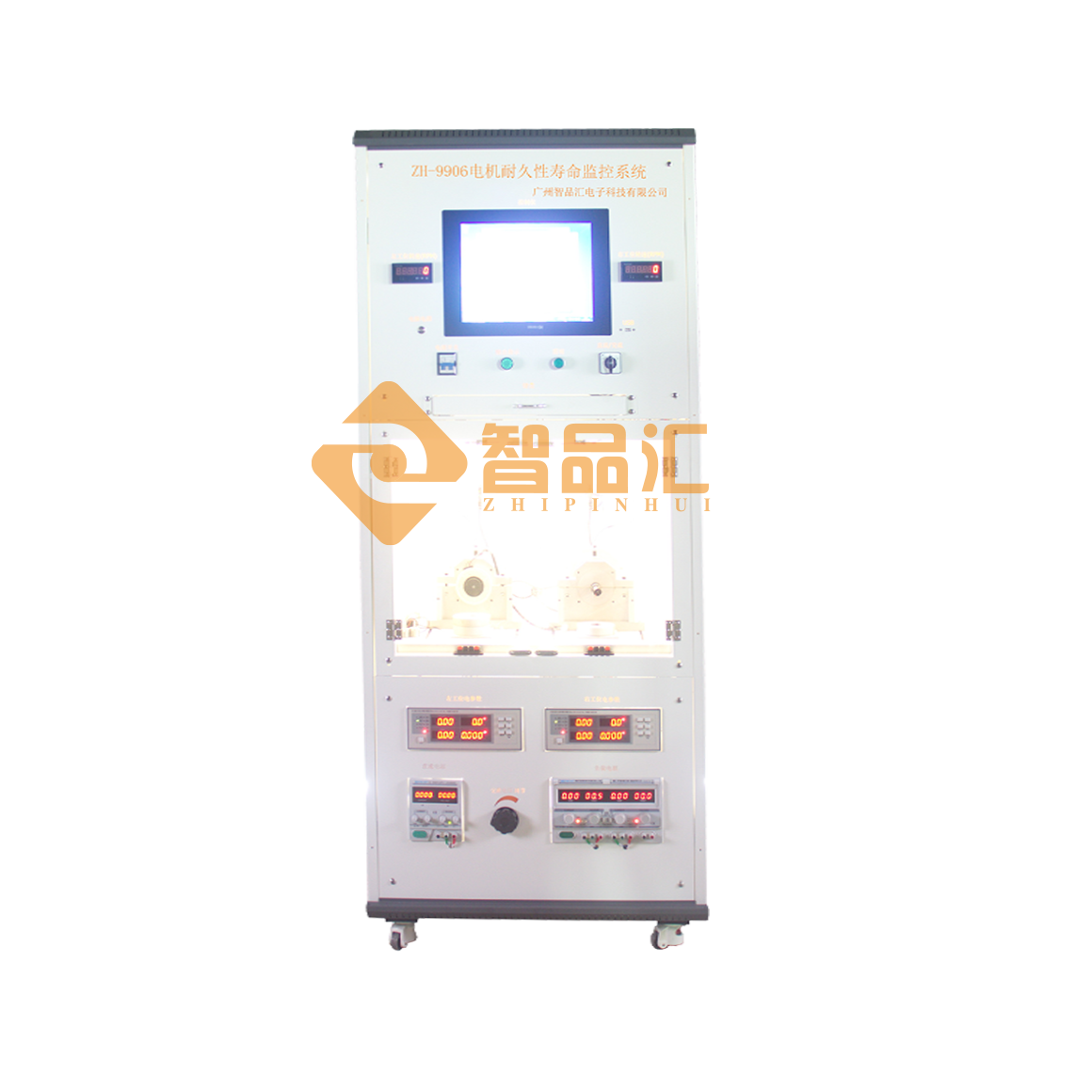

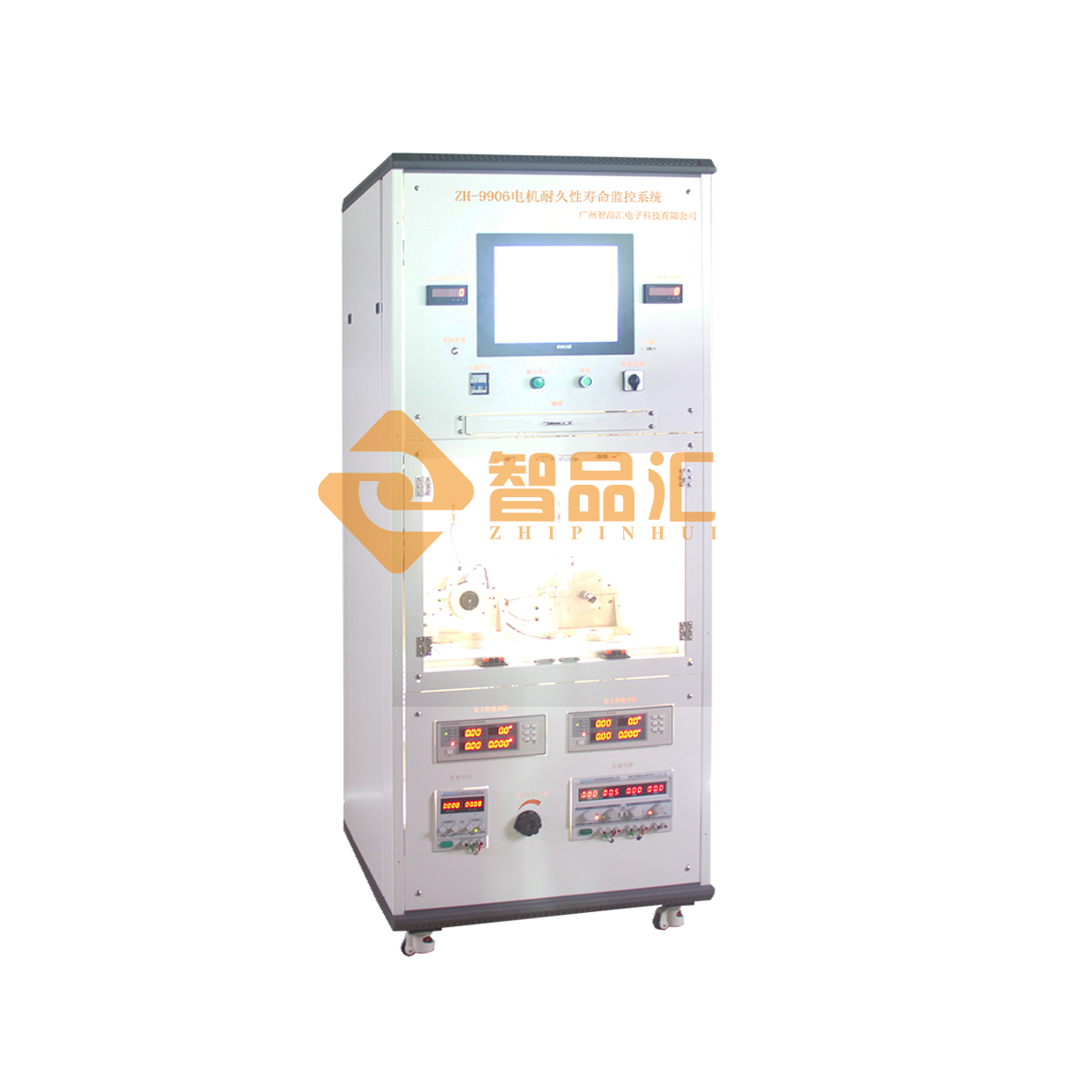

ZH-9906 Motor Durability Life Monitoring System
一、Overview:
This system is designed based on the technical terms of durability life test in GB755 Basic Technical Requirements for Rotating Motors and other standards. This equipment is used to simulate the actual working conditions of the motor life test.
Using the principle method, after increasing the voltage of the motor, a certain load is applied and it runs according to the set program. During the operation, it is assisted by electrical parameters, temperature rise, and speed tests to comprehensively examine and record the product operation status.
二、Product Parameters:
2.1 Test mode: continuous operation or on-off operation
2.2, continuous operation time setting range: 1 ~ 9999.99 hours
2.3, forward, reverse/on-off operation time setting range: 1 ~ 9999 seconds
2.4, the number of running tests is adjustable from 1 to 999999, and the test current of the tested product is detected to count. The product is damaged or the number of runs reaches the set value and the machine automatically stops
2.5, number of test channels: 2, the power of each station is not more than 100W
2.6, the test power supply can be selected from AC/DC: the test power supply voltage of the 2 stations is uniformly adjusted
2.7, AC voltage test range: 10 ~ 250V adjustable
2.8, DC voltage test range: DC5-50V adjustable
ZH-9906 Motor Durability Life Monitoring System
一、Overview:
This
system is designed based on the technical terms of durability life test
in GB755 Basic Technical Requirements for Rotating Motors and other
standards. This equipment is used to simulate the actual working
conditions of the motor life test.
Using the principle method,
after increasing the voltage of the motor, a certain load is applied and
it runs according to the set program. During the operation, it is
assisted by electrical parameters, temperature rise, and speed tests to
comprehensively examine and record the product operation status.
二、Product Parameters:
2.1 Test mode: continuous operation or on-off operation
2.2, continuous operation time setting range: 1 ~ 9999.99 hours
2.3, forward, reverse/on-off operation time setting range: 1 ~ 9999 seconds
2.4,
the number of running tests is adjustable from 1 to 999999, and the
test current of the tested product is detected to count. The product is
damaged or the number of runs reaches the set value and the machine
automatically stops
2.5, number of test channels: 2, the power of each station is not more than 100W
2.6, the test power supply can be selected from AC/DC: the test power supply voltage of the 2 stations is uniformly adjusted
2.7, AC voltage test range: 10 ~ 250V adjustable
2.8, DC voltage test range: DC5-50V adjustable
