400-816-66871. A withstand voltage tester is a test instrument used to test the insulation strength of electrical equipment and circuits. Its main function is to measure whether the electrical equipment or circuit can work normally under the specified voltage conditions and keep the insulation performance intact. The withstand voltage tester usually uses a high-voltage power supply to apply a high-voltage power signal to the electrical equipment or circuit to be tested to detect whether its insulation strength meets the standard requirements.
2.

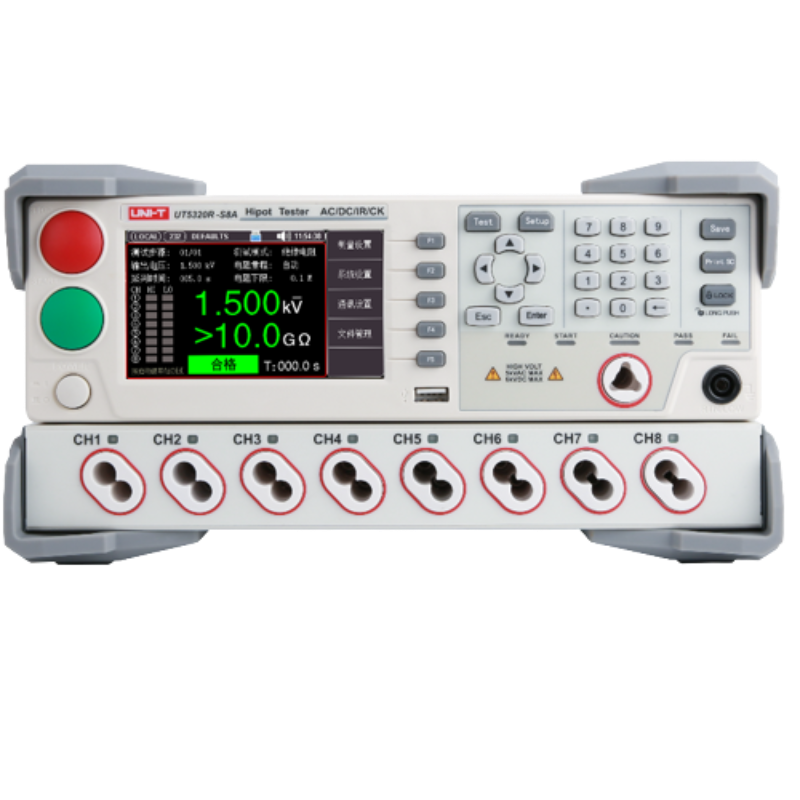

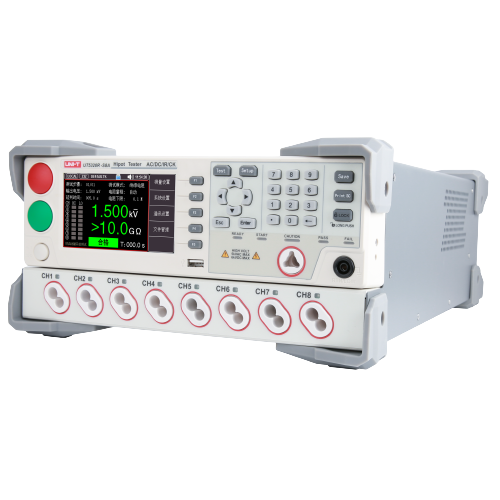

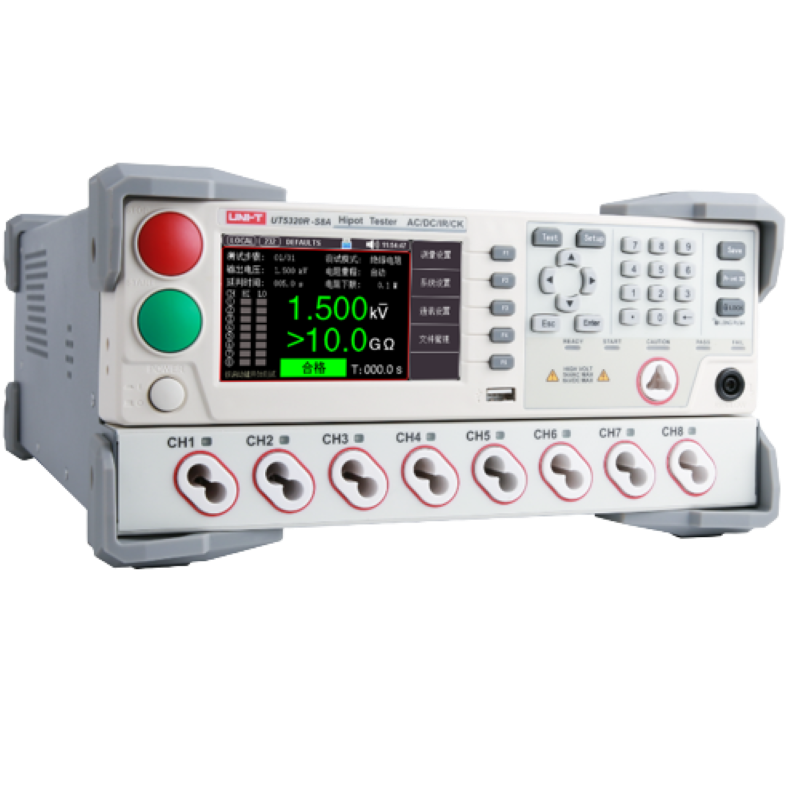

It adopts 4.3-inch true color LCD display, has 4/8 test channels, and
can quickly complete various test conditions through various physical
buttons and numeric keyboards. The body is controlled by a
high-performance 32-bit ARM microprocessor, which can measure various
safety parameters of the object under test in real time. The whole
machine adopts full isolation measures between the circuit modules, and
has strong anti-interference ability. It is an instrument that
integrates multiple test functions of electrical strength (AC/DC
withstand voltage), insulation resistance, and contact detection.
3. Working mode:
-AC withstand voltage test
-DC withstand voltage test
-Insulation resistance test
-Contact inspection test
4. Voltage range: AC50V-5000V, DC50-6000V, current range: AC0.001mA-20mA, DC0.1μA-10mA
5. Insulation resistance: 0.1MΩ– 10GΩ.
1. A withstand voltage tester is a test instrument used to test the insulation strength of electrical equipment and circuits. Its main function is to measure whether the electrical equipment or circuit can work normally under the specified voltage conditions and keep the insulation performance intact. The withstand voltage tester usually uses a high-voltage power supply to apply a high-voltage power signal to the electrical equipment or circuit to be tested to detect whether its insulation strength meets the standard requirements.
2. It adopts 4.3-inch true color LCD display, has 4/8 test channels, and can quickly complete various test conditions through various physical buttons and numeric keyboards. The body is controlled by a high-performance 32-bit ARM microprocessor, which can measure various safety parameters of the object under test in real time. The whole machine adopts full isolation measures between the circuit modules, and has strong anti-interference ability. It is an instrument that integrates multiple test functions of electrical strength (AC/DC withstand voltage), insulation resistance, and contact detection.
3. Working mode:
-AC withstand voltage test
-DC withstand voltage test
-Insulation resistance test
-Contact inspection test
4. Voltage range: AC50V-5000V, DC50-6000V, current range: AC0.001mA-20mA, DC0.1μA-10mA
5. Insulation resistance: 0.1MΩ– 10GΩ.
