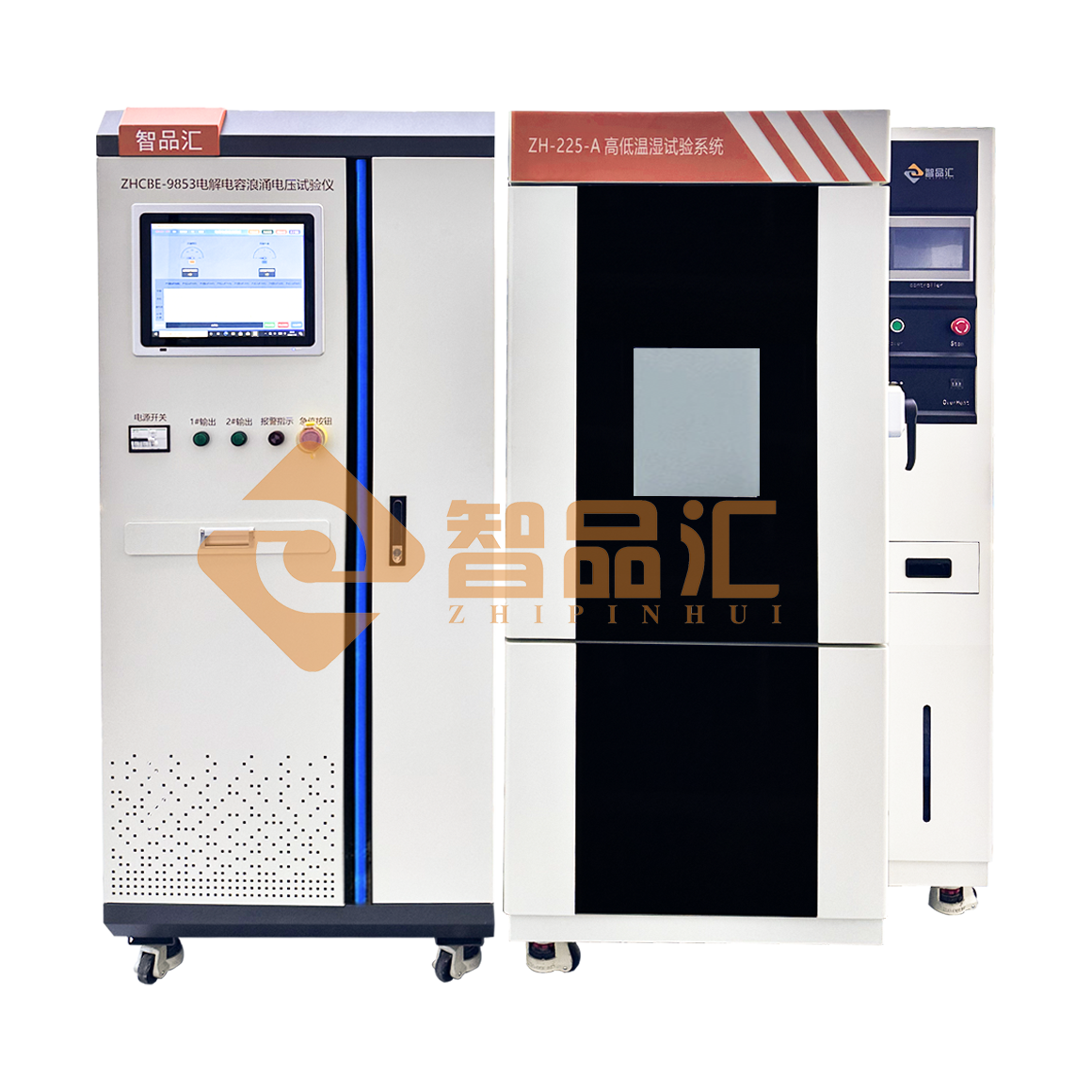

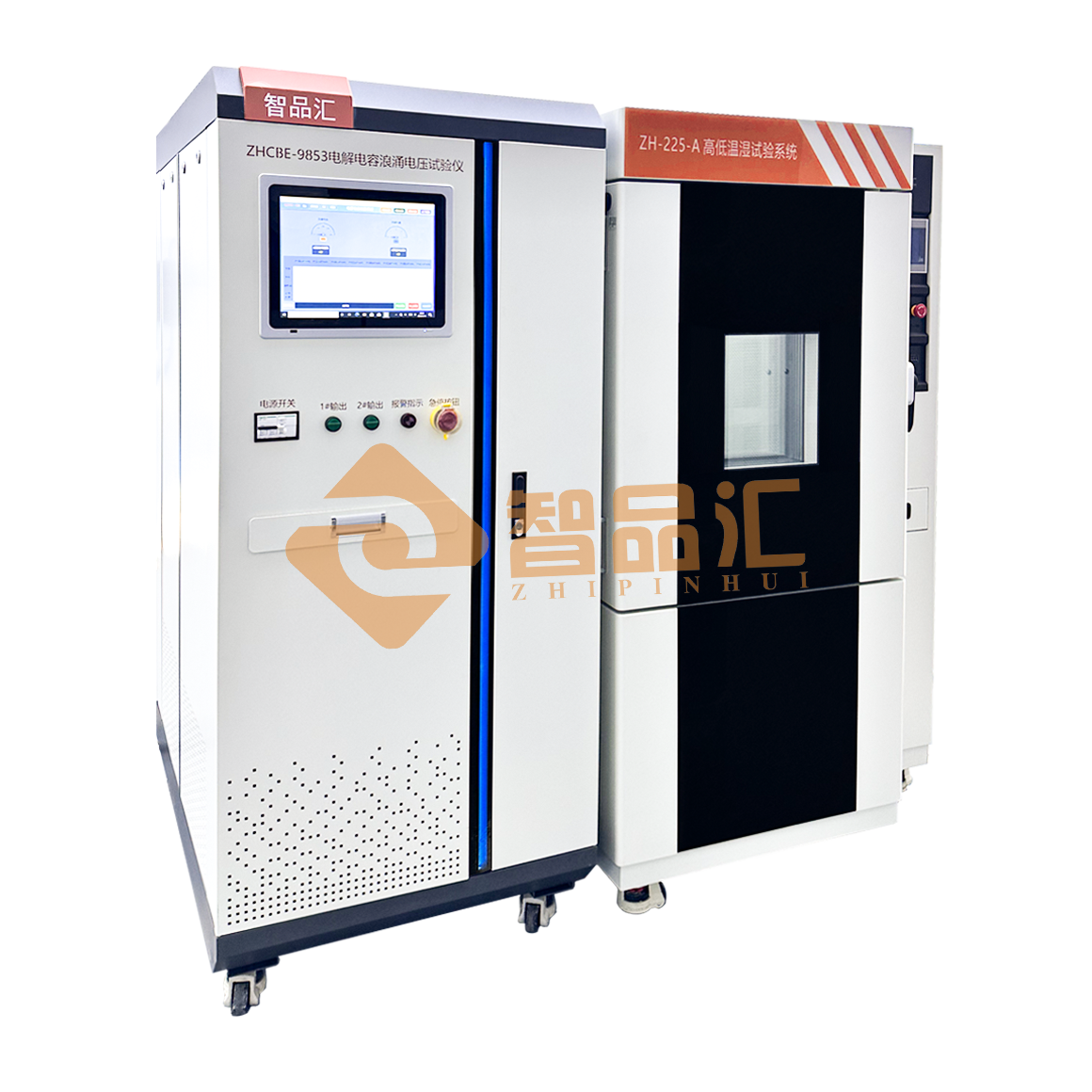

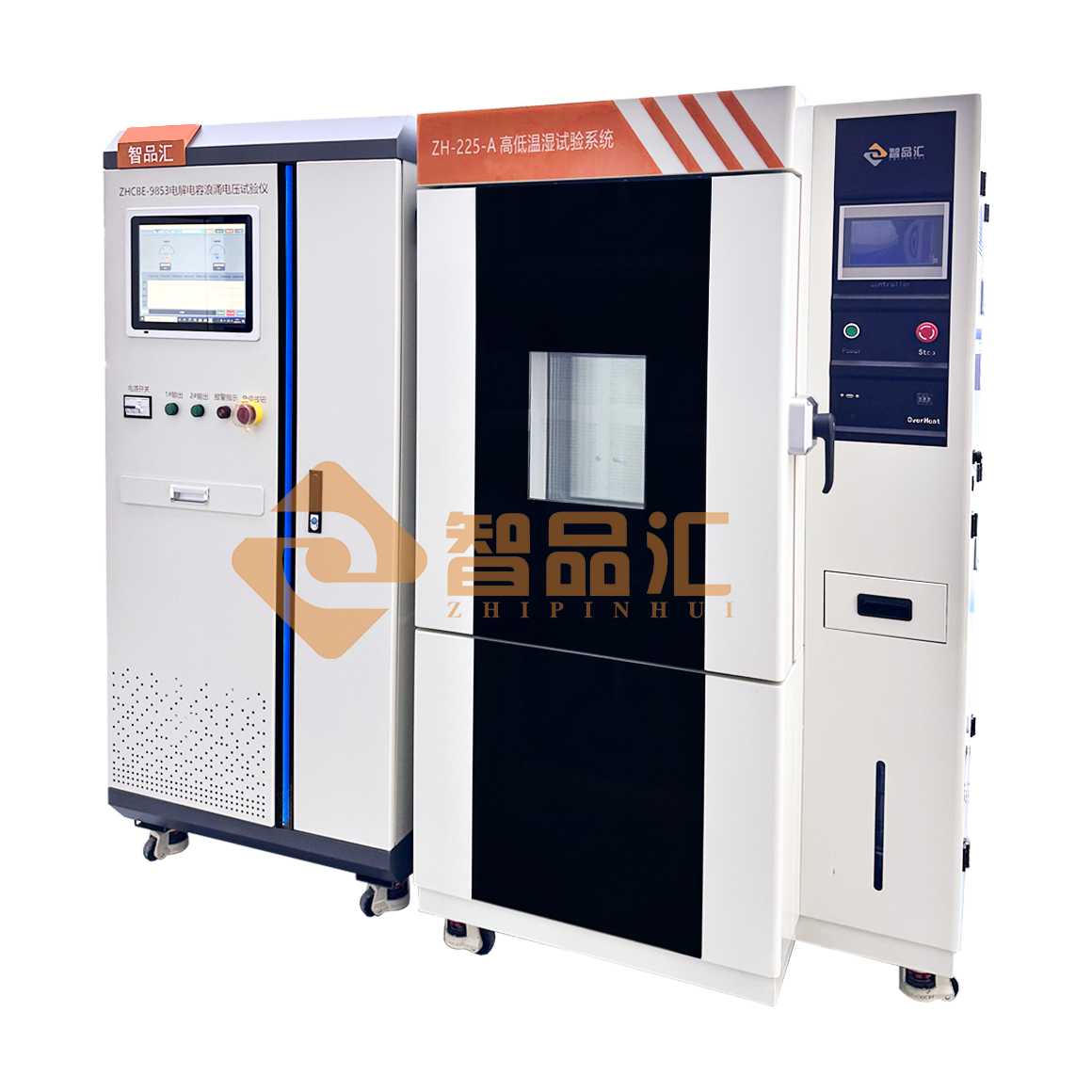

ZHCBE-9853 Electrolytic Capacitor Surge Voltage Tester
1. GJB 2283A-2014 General Specification for Plate Solid Electrolyte Tantalum Fixed Capacitors
GJB 63B-2001 General Specification for Electrolyte Tantalum Capacitors with Reliability Indicators
GJB 733B-2011 Surge Voltage Clause in the General Specification for Non-Solid Electrolyte Tantalum Fixed Capacitors
with Failure Rate Classes
2. Test Voltage Output Range: 6～600VDC, Touchscreen Setting
3. Test Voltage Display Resolution: 0.1V
4. Test Voltage Display Accuracy: ±0.5%±3LSB
5. Test Current Output Range: 0.3～4A, Touchscreen Setting
6. Test Current Display Resolution: 0.01A
7. Test Current Display Accuracy: ±0.5%±3LSB
8. Number of Test Stations per Channel: 4, 8 stations in total for 2 channels
9. Operating Mode of Each Station in Each Channel: Synchronous Operation
10. Charge/Discharge Time Setting Range per Channel: 0.5~ 999.9S; Accuracy: ±1%
11. Preset number of test cycles per channel: 1 to 9,999,999 times; Accuracy: ±2 times
13. High-temperature chamber temperature range: -40~150℃, humidity range: 35~95%RH
14. Automatic measurement of the capacity, loss, and leakage current of the tested sample before and after the test.
ZHCBE-9853 Electrolytic Capacitor Surge Voltage Tester
1. GJB 2283A-2014 General Specification for Plate Solid Electrolyte Tantalum Fixed Capacitors
GJB 63B-2001 General Specification for Electrolyte Tantalum Capacitors with Reliability Indicators
GJB 733B-2011 Surge Voltage Clause in the General Specification for Non-Solid Electrolyte Tantalum Fixed Capacitors
with Failure Rate Classes
2. Test Voltage Output Range: 6～600VDC, Touchscreen Setting
3. Test Voltage Display Resolution: 0.1V
4. Test Voltage Display Accuracy: ±0.5%±3LSB
5. Test Current Output Range: 0.3～4A, Touchscreen Setting
6. Test Current Display Resolution: 0.01A
7. Test Current Display Accuracy: ±0.5%±3LSB
8. Number of Test Stations per Channel: 4, 8 stations in total for 2 channels
9. Operating Mode of Each Station in Each Channel: Synchronous Operation
10. Charge/Discharge Time Setting Range per Channel: 0.5~ 999.9S; Accuracy: ±1%
11. Preset number of test cycles per channel: 1 to 9,999,999 times; Accuracy: ±2 times
13. High-temperature chamber temperature range: -40~150℃, humidity range: 35~95%RH
14. Automatic measurement of the capacity, loss, and leakage current of the tested sample before and after the test.
