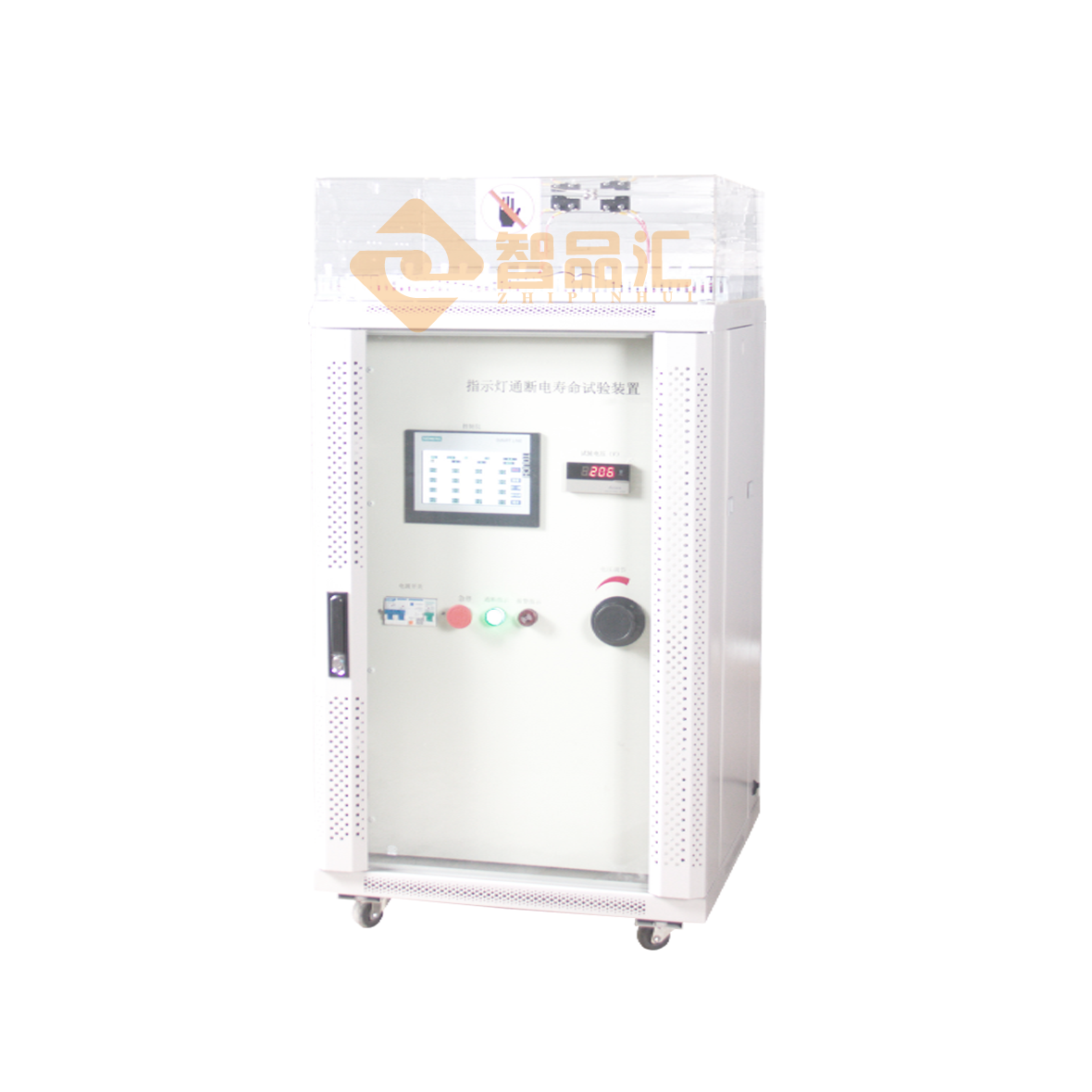

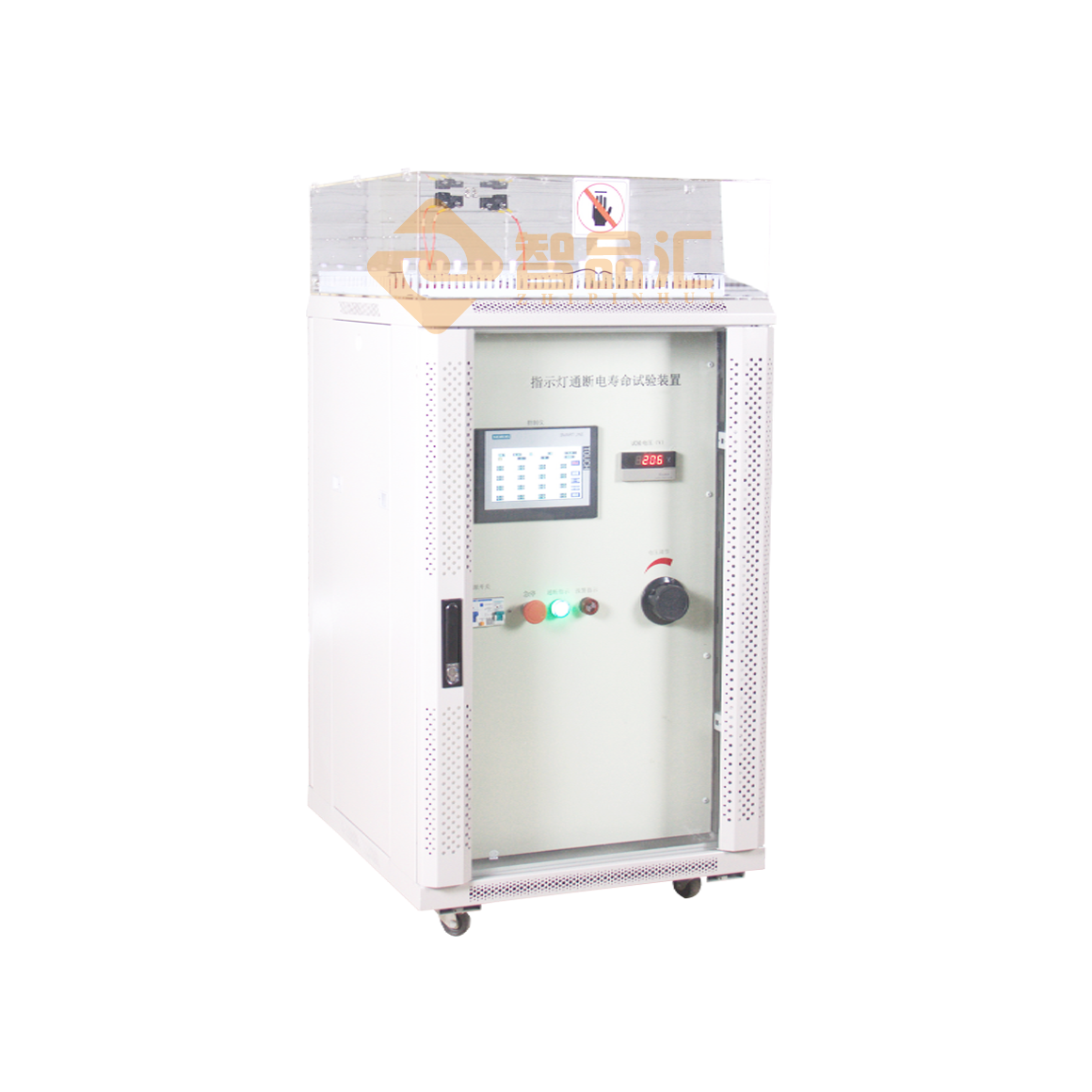

RXZS9532 indicator light on/off life test device

1. Overview
The indicator light power-on and power-off tester is manufactured according to the customer's technical requirements and relevant national standards. The equipment is beautiful and generous. Various states and parameters during measurement can be read directly on the panel display without confusion. It is widely used by various users such as manufacturers, laboratories, quality inspection departments, etc. to test the life of different types of indicator lights when they are powered on and off.
2. Technical parameters

2.1. Power supply requirement of equipment: AC220V, total power 1KVA, the equipment is equipped with a voltage-stabilized power supply

2.2. Power on and off times: 1 to 1 million times (settable);

2.3. Power on and off time: 1 second to 99 hours 59 minutes 59 seconds; (settable)

2.4. The life of internal contacts is greater than 107 times;

2.5. Internal relay capacity: 250V/20A, long life, no contacts

2.6. Test AC voltage range: 0 to 250V adjustable

2.6.1. Voltage, current, power/power factor/frequency can be monitored at the same time;

2.6.2. Measurement accuracy 0.5 level;

2.7. Number of workstations: 32 workstations, 32-way product tests can be carried out at the same time, and the switch life of a single product can be judged and memorized; the power on and off time can be set in any range; the data is automatically saved when the power is off, and the work continues automatically when the call comes; The switch life of the 32-way indicator light can be checked at any time;
2.8. Sample type (provided by the customer, currently one specification is used), the indicator light is AC 220V, and the indicator plug is 6.3*0.8 plug.
2.9. The system adopts PLC control, touch screen display and operation
2.10. The system uses the current upper and lower limits to automatically determine the test status of the test product. When abnormal, the counting of the number of times of the station is stopped or, and the alarm is displayed, and other stations are tested normally;
2.11. The data has a power-off protection function. After powering on, press the start button to continue the test;
2.12. The test fixture is designed according to a test product size provided by the user (the test product is provided by the customer) and is used for the installation of 32-way products
2.13. The equipment has short circuit, overload and leakage protection functions;
2.14. The overall size of the equipment: about 600 wide, 600 deep, 1000 high, weighing about 100kg, equipped with casters with brakes for easy movement;
