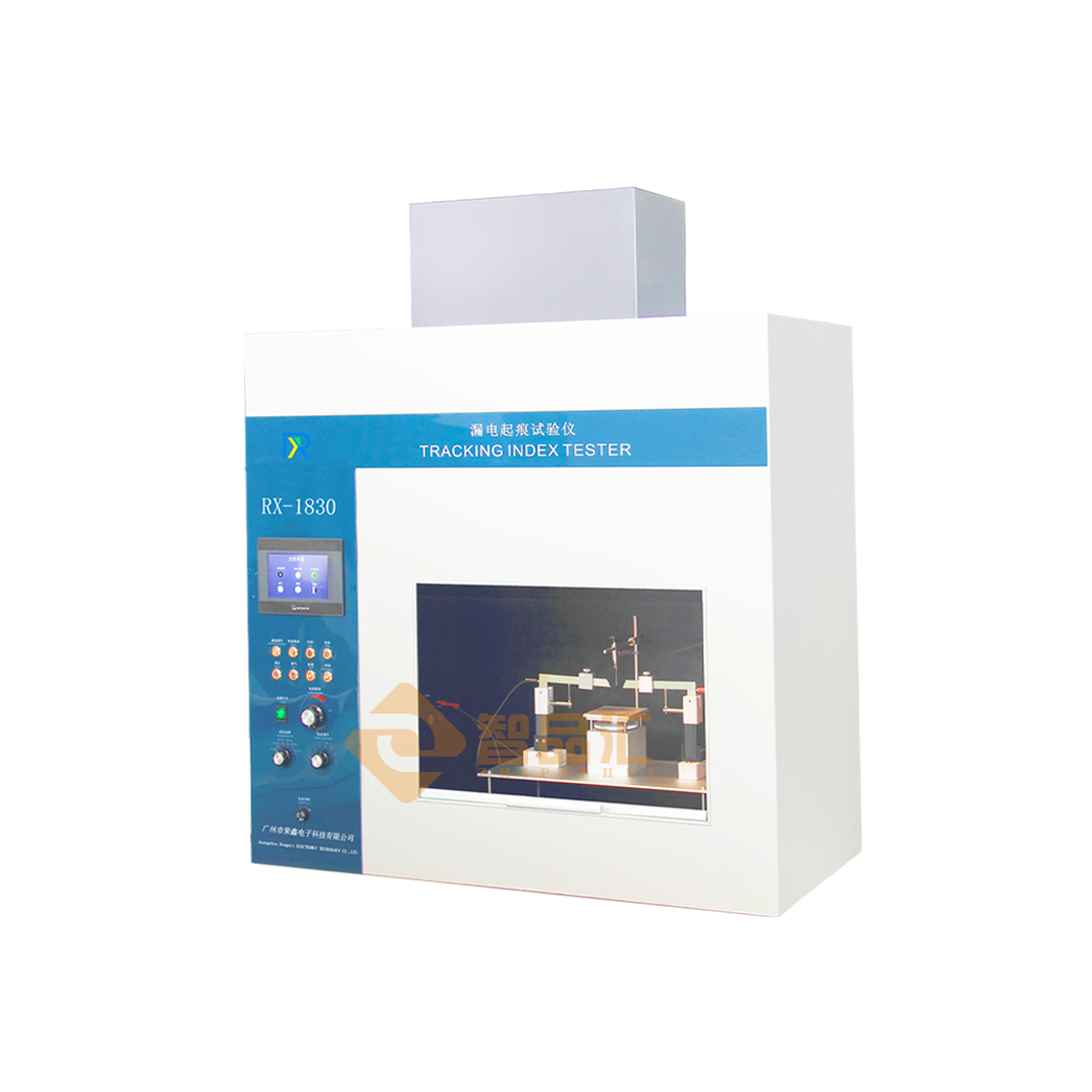

RX1830 Leakage Traceability Tester

Tracking test is a simulation test item specified in GB 4706.1 GB 4207 GB/T6553-2003 IEC60112: 2003 "Determination Method of Tracking Resistance Index and Relative Tracking Index of Solid Insulating Materials", UL 746A, ASTM D 3638-92, DIN 53480 and other standards.

Tracking test is to apply a certain voltage between platinum electrodes of specified size (2mm × 5mm) on the surface of solid insulating materials and drip a specified drop volume of contaminated liquid (0.1% NH 4 CL) at a fixed height (35mm) at a fixed time (30s) to evaluate the tolerance of the surface of solid insulating materials under the combined action of electric field and contaminated medium, and to determine its comparative tracking index (CT1) and tracking resistance index (PT1).

The tracking index tester is suitable for the research, production and quality inspection departments of lighting equipment, low-voltage electrical appliances, household appliances, machine tool appliances, motors, power tools, electronic instruments, electrical instruments, and information technology equipment. It is also suitable for insulating materials, engineering plastics, electrical connectors, and accessories industries.

Electrode material: test electrode - platinum, electrode rod - silver

Electrode size: (2mm ± 0.1mm) × (5mm ± 0.1mm) × (40mm ± 5mm), platinum electrode 12mm, 30°±2° slope;

Electrode distance: 4.0mm ± 0.01mm, angle 60°±5°;

Electrode pressure: 1.00N±0.001N;

Test solution resistance: A solution 0.1% NH4Cl, 3.95±0.05Ωm, B solution 1.98±0.05Ωm;

Droplet volume: 20 drops 0.380g ~ 0.480g, 50 drops 0.997g ~ 1.147g (fine-tunable);

Droplet height: 35mm ± 5mm (adjustable );

Drop time: 30s±0.1s (better than the standard) (digital display, presettable), 50 drops time 24.5min±2min;

Drop count: 1~9999 (digital display, presettable);

Test wind speed: 0.2m/s (new standard); Test voltage 100V~600V (25V division, adjustable);

Power supply voltage drop: 8% at 1.0A±0.1A;

Tracking judgment: 0.50A±10%, 2.00s±10%;

Dimensions: width 1120mm × depth 520mm × height 1350mm, exhaust aperture Φ100mm;
