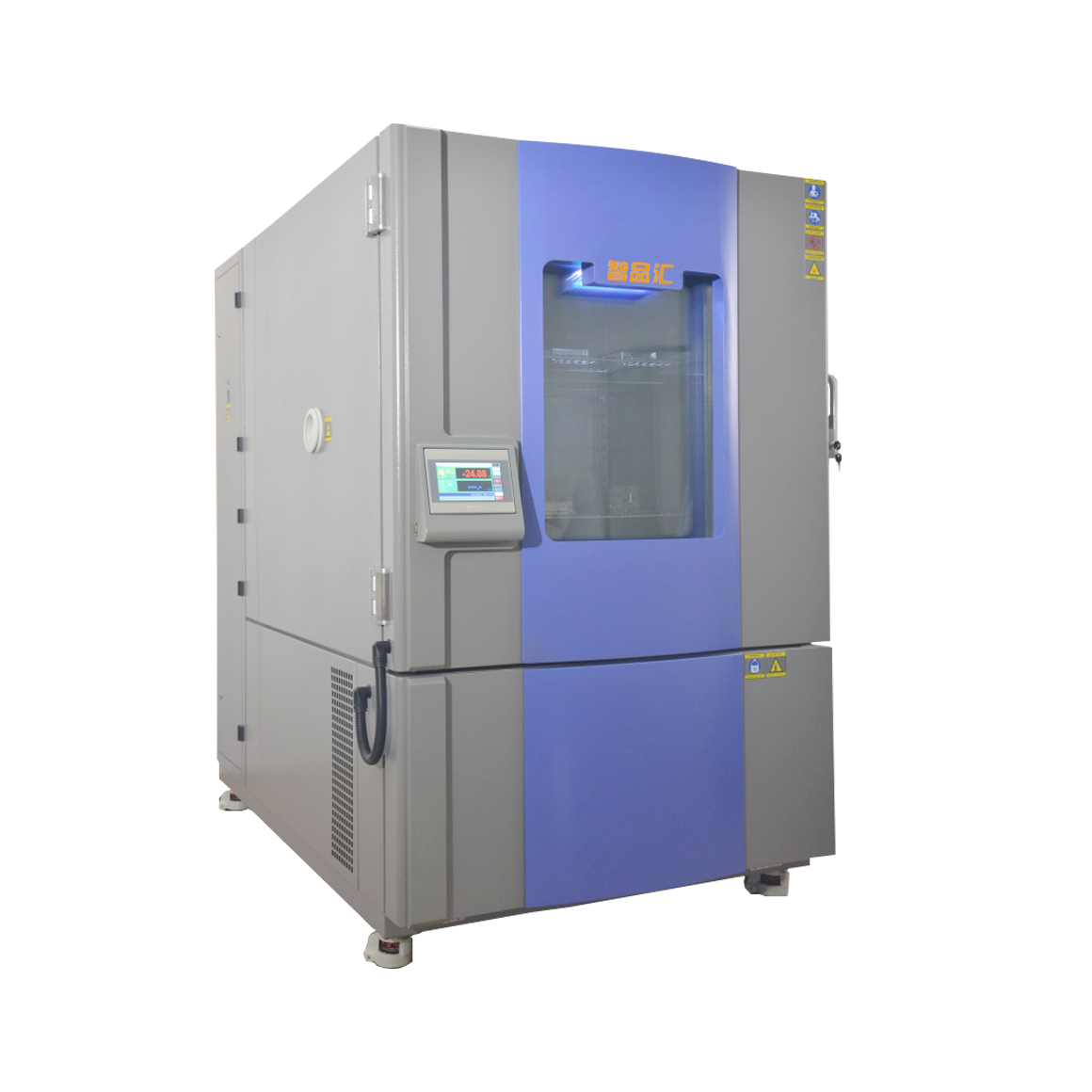

ZHGD-80 High and Low Temperature Alternating Damp Heat Test Chamber

Features

l Adopting the original Korean "TEMI" touch screen programmable controller, the temperature and humidity control mode is fixed value operation and program operation, 120 groups of programs can be compiled, each group has 100 segments, and the communication method is RS232 or RS485.

l The inner material of the test chamber is high-grade mirror stainless steel, the outer shell is made of SUS304 stainless steel or A3 steel plate, and the surface is made of electrostatic spraying.

l The sealing strip of the box door is made of high and low temperature resistant silicone rubber material with good sealing performance.

l Adopting shallow groove humidification method, the humidification water adopts automatic water replenishment.

l Roommate observation window and lighting are convenient for observing the situation of the samples in the test chamber.

l A variety of safety protection measures to ensure the safe operation of the equipment.

Specifications and Technical Parameters

Model	ZHGD-80	ZHGD-80A	ZHGD-80B	ZHGD-80C	ZHGD-80D
WxhxD(mm)	950×930×1620	1050×1070×1870	1150×1430×1970	1350×1430×2120	1500×1430×2120
Temperature range	－20℃～130℃(150℃)/B型、－40℃～130℃(150℃)/C型－60℃～130℃(150℃)/D型、－70℃～130℃(150℃)/E型
Temperature range	20%～98%RH
Temperature unifomity rate	±2℃
Temperatur fluctuation rate	±0.5℃
Temperatur uniformity rate	±2%RH
Heating up/Cooling down speed rate	0.7～1℃/min(3℃/min、5℃/min、10℃/min)
Control system	It adopts” TEMI” touch screen programmable controller,which is imported with original packing from Korea;humidity & temperature control mode is constant value operation or program operation;it can make up 120groups of programs,with 100 channels for each group;the communication mode is RS232 or RS485 and the communication speed rate is 9.6KBPS
Sensor	0.01 The imported appliances are adopted
Electronic control system	The imported appliances are adopted
Refrigeration system	The imported French Taikang Compressor is adopted.
Humidification system	T河316L stainless steel chip cooling heater is adopted
Humidification system	Shallow groove humidification method is adopted,which is able to control the humidity quickly & stably;automatic water filling is adopted for the humidification water so that there is no need for manpower to fill water
Test box body	The inner box is the advanced mirror stainless steel;and the outer box is made of SUS304 stainless steel or A3 steel plate,the surface of which is equipped with electrostatic painting
Thermal insulation material	The high density of super-thinness glass fiber wool is adopted
Observation window	The anti-fog observation window and illumination inside the test box can be observed
Security protection	Multiple security protection measures are adopted to make sure the safety operation of the equipment
Power supply	AC380V±5%.50HZ
Standard configuration	One 50mm test hole,two sample test racks

ZHGD-80 High and Low Temperature Alternating Damp Heat Test Chamber

Features

l The inner material of the test chamber is high-grade mirror stainless steel, the outer shell is made of SUS304 stainless steel or A3 steel plate, and the surface is made of electrostatic spraying.

l The sealing strip of the box door is made of high and low temperature resistant silicone rubber material with good sealing performance.

l Adopting shallow groove humidification method, the humidification water adopts automatic water replenishment.

l Roommate observation window and lighting are convenient for observing the situation of the samples in the test chamber.

l A variety of safety protection measures to ensure the safe operation of the equipment.

Specifications and Technical Parameters

Model	ZHGD-80	ZHGD-80A	ZHGD-80B	ZHGD-80C	ZHGD-80D
WxhxD(mm)	950×930×1620	1050×1070×1870	1150×1430×1970	1350×1430×2120	1500×1430×2120
Temperature range	－20℃～130℃(150℃)/B型、－40℃～130℃(150℃)/C型－60℃～130℃(150℃)/D型、－70℃～130℃(150℃)/E型
Temperature range	20%～98%RH
Temperature unifomity rate	±2℃
Temperatur fluctuation rate	±0.5℃
Temperatur uniformity rate	±2%RH
Heating up/Cooling down speed rate	0.7～1℃/min(3℃/min、5℃/min、10℃/min)
Control system	It adopts” TEMI” touch screen programmable controller,which is imported with original packing from Korea;humidity & temperature control mode is constant value operation or program operation;it can make up 120groups of programs,with 100 channels for each group;the communication mode is RS232 or RS485 and the communication speed rate is 9.6KBPS
Sensor	0.01 The imported appliances are adopted
Electronic control system	The imported appliances are adopted
Refrigeration system	The imported French Taikang Compressor is adopted.
Humidification system	T河316L stainless steel chip cooling heater is adopted
Humidification system	Shallow groove humidification method is adopted,which is able to control the humidity quickly & stably;automatic water filling is adopted for the humidification water so that there is no need for manpower to fill water
Test box body	The inner box is the advanced mirror stainless steel;and the outer box is made of SUS304 stainless steel or A3 steel plate,the surface of which is equipped with electrostatic painting
Thermal insulation material	The high density of super-thinness glass fiber wool is adopted
Observation window	The anti-fog observation window and illumination inside the test box can be observed
Security protection	Multiple security protection measures are adopted to make sure the safety operation of the equipment
Power supply	AC380V±5%.50HZ
Standard configuration	One 50mm test hole,two sample test racks
