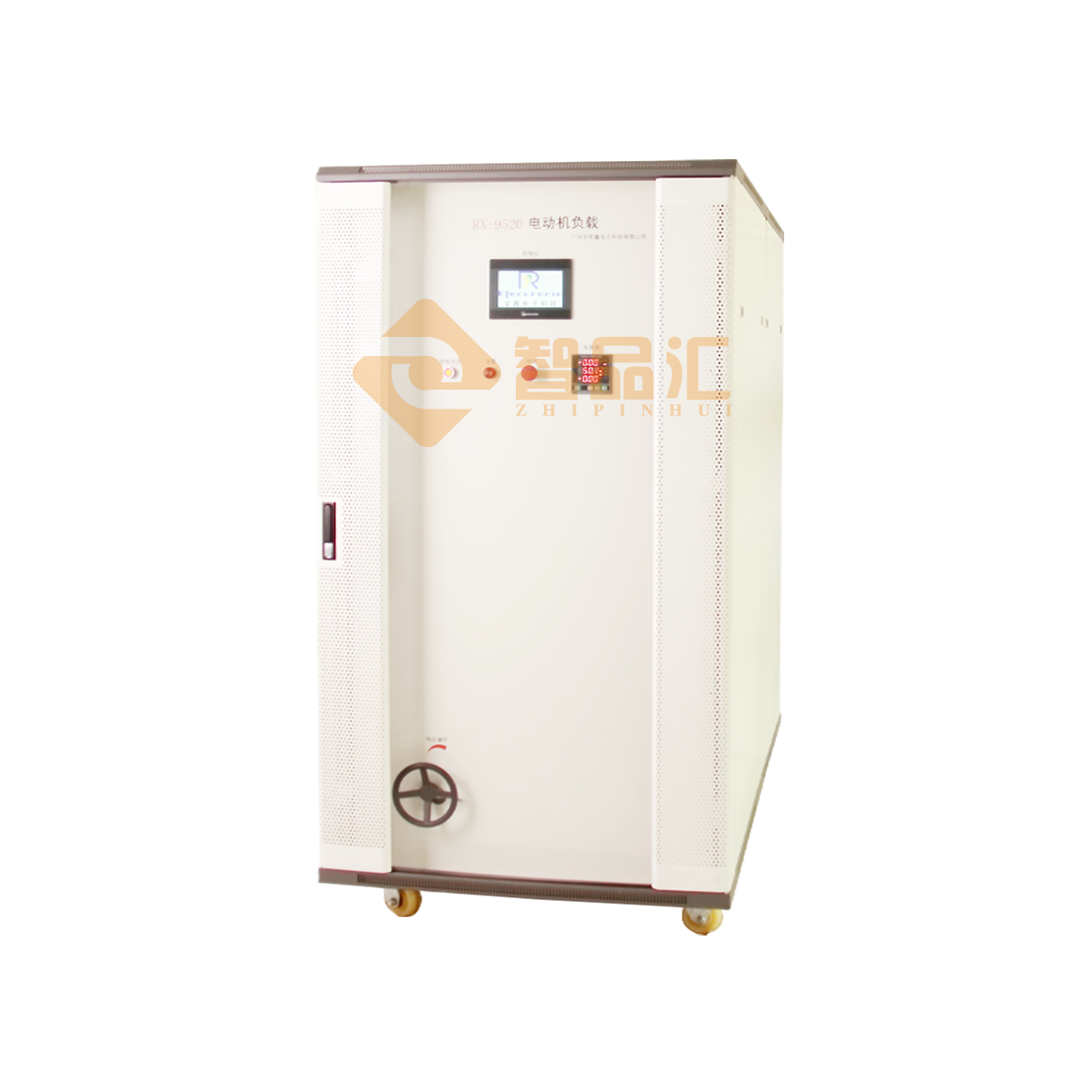

RX-9521 motor load cabinet

1. Overview
Designed according to GB15092.1-2003 and IEC61058-2000, UL61058 standard test equipment switch requirements for motor load
2. Technical parameters
2.1. Equipment input power: AC250V 50Hz
2.2. Output: single circuit, single phase
2.3. Test voltage 125V~300V (maximum load voltage is 280V)
2.4. Motor disconnection load
2.4.1. Test current 1~25A adjustable
2.4.2. Power factor cosj 0.3~0.98
2.4.3. Maximum load on time: MAX 5S Load on-off ratio: 1:3
2.5. Motor on load
2.5.1. Test 6-150A adjustable 0.5≤cosj≤0.6

2.5.2, Switch-on time: 50～100mS Peak current

2.6, When used as a resistive inductive load

2.6.1, Test current: 1～150A adjustable

2.6.2, Power factor: 0.3≤cosj≤0.98

2.6.3, Switch-on time: MAX 5S On-off ratio: 1:3

2.7, The load adopts the series connection of resistance and iron core inductance, and the solid-state relay is used to switch on and off the load during the test

2.8, Voltage and current digital display accuracy ±0.5%FS;

2.9, Power factor digital display accuracy ±0.05

2.10, Set protection device and over-temperature sound and light alarm indication

2.11, Maximum power consumption of equipment: 54KVA (instantaneous)

2.12, 300V can only be unloaded! The load can only guarantee 280V, but the standard requires 275V

2.13, can be used as resistive, motor, inductive load

2.14, two-way load output function: disconnect load, connect load can be output separately, for other two-way tests except motor type switch

2.15, according to Article 17 of GB15092.1
