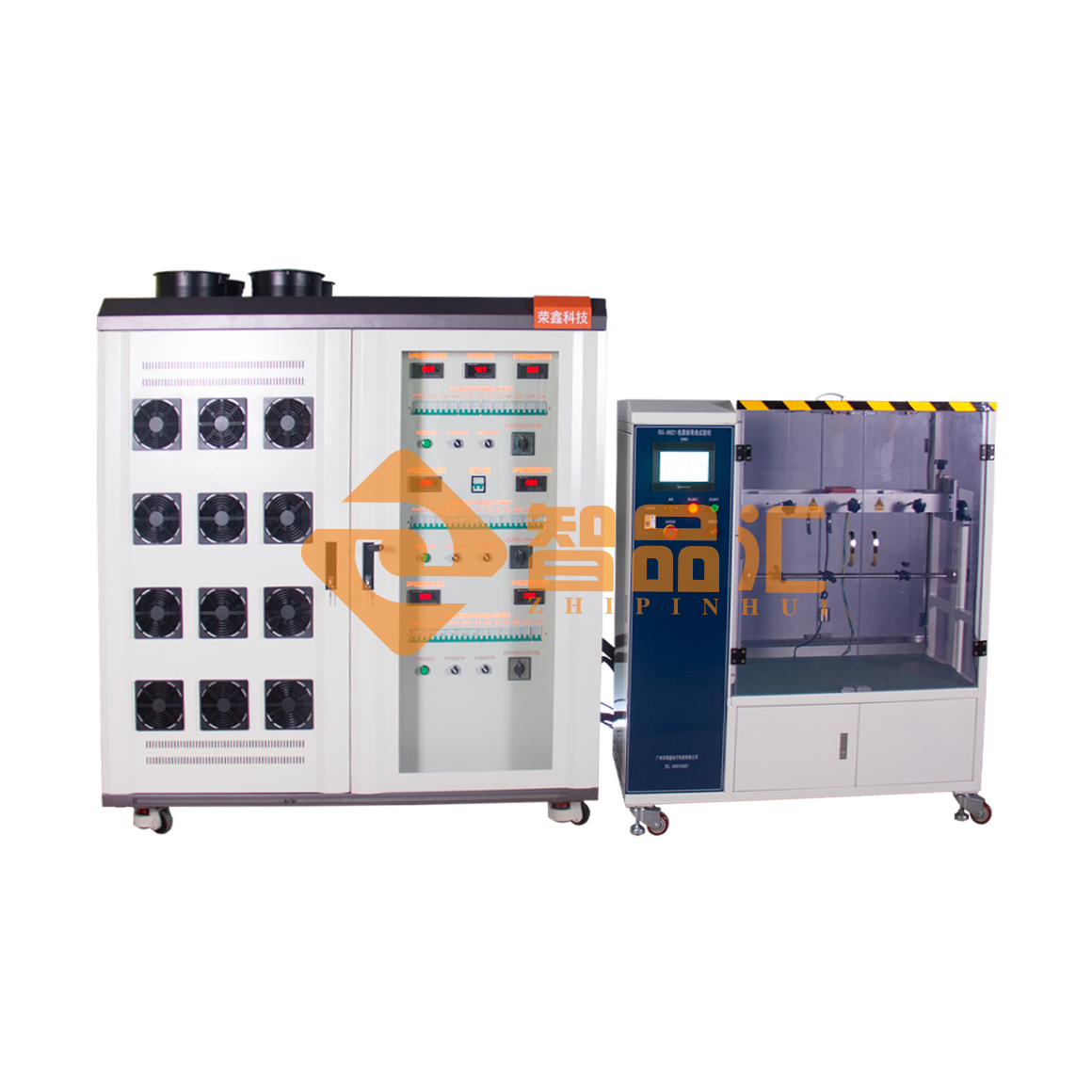

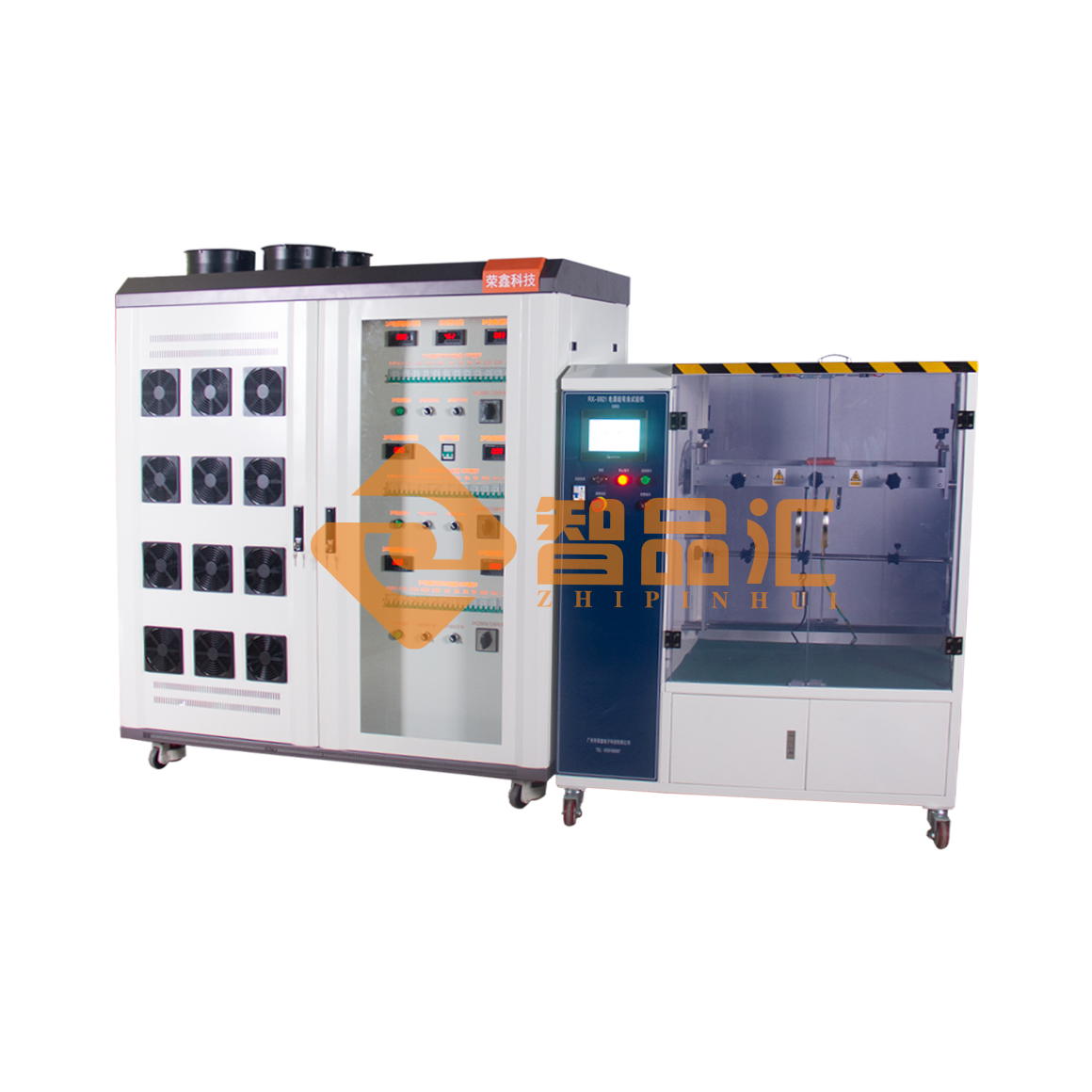

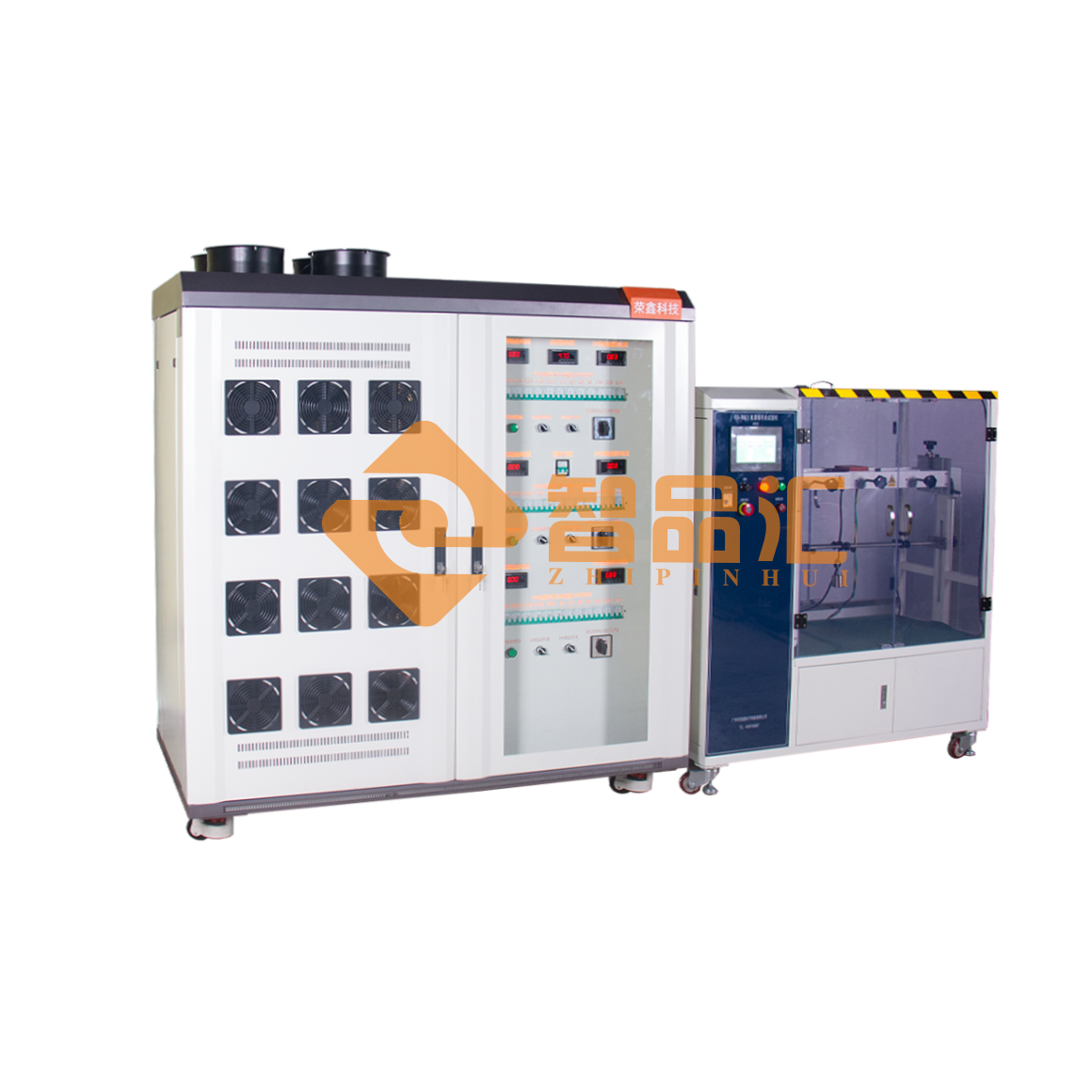

RX9921 power cord bending load testing machine

1. Product Overview

This testing machine is designed and manufactured in accordance with UL540, IEC72000 UL817, IEC60884, VDE0602, GB2009, APPLE and other standards. It is mainly used to test the bending of plug power cords, household appliance power cords and other related standards. It is suitable for relevant manufacturers and quality inspection departments to test small household appliances. Such as hair dryers, hairpins and other electrical connections, wires and wires, etc. for weight rotation and twisting tests. This machine uses a high-end color touch screen with full Chinese display, which is easy to use. It can adjust the CNC mode, angle, speed, number of times, starting point, signal on and off, and signal alarm prompts. The hardware uses Panasonic servo motor + PLC + color touch shielding, with high precision, low noise and long life. It can be connected to the power cord bending machine load box for load testing.

2. Technical parameters

1. Power supply AC220V/50Hz;

2. Bending angle: 10°~90° on each side, adjustable at any angle;

3. Bending rate: 10~60rpm (frequency conversion), default 60 times/min;

4. Load weight: 1 each of 5N, 10N, 20N, and 25N as standard for each station;

5. Test station: 3 stations, with 3 sets of fixtures;

6. Electrical load parameters: 3 independent adjustable loads, AC0~40A adjustable, AC0~300V adjustable (manual adjustment)

7. Number of tests: one total counter, 3 sub-counters, adjustable from 0 to 999999;

8. Mechanical principle: The motor drives the crank slider on the reduction box to reciprocate

9. Short circuit prompt, poor contact prompt, disconnection indication: Φ25 red indicator light is displayed and the machine stops automatically, and the corresponding workstation of the unqualified is displayed;

10. Dimensions: about L1300mm*W800mm*H1500 mm;

10. Control mode: PLC control;

11. Operation mode: touch screen;

12: Sample fixing device: The equipment provides 10A, 16A corresponding three-hole and two-hole sockets, and 25A, 32A corresponding three-hole sockets. Each workstation is equipped with three, namely 6A, 10A, single-phase two-pole with grounding 10A, 16A, single-phase two-pole with grounding 25A, 32A couplers

13. Current detection: Three independent current detection circuits are built in to ensure the detection of disconnection function when the sample uses an external load.

14. Communication requirements: Provide a communication port, and test data can be downloaded through UBS;

III. Usage

When doing the conduction test, install the sample on the swing fixture, connect the sample to the circuit, hang the corresponding weight on the other end of the sample, set the deflection angle, the number of tests, adjust the speed to the required speed, and then start the operation. When the sample breaks, the corresponding sub-counter stops working, and the corresponding indicator light goes out. The current display value is the number of tests for the sample. When the total count is reached, the device will automatically stop.
