ZH-I02 Standard Test Instructions

1. Product Overview

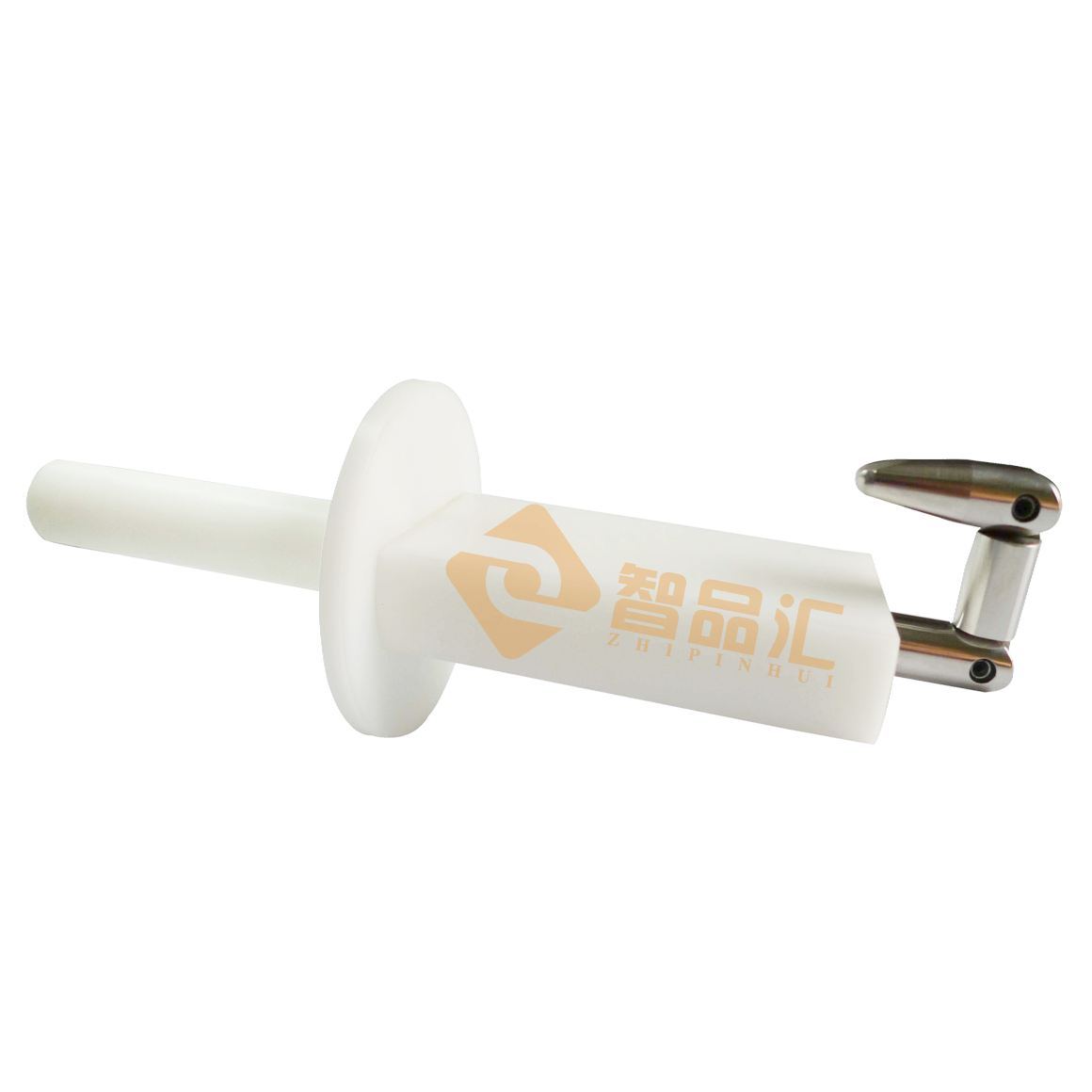

It complies with IEC61032 Figure 2 Test Tool B, GB2099, GB4208IP2, GB4706, GB4943, GB3883 Figure 1, GB/T16842, IEC60950 Figure 2A, IEC60884, IEC60335, UL507, EN60529 Figure 1 and UL1278 Figure 8.4, etc., and is used for protection inspection against finger touch or electric shock. The finger of the standard test finger simulates a human finger, and is composed of a finger, a middle finger, a finger seat, and an insulating handle. It has two movable joints that can be bent within 90°. Customizable: The end of the handle is equipped with a pluggable banana plug and a terminal block for anti-electric shock test, or an M6 threaded hole is opened at the end of the handle (for use with a push-pull force gauge) for shell protection test.

2. Main specifications and corresponding technical parameters: 50mmX80mm

Parameters/Model	ZH-I02	ZH-I02A	ZH-I02B	ZH-I02T
Name	Standard test finger	Round baffle test finger	Large baffle test finger	Standard test finger with thrust
1	30±0.2	30±0.2	30±0.2	30±0.2
2	60±0.2	60±0.2	60±0.2	60±0.2
3	80±0.2	80±0.2	100±0.2	80±0.2
4	180±0.2	180±0.2	----	180±0.2
5	R2±0.05	R2±0.05	R2±0.05	R2±0.05
6	S4±0.05	S4±0.05	S4±0.05	S4±0.05
7	37^o 0 -10’	37^o 0 -10’	37^o 0 -10’	37^o 0 -10’
8	14^o 0 -10’	14^o 0 -10’	14^o 0 -10’	14^o 0 -10’
9	Ф12 0 -0.05	Ф12 0 -0.05	Ф12 0 -0.05	Ф12 0 -0.05
10	Ф50	Ф50	----	Ф50
11	20±0.2	----	----	20±0.2
12	Ф75±0.2	Ф75±0.2	Ф125±0.2	Ф75±0.2
13	5±0.5	5±0.5	----	5±0.5
14	----	----	----	10-30N推力
15	IEC61032.1/ GB16842.1	IEC60335-1/ GB4706.1	IEC60335-2-14/ GB4706.30	IEC60529/ GB4208
