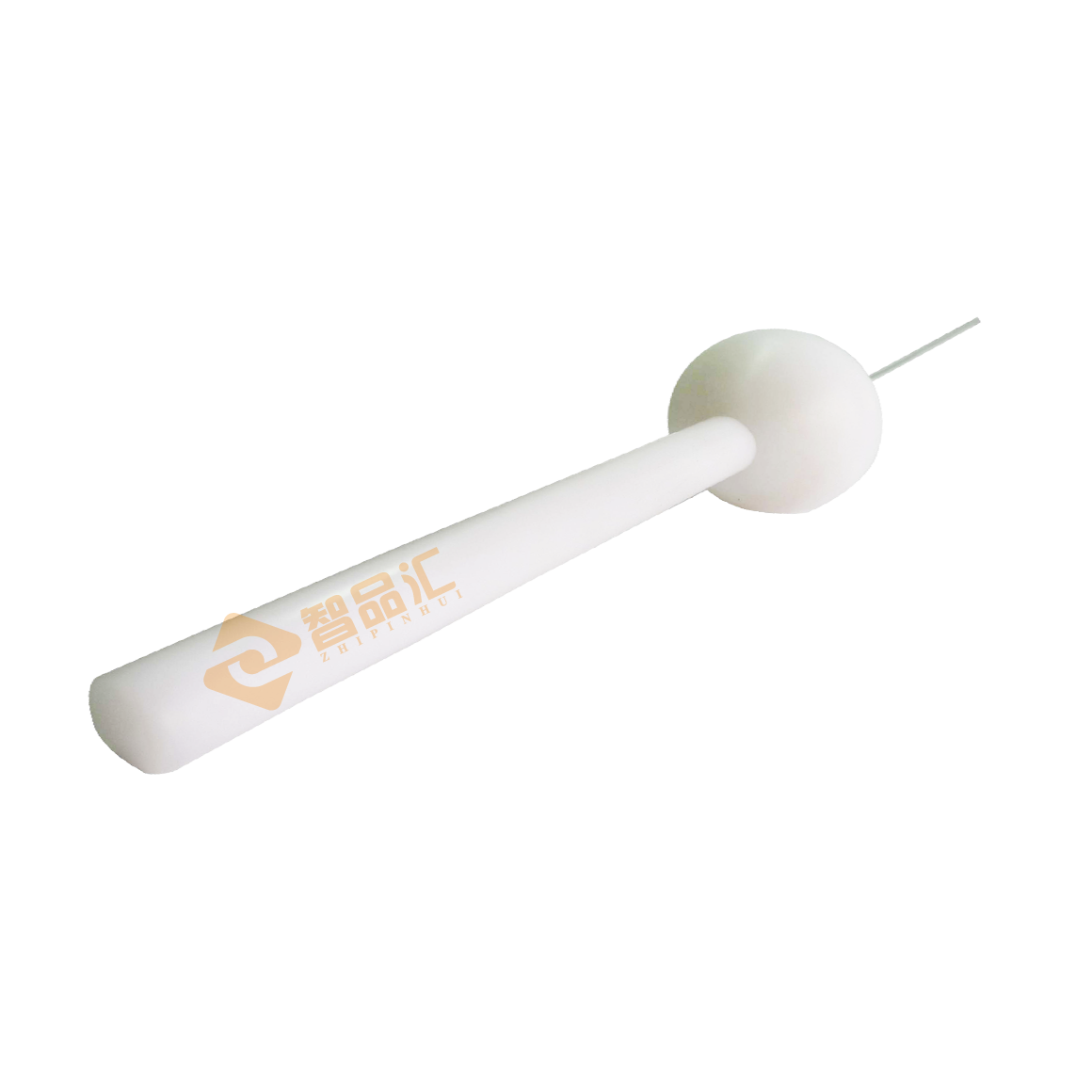

ZH-I04 Test Tool D Probe
1. Product Overview
It complies with the standards of IEC61032 Figure 4 Test Tool D, GB/T16842 Test Tool D, GB4208 and IEC60529 IP4, GB8898 and IEC60065, and is used for protection inspection against handheld tools.
Customizable: with wiring terminals for anti-electric shock test, or with M6 threaded holes at the end of the handle (for use with push-pull force gauges) for shell protection test. Models with T after the model have built-in thrust.
2. Main specifications and corresponding technical parameters:
Parameters/Model | ZH-I04 | ZH-I04T |
Name | Test Tool D Probe | D probe with thrust |
1 | Ф1+0.05 0 | Ф1+0.05 0 |
2 | SФ35±0.2 | SФ35±0.2 |
3 | Ф10 | Ф10 |
4 | 100±0.2 | 100±0.2 |
5 | 100 | ---- |
6 | ---- | 1Thrust |
7 | IEC61032.1/ GB16842.1 | IEC60529/ GB4208 |
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
