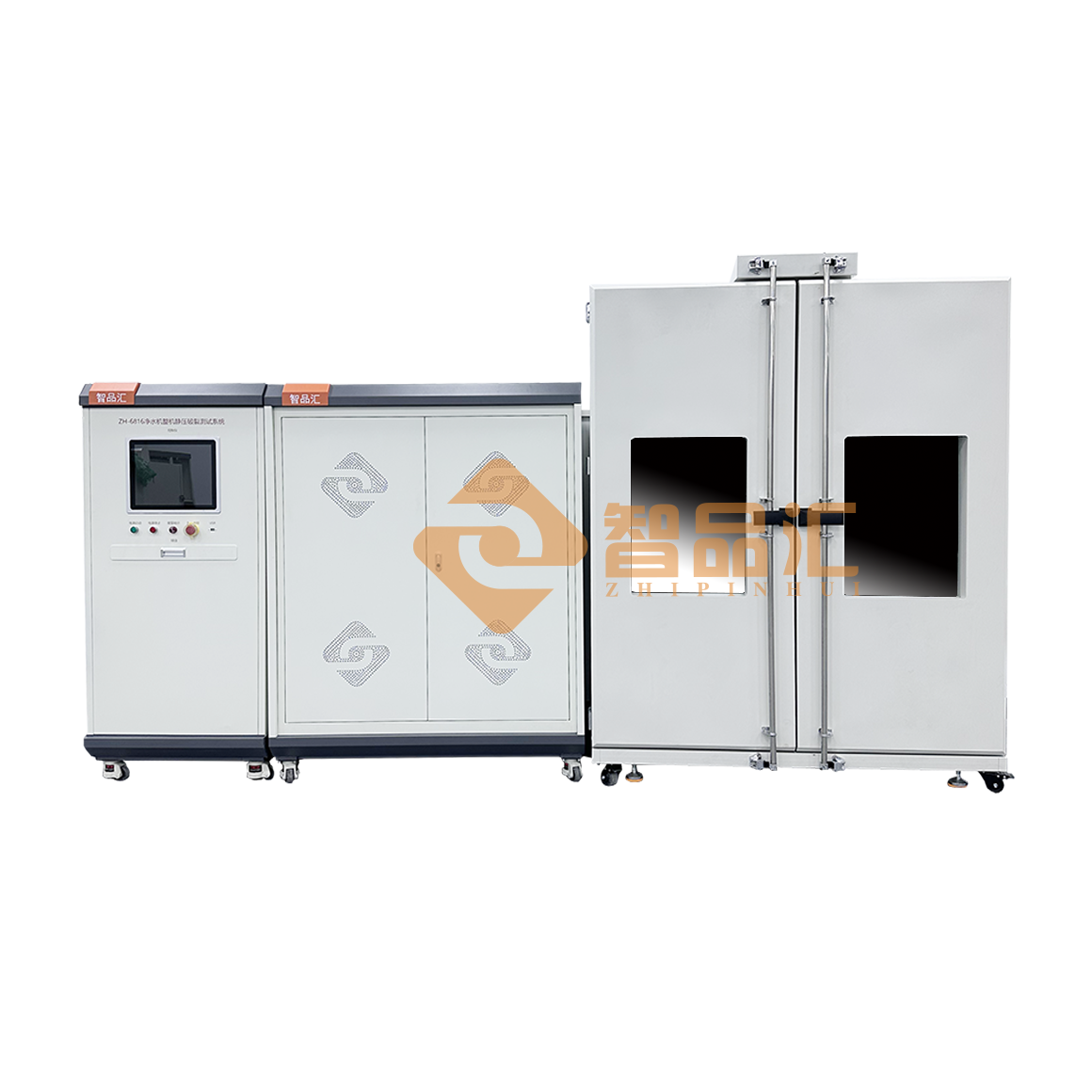

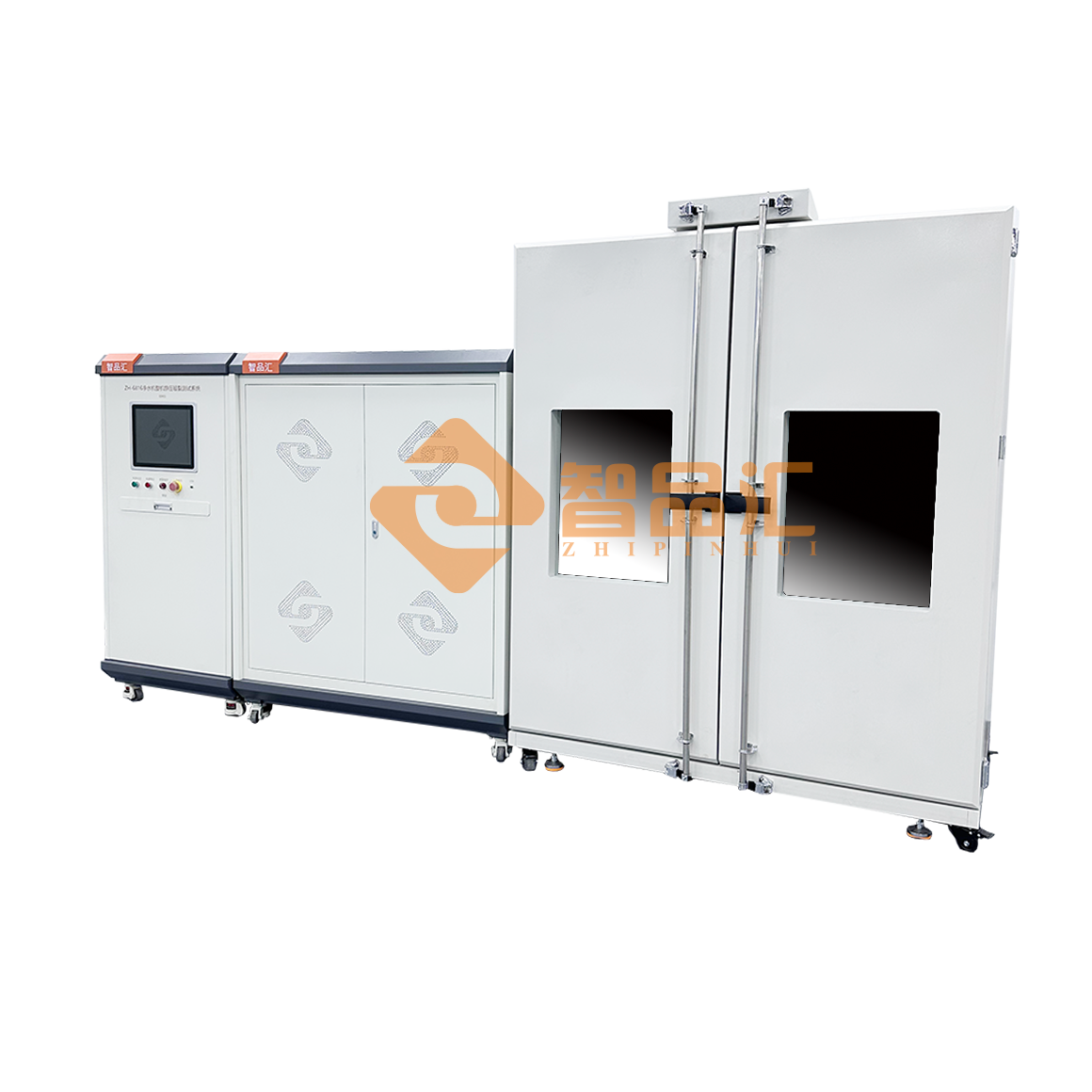

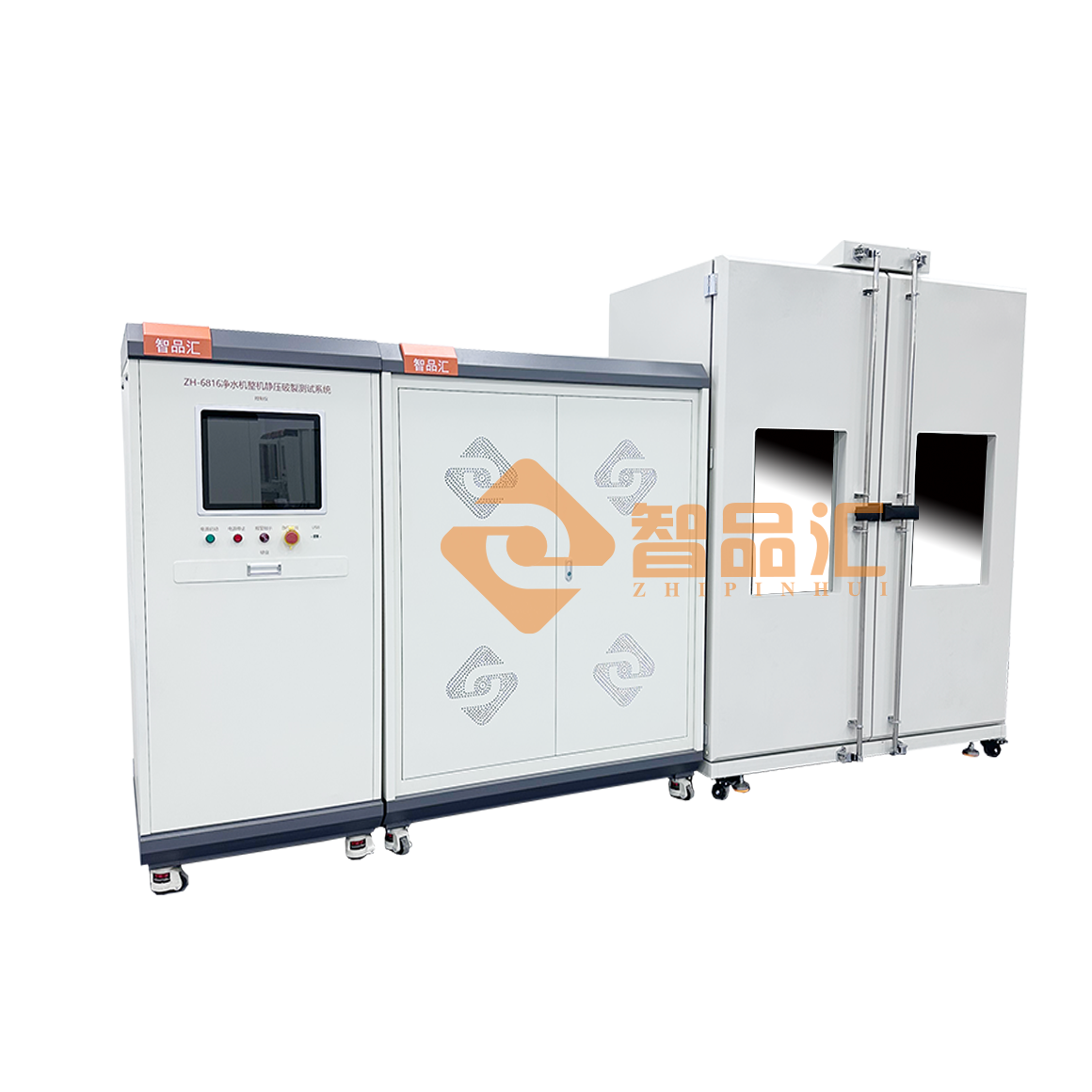

ZH-6816 Water Purifier Static Pressure Burst Test System

I. Overview

This equipment is designed in accordance with the technical requirements of standards such as "QB/T 4144-2010 Reverse Osmosis Water Purifiers for Household and Similar Purposes," "QB/T 4143 Ultrafiltration Water Purifiers for Household and Similar Purposes," and "QB/T 4698-2014 Pure Water Purifiers for Household and Similar Purposes." It is suitable for performing static pressure and burst tests on complete water purification equipment. The equipment utilizes a touchscreen integrated computer and PLC as the main control hub, with the PC program responsible for data processing and logic control. It offers easy operation and flexible adjustments, and the system can memorize, record, store, and display test results. The system provides test conditions and can flexibly perform static pressure and burst tests on complete water purification equipment, making it an ideal auxiliary testing device for home appliance manufacturers.

II. Technical Parameters

2.1 Test Object: Applicable to static pressure and burst testing of complete water purification equipment

2.2 Control Method: PLC + 15-inch touchscreen integrated computer + program

2.3 Test Stations: 4, four independent stations

2.4 Test Capacity: Capable of simultaneously testing the water lines, pipes, and filter elements of four small units or one large commercial unit.

2.5 Test Medium: Tap water

2.6 Pressure Source: Gas-Liquid Booster Pump

2.7 Test Pressure: 0.1-6 MPa

2.8 Pressure Boost Rate: 0.1-0.4 MPa/s
