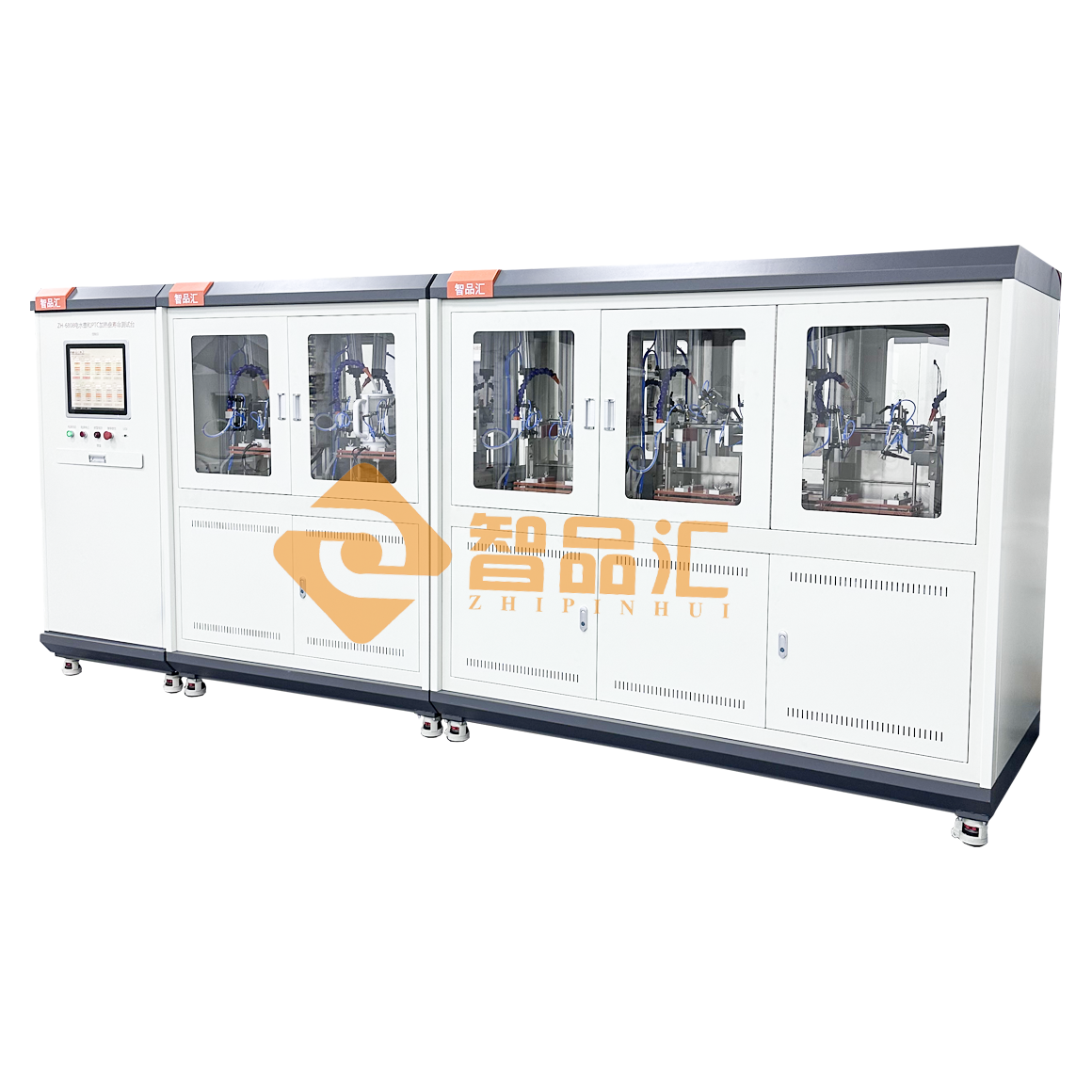

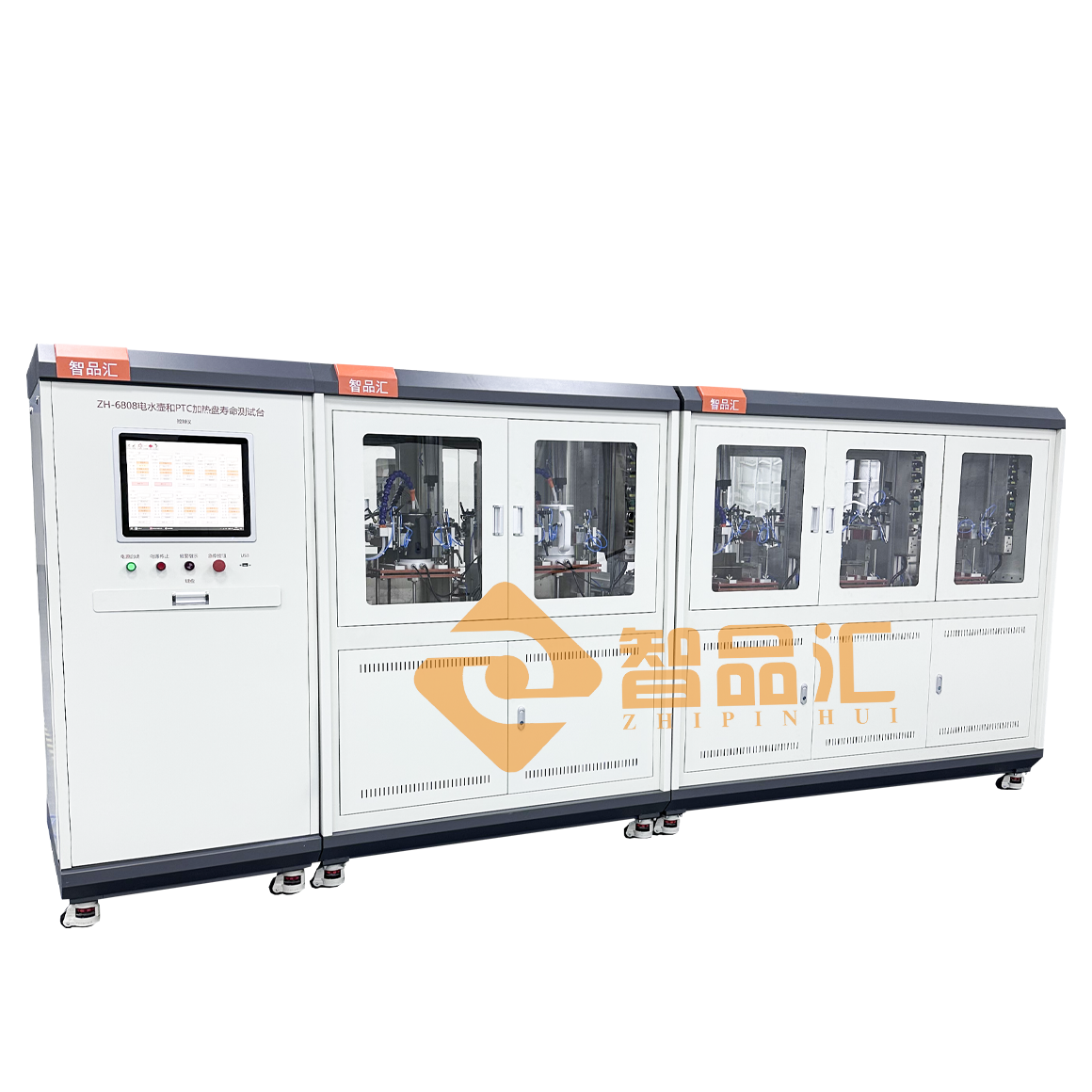

ZH-6808 Electric Kettle Life Tester

I. Overview

This equipment is designed in accordance with relevant requirements of enterprise and national standards, and is suitable for testing the lifespan of electric kettles. It utilizes an integrated touchscreen computer and programmable logic controller (PLC) as the central control unit. The PC program handles data processing and logic control, offering easy operation and flexible adjustments. The system can memorize, record, store, and display test results. The system provides test conditions and can flexibly test the durability of stainless steel vacuum hot pots, making it an ideal auxiliary testing device for home appliance manufacturers.

II. Technical Parameters

2.1 Test Object: Electric Kettles

2.2 Control Method: PLC + 15-inch touchscreen computer + program

2.3 Test Stations: 10, each equipped with functions such as the electric kettle lifespan test.

2.4 Test Water: Tap water supply.

2.5. Test Time: 0-999s, Adjustable

2.6. Water Adding Time: 0-999s, Adjustable

2.7. Number of Tests: 0-999999, Adjustable

2.8. Power Acquisition Module for Each Station:

Voltage: 0-300V, Current: 0-20A, Power: 0-4000W, Accuracy: 0.5

2.9. AC220V Waterproof Socket for Programmable Power On/Off

2.10. Electrical Parameter Module for Real-Time Data Collection of Voltage and Power During Station Tests, Activating an Alarm When Power Falls Below a Setpoint

2.11. Each Station is Provided with a Button for Activating the Boiler Function

2.12. Each Station is Provided with a Water Pourer for Discharging Hot Water from the Electric Kettle

2.13. The Equipment Features a Water-Electricity Separation Design and Features Leak and Low-Water-Level Protection
