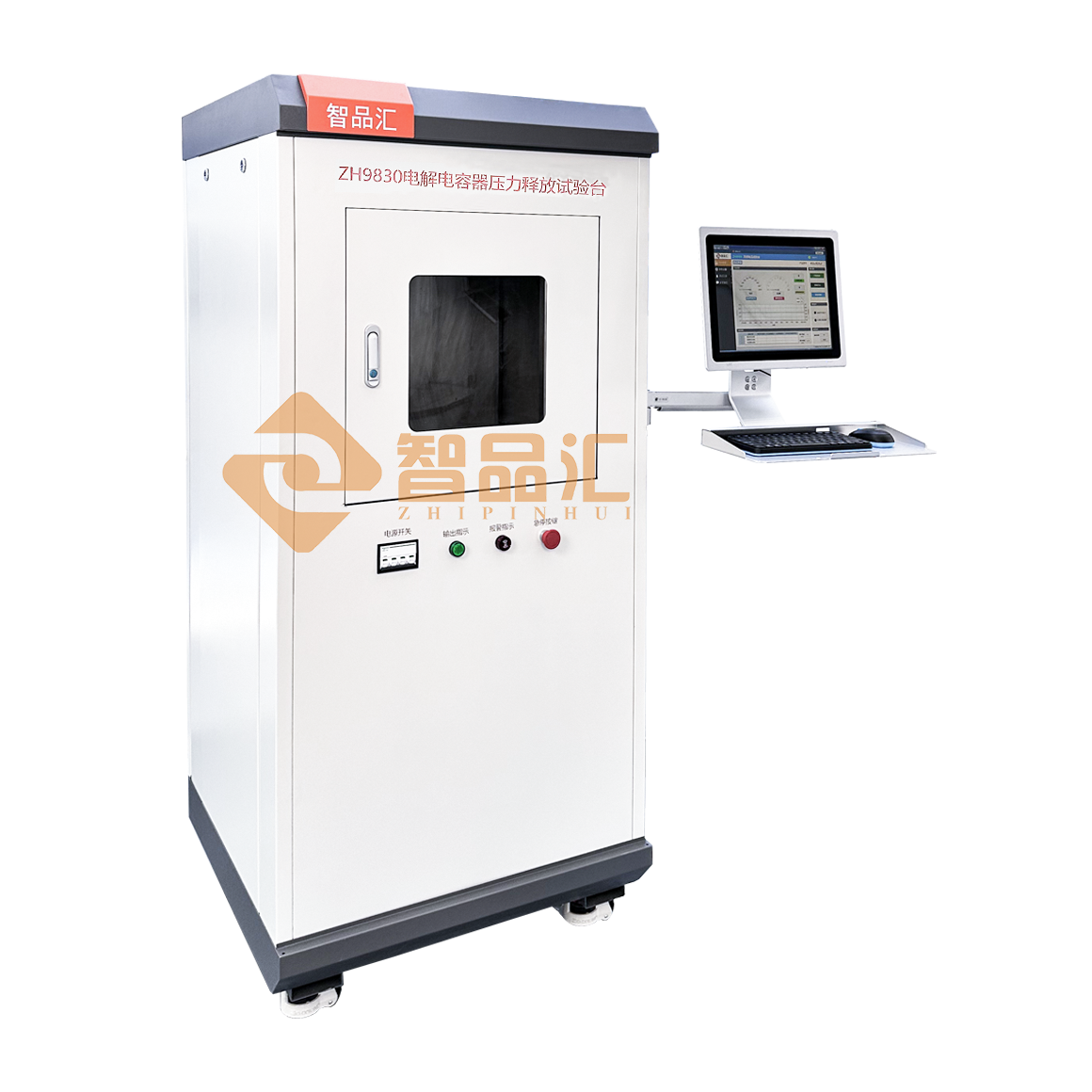

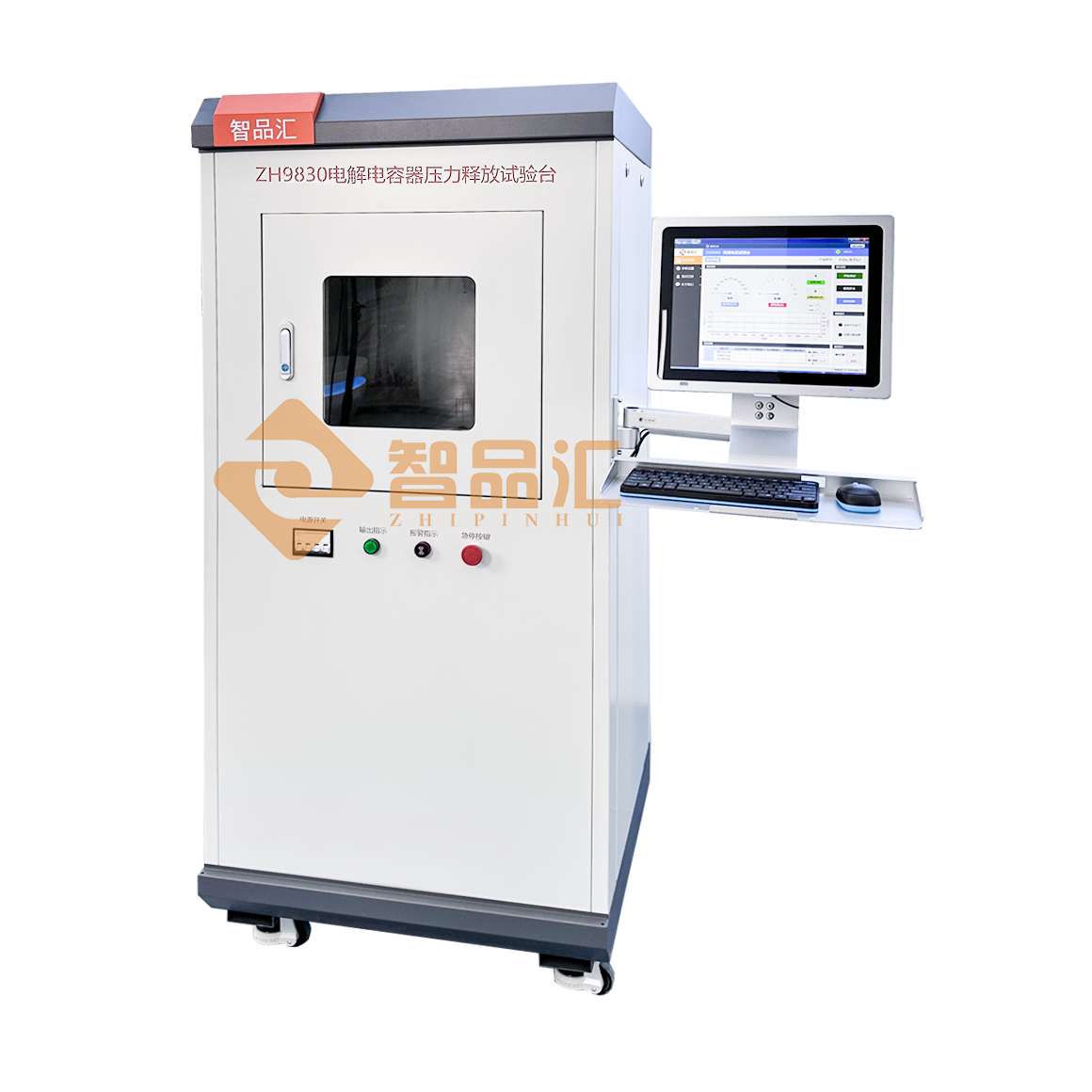

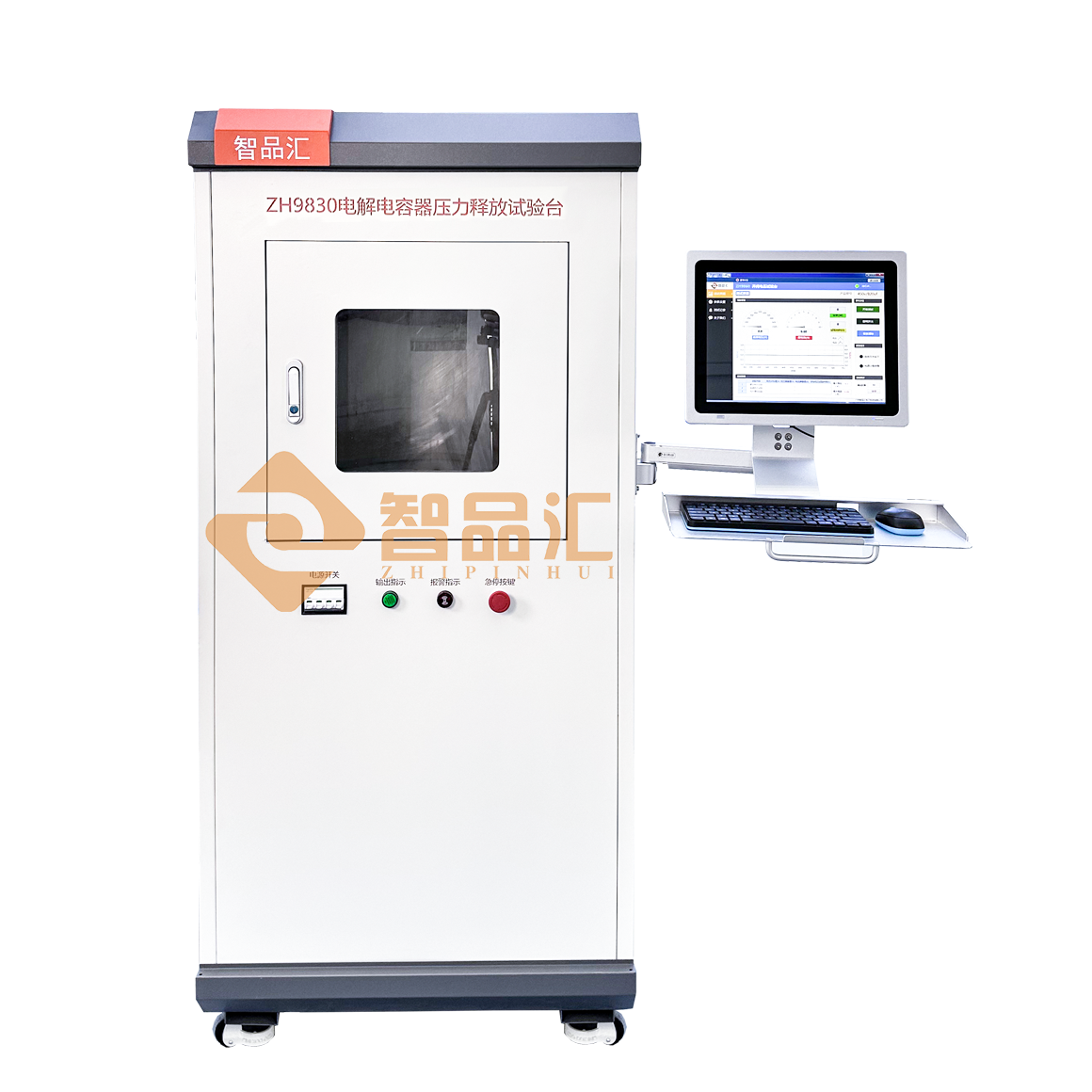

ZH9830 Electrolytic Capacitor Pressure Release Test Bench

I. Product Overview

Based on the requirements of GB5993 and GB2693 standards for pressure release testing of electrolytic capacitors,

this product tests the safety and explosion-proof indicators of electrolytic capacitors.

II. Technical Parameters

1. Test Capacitor: Rated voltage not exceeding DC 500V

2. Number of Test Channels: 1 channel

3. Test Method: DC or AC selectable

4. DC Test Method:

Test Voltage: DC 10～500V adjustable, display accuracy ±(1% reading + 2V)

Boost Rate: 1～99V/second, settable

Test Current: 0～10A constant limiting current, settable, display accuracy ±(1% reading + 0.02A)

5. AC Test Method:

Test Voltage: AC 0～300V adjustable, display accuracy ±(1% reading + 1V)

Boost Rate: 1～99V/second, settable

Test Frequency: 50Hz, 60Hz selectable

Test Current Display: 0～16A Display accuracy ±(1% reading + 0.02A)

6. Test time:

Adjustable from 1 to 9999s, automatic shutdown upon test completion.

Automatic discharge and smoke extraction upon test completion.

7. The equipment uses a Siemens PLC + touchscreen for parameter setting and automatic control.

All parameter adjustments and controls are performed automatically according to the settings, requiring no manual

adjustment.

8. The equipment has an automatic discharge function upon test completion to ensure personnel safety.

9. The equipment has short-circuit and overload protection functions.

10. Explosion-proof test chamber:

Stainless steel inner chamber, approximately 100 liters in volume, with an explosion-proof glass observation window.

Equipped with LED explosion-proof lighting and a smoke extraction system.
