RXCBE6510 electrolytic capacitor ripple current test bench

1. Product Overview

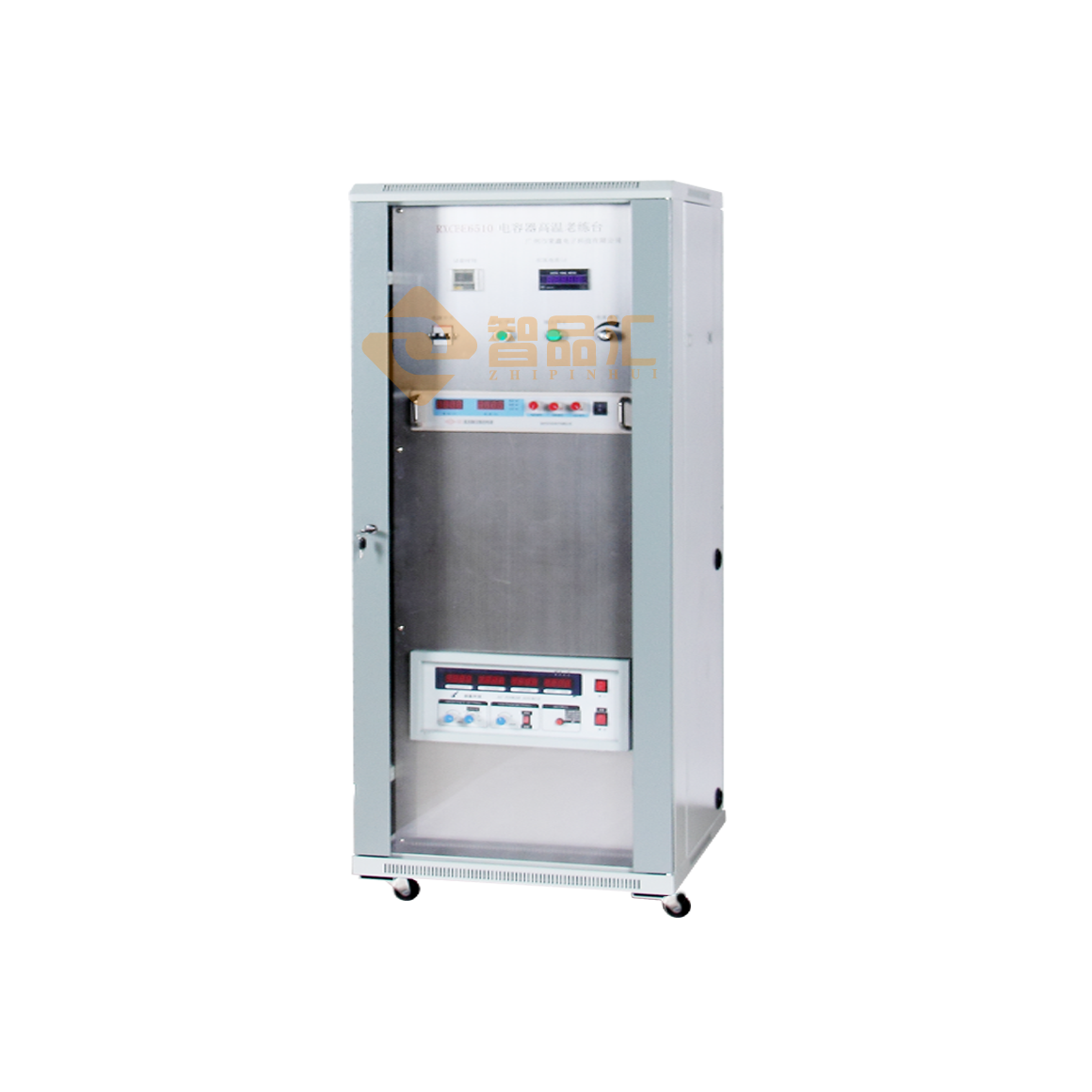

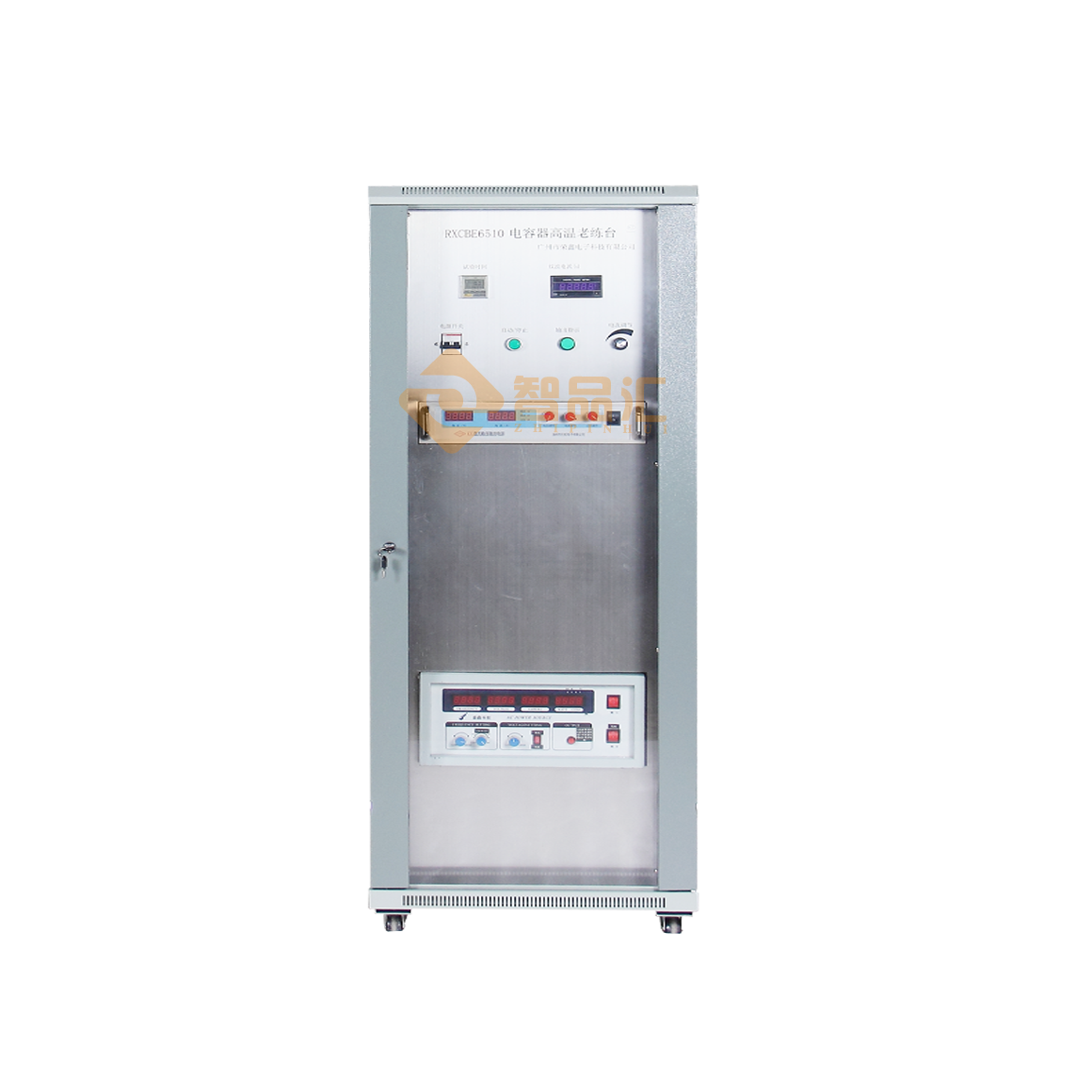

RXCBE6510 capacitor high temperature aging station is a special equipment that superimposes a ripple current signal on the DC voltage to perform ripple life tests on pulse capacitors, power capacitors, bus capacitors, electrolytic capacitors, etc.

2. Test performance parameters

1. Ripple frequency: 40～1000Hz adjustable

Frequency accuracy: better than ± 0.1%

2. Output constant ripple current: 0～30.00A RMS adjustable

Digital display accuracy ±(1% reading + 5 characters);

Compared with the constant voltage output type equipment, the constant current function has a constant ripple current and can adapt to the change of capacity of the tested product during actual testing, without the need to observe and adjust from time to time

Ripple waveform: sine wave

Output ripple voltage: 0～15V/30V effective value 2 gears adjustable

Digital display accuracy ±(1% reading + 5 characters);

3. DC bias: 0～800V adjustable, maximum output current 0.1A

DC bias can be turned off to test non-polar capacitors

Voltage display accuracy: ±(1% reading + 2 characters)

4. Test two identical products at the same time during each test

5. Test time: 0.1~999.9 hours, automatic shutdown when time is up

6. With overcurrent and overload protection function

Automatic discharge function after test completion

7. Working power supply: AC220V±5%, 50Hz±5Hz.

8. Chassis: standard cabinet, silver gray

9. Dimensions: 60cm (length) × 60cm (width) × 160cm (height) weighs about 90kg.

10. The oven, temperature tester, capacitance tester, monitoring oscilloscope, etc. for the supporting test are provided by the user

11. Random accessories: a set of test output high temperature resistant cables, a set of test fixtures, a manual, a certificate of conformity and a warranty card.

12. Working environment: temperature: 0~40℃; relative humidity ≤80%;
