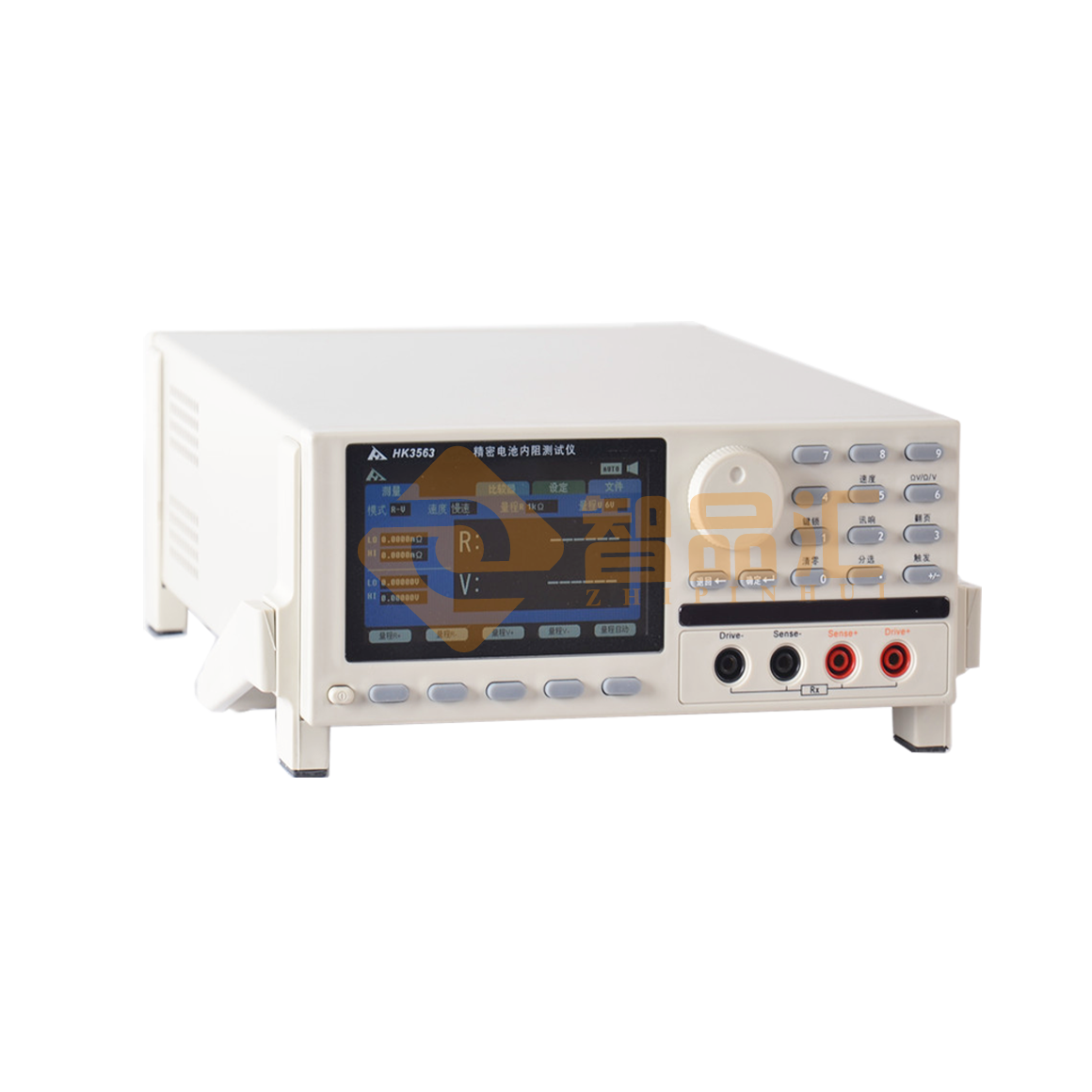

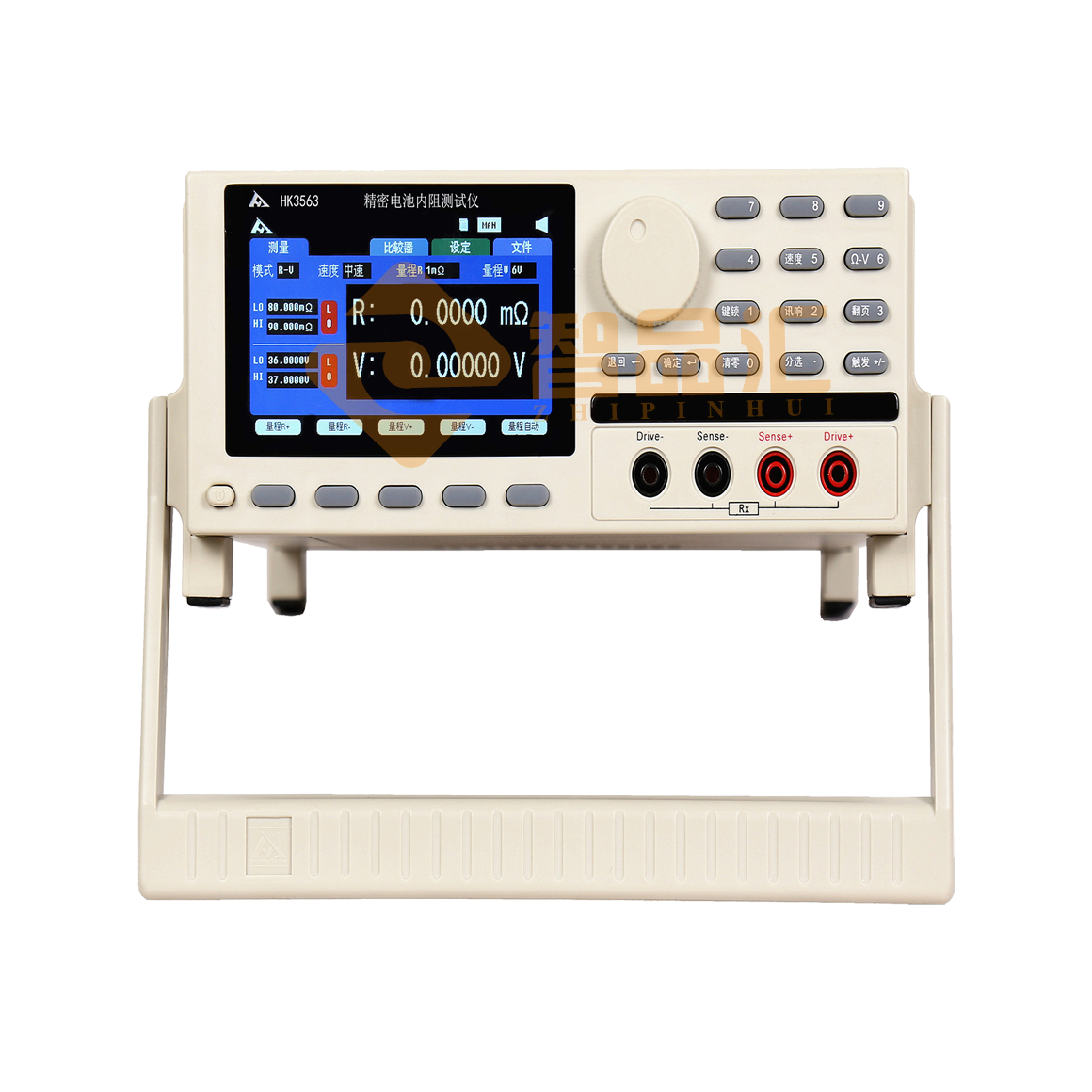

HK3563 Precision Battery Internal Resistance Tester
1. Overview
4.3-inch TFT true color LCD display
Minimum resolution 0.1uΩ, maximum test voltage 800V
Standard with multiple interfaces, the fastest test speed is 70 times/second, suitable for high-speed automatic test system
Internal resistance comparator function, 30 sets of records, 7-level sorting, level counting
Data saving function, standard USB flash drive to save test data
Applications:
High-precision lithium battery internal resistance and voltage detection
Matching automatic sorting machine for battery internal resistance + voltage automatic test
Battery degradation status and life evaluation
ESR test of supercapacitor (low internal resistance capacitor)
2. Test parameters:
| Test Parameters | AC resistance, DC voltage |
| Basic accuracy | Resistance: 0.3% Voltage: 0.01% |
| Measuring range | Resistance: 0.1μΩ～3kΩ Voltage: 10μV~60VDC |
| Signal Source | AC 1kHz, open circuit voltage <5V, test current: <100mA |
| Range | Seven ranges: automatic and manual |
| Test speed | 70 times/second, 15 times/second, 3 times/second |
| Display results | Direct reading, sorting results |
| Maximum reading | Resistance: 32,000 Voltage: 600,000 |
| Correction | Short circuit reset within full range |
| Comparator | 30 groups of records, 7 levels of sorting |
| trigger | Internal trigger, manual trigger, external trigger |
| interface | RS-232C interface Handler interface (PLC) USB interface |
| Power Requirements | Voltage: 90VAC～250VAC Frequency: 47Hz～400Hz Power: Maximum 15VA |
| Size and weight | External dimensions (mm): 385 (length) x 249 (width) x 102 (height) Weight: 3kg |
| appendix | HK9350 Kelvin test lead, HK9360 test probe, HK9363 connection line, HK9800 RS232 interface cable, power cord |
| other | File data export, USB storage |
HK3563 Precision Battery Internal Resistance Tester
1. Overview
4.3-inch TFT true color LCD display
Minimum resolution 0.1uΩ, maximum test voltage 800V
Standard with multiple interfaces, the fastest test speed is 70 times/second, suitable for high-speed automatic test system
Internal resistance comparator function, 30 sets of records, 7-level sorting, level counting
Data saving function, standard USB flash drive to save test data
Applications:
High-precision lithium battery internal resistance and voltage detection
Matching automatic sorting machine for battery internal resistance + voltage automatic test
Battery degradation status and life evaluation
ESR test of supercapacitor (low internal resistance capacitor)
2. Test parameters:
| Test Parameters | AC resistance, DC voltage |
| Basic accuracy | Resistance: 0.3% Voltage: 0.01% |
| Measuring range | Resistance: 0.1μΩ～3kΩ Voltage: 10μV~60VDC |
| Signal Source | AC 1kHz, open circuit voltage <5V, test current: <100mA |
| Range | Seven ranges: automatic and manual |
| Test speed | 70 times/second, 15 times/second, 3 times/second |
| Display results | Direct reading, sorting results |
| Maximum reading | Resistance: 32,000 Voltage: 600,000 |
| Correction | Short circuit reset within full range |
| Comparator | 30 groups of records, 7 levels of sorting |
| trigger | Internal trigger, manual trigger, external trigger |
| interface | RS-232C interface Handler interface (PLC) USB interface |
| Power Requirements | Voltage: 90VAC～250VAC Frequency: 47Hz～400Hz Power: Maximum 15VA |
| Size and weight | External dimensions (mm): 385 (length) x 249 (width) x 102 (height) Weight: 3kg |
| appendix | HK9350 Kelvin test lead, HK9360 test probe, HK9363 connection line, HK9800 RS232 interface cable, power cord |
| other | File data export, USB storage |
