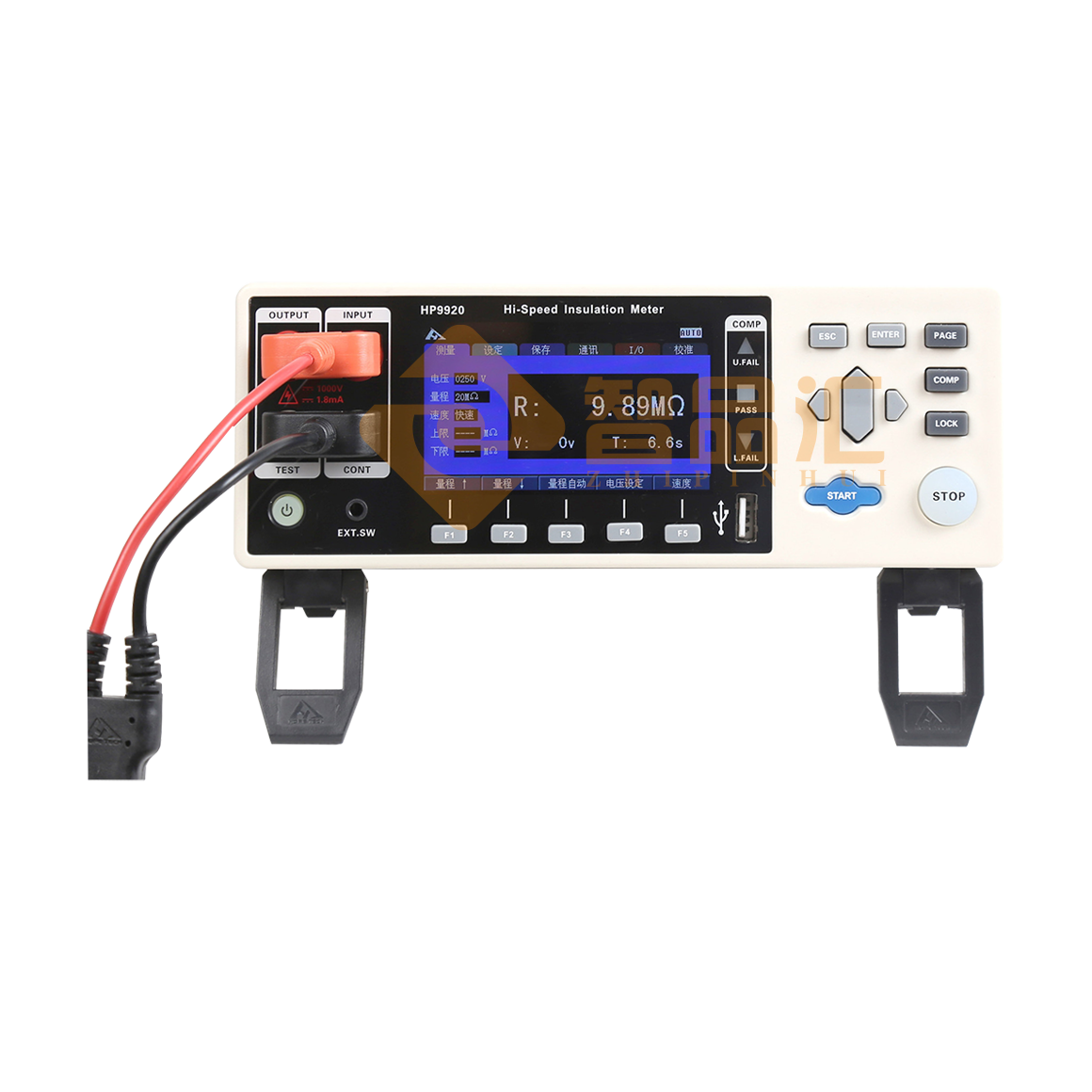

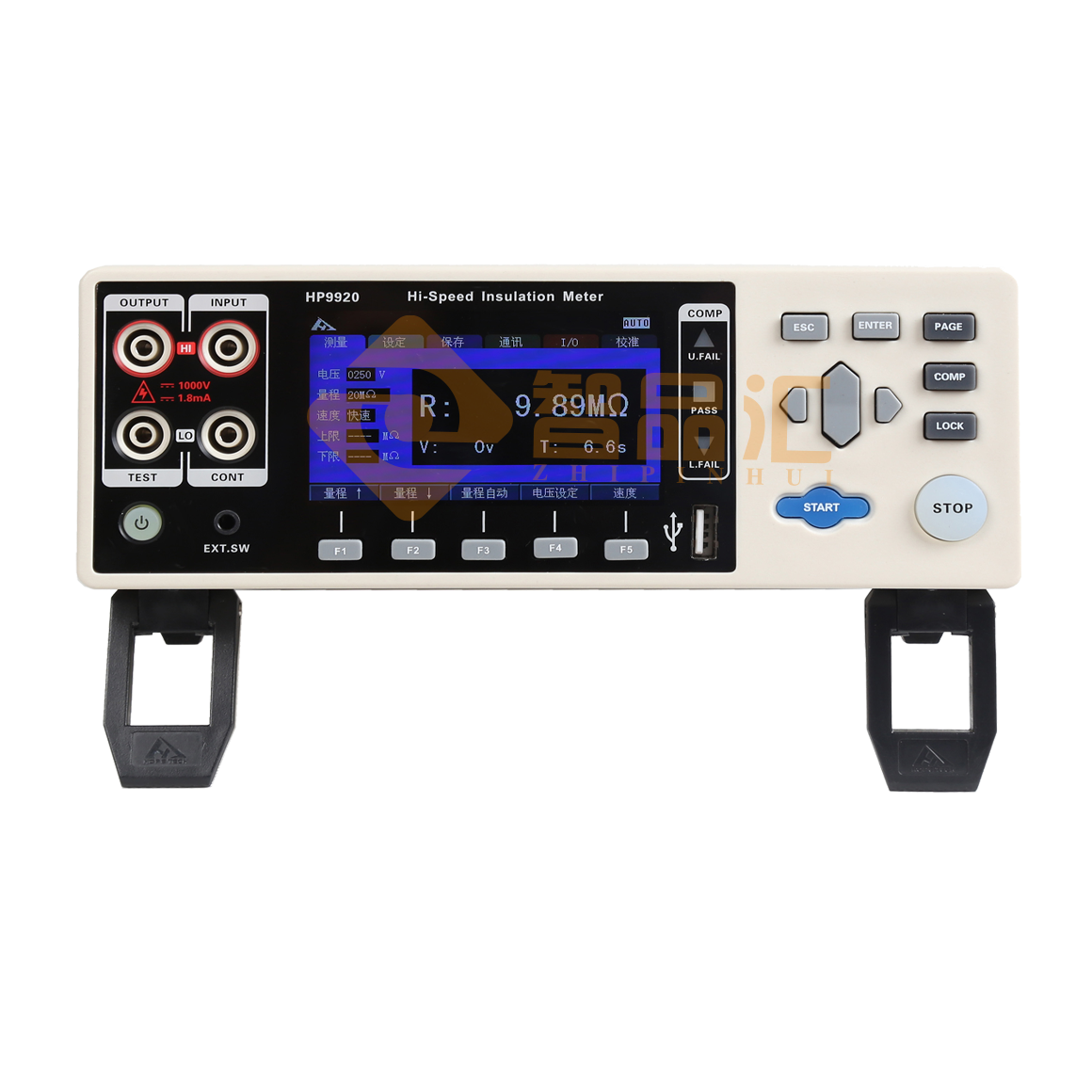

HP9920 High speed Lithium Battery Short Circuit Tester
1. Overview
3.5-inch TFT high-definition LCD display, compact body, powerful functions, simple operation
Four-terminal test, with abnormal detection function
Test condition parameters can be freely saved and read
With comparison and judgment classification function
Rich interfaces suitable for automated testing
Standard interface RS232C, (optional RS485, Ethernet port, U disk interface, I/O output port, temperature test interface)
model | HP9920 |
Test voltage/ | 25 V ≦ V < 100 V（2.000/20.00/200.0MΩ） |
Basic accuracy | ±2% rdg. ±5 dgt. |
Measuring speed | FAST:50ms/次，SLOW:500ms/次（切换） |
show | Adopt 3.5-inch high-resolution TFT screen display |
Recording function | Save content: rated measurement voltage value, comparator upper and lower limits, test mode, judgment buzzer, test time, response time, resistance range, measurement speed |
Comparator Settings | FAIL: measured value ≧ upper limit value; PASS upper limit value > measured value > lower limit value; FAIL measured value ≦ lower limit value |
Judgment processing | Buzzer sound, indicator light: qualified (IN), unqualified (upper limit HI, lower limit LO), EXT. I/O output |
Test time timing | The time for applying voltage to judge whether it is qualified or not can be set from 0.045s to 999.999s (resolution 0.001s) |
Response time timing | After the test starts, the comparator determines that the set time of 0.005s~999.999s (resolution 0.001s) is prohibited. |
Analog Output | DC+4Vf.s |

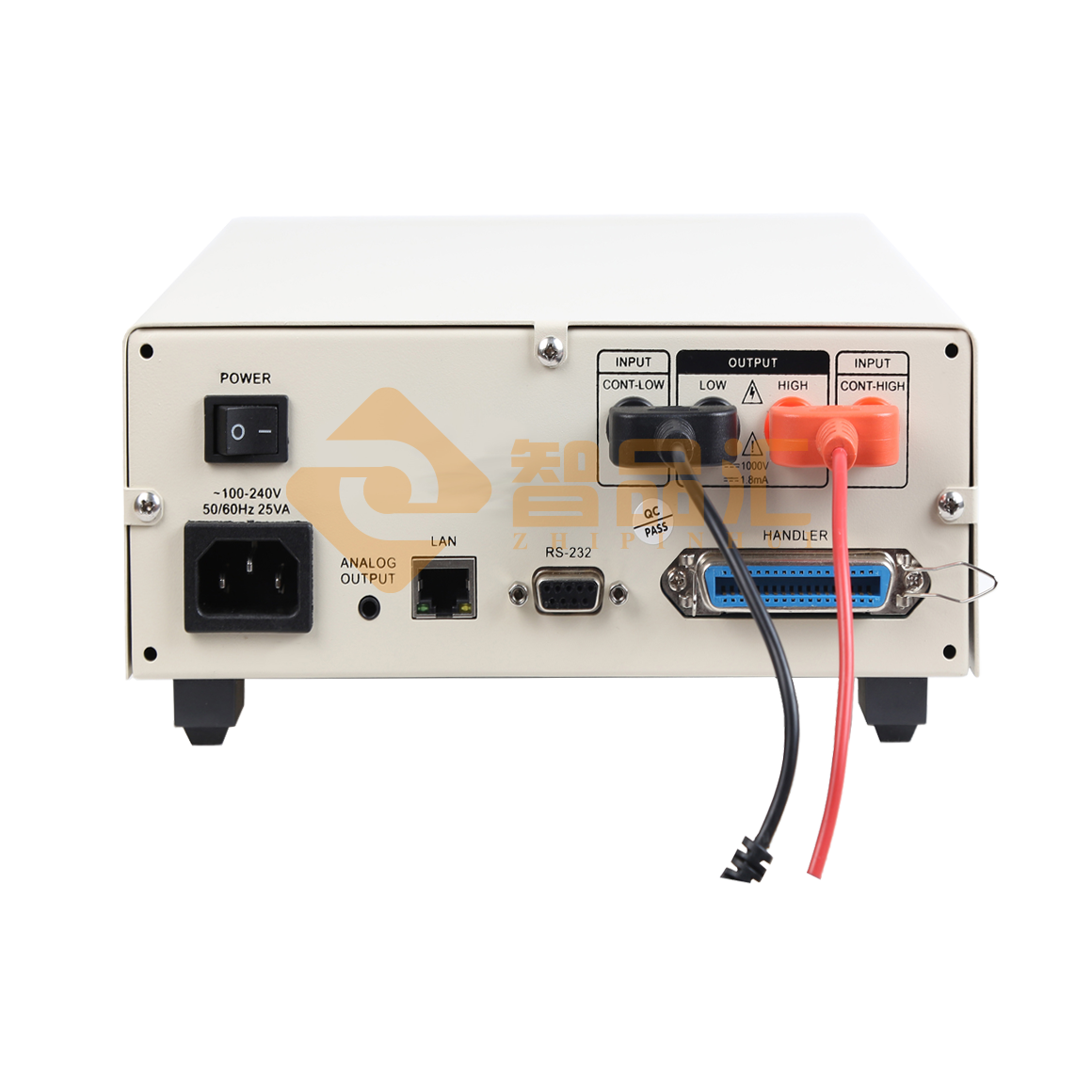

interface | Optional: (RS232C, LAN Ethernet interface communication; Handler (I/O port); EX.SW external switch interface, used to trigger or terminate the test; analog output interface.) Control the instrument or obtain the measured value and judgment result through a computer or PLC. It is also equipped with a function to automatically send the measured value or judgment result after each test. |
power supply | Voltage: 100V ~ 240V AC Frequency: 50Hz/60Hz |
Volume and weight | 325x215x96mm，2kg |
appendix | Manual x1, power cord x1, external I/O connector x1, RS232 communication cable |
HP9920 High speed Lithium Battery Short Circuit Tester
1. Overview
3.5-inch TFT high-definition LCD display, compact body, powerful functions, simple operation
Four-terminal test, with abnormal detection function
Test condition parameters can be freely saved and read
With comparison and judgment classification function
Rich interfaces suitable for automated testing
Standard interface RS232C, (optional RS485, Ethernet port, U disk interface, I/O output port, temperature test interface)
model | HP9920 |
Test voltage/ | 25 V ≦ V < 100 V（2.000/20.00/200.0MΩ） |
Basic accuracy | ±2% rdg. ±5 dgt. |
Measuring speed | FAST:50ms/次，SLOW:500ms/次（切换） |
show | Adopt 3.5-inch high-resolution TFT screen display |
Recording function | Save
content: rated measurement voltage value, comparator upper and lower
limits, test mode, judgment buzzer, test time, response time, resistance
range, measurement speed |
Comparator Settings | FAIL: measured value ≧ upper limit value; PASS upper limit value > measured value > lower limit value; FAIL measured value ≦ lower limit value |
Judgment processing | Buzzer sound, indicator light: qualified (IN), unqualified (upper limit HI, lower limit LO), EXT. I/O output |
Test time timing | The time for applying voltage to judge whether it is qualified or not can be set from 0.045s to 999.999s (resolution 0.001s) |
Response time timing | After the test starts, the comparator determines that the set time of 0.005s~999.999s (resolution 0.001s) is prohibited. |
Analog Output | DC+4Vf.s |
interface | Optional: (RS232C, LAN Ethernet interface communication; Handler (I/O port); EX.SW external switch interface, used to trigger or terminate the test; analog output interface.) Control the instrument or obtain the measured value and judgment result through a computer or PLC. It is also equipped with a function to automatically send the measured value or judgment result after each test. |
power supply | Voltage: 100V ~ 240V AC Frequency: 50Hz/60Hz |
Volume and weight | 325x215x96mm，2kg |
appendix | Manual x1, power cord x1, external I/O connector x1, RS232 communication cable |
