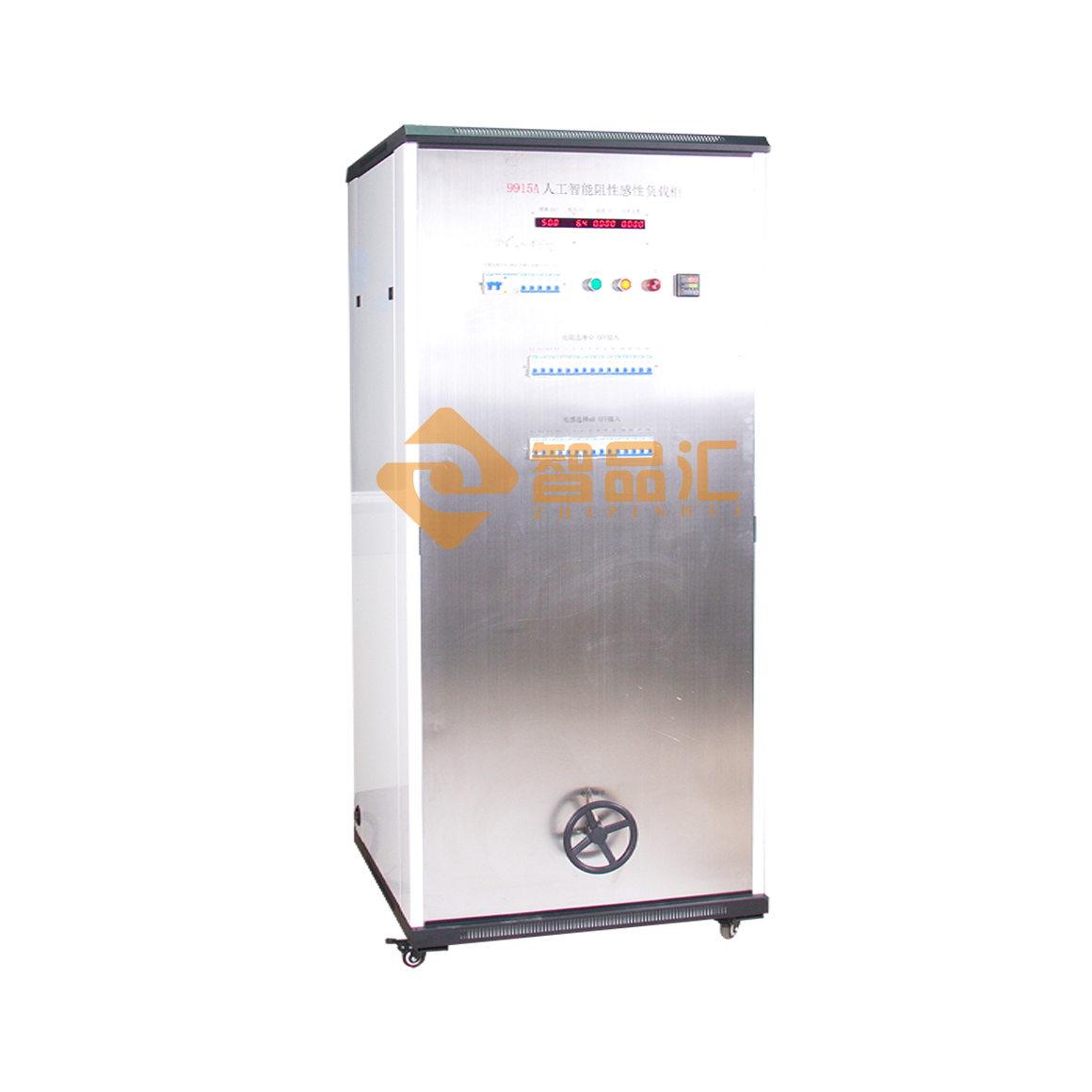

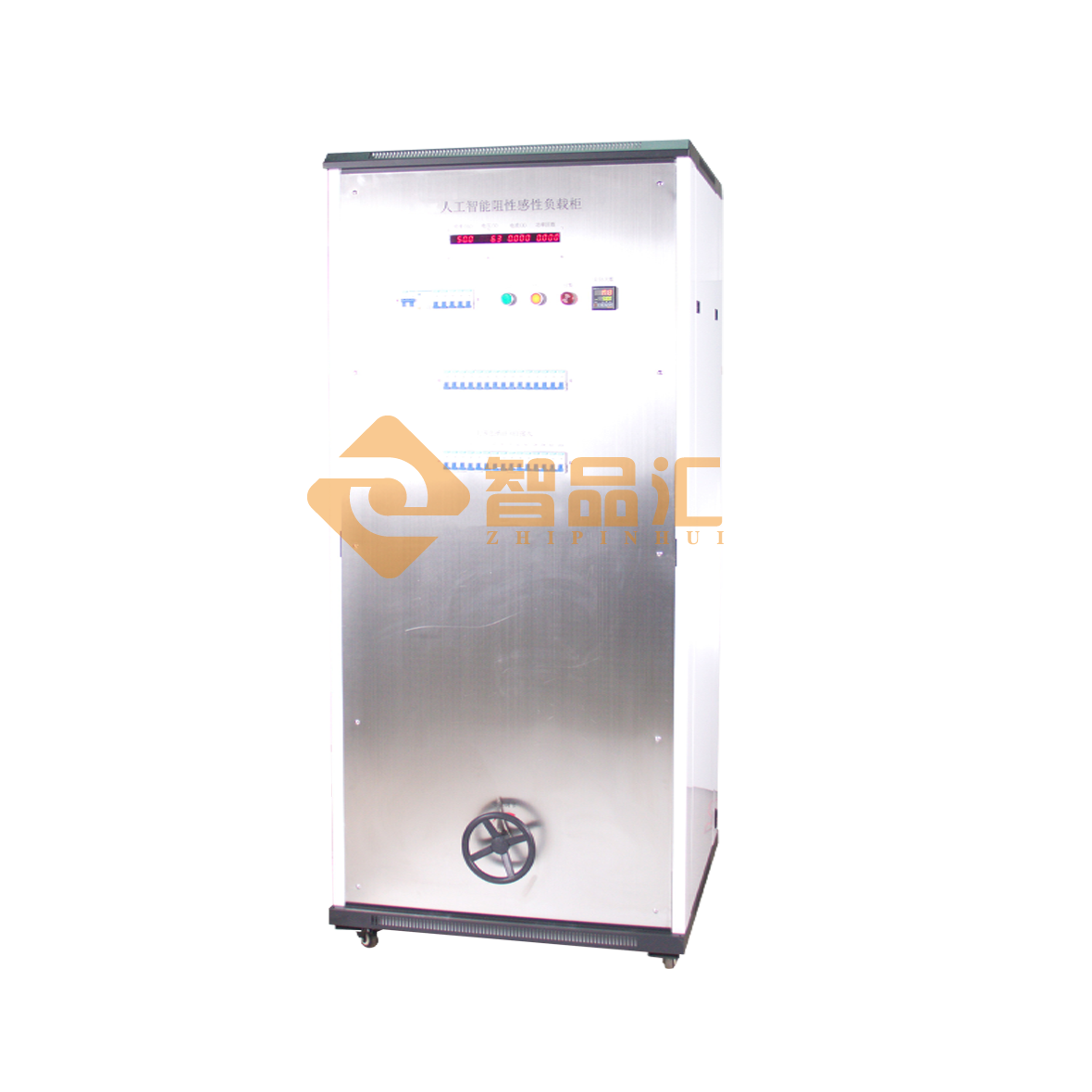

RX9528RLC Load Cabinet
1. Overview:
This
life test load cabinet is designed in accordance with the requirements
for resistance, inductance, and capacitive parallel loads in standards
such as GB2099, GB7261, GB14048, GB14598.1, GB15092, and GB16915.
2. Technical parameters
2.1. Control power supply: single-phase AC220V 1KVA
2.1.1.
Test power supply: single-phase AC5~300V 50/60Hz at least 15KVA. If
voltage stabilization test is required, please configure variable
frequency voltage stabilization power supply
2.2. Load output station: 1 station
2.3.
Test voltage: single-phase AC90~300V manually continuously adjustable,
no voltage stabilization function, load voltage does not exceed AC280V
2.4. Load mode: equivalent resistive, inductive, capacitive load, or three equivalent loads free parallel combination
①. Resistive load: current: AC0.5~42A continuously adjustable, step value is 0.1A or 1% rated value
②. Inductive load: current: AC0.5~42A continuously adjustable
2.5. Power factor: 0.1~1 Continuously adjustable;
2.6. Capacitor load: Current: AC0.5~42A continuously adjustable
2.7. Power factor: -0.1~-1 continuously adjustable
RX9528RLC Load Cabinet
1. Overview:
This life test load cabinet is designed in accordance with the requirements for resistance, inductance, and capacitive parallel loads in standards such as GB2099, GB7261, GB14048, GB14598.1, GB15092, and GB16915.
2. Technical parameters
2.1. Control power supply: single-phase AC220V 1KVA
2.1.1. Test power supply: single-phase AC5~300V 50/60Hz at least 15KVA. If voltage stabilization test is required, please configure variable frequency voltage stabilization power supply
2.2. Load output station: 1 station
2.3. Test voltage: single-phase AC90~300V manually continuously adjustable, no voltage stabilization function, load voltage does not exceed AC280V
2.4. Load mode: equivalent resistive, inductive, capacitive load, or three equivalent loads free parallel combination
①. Resistive load: current: AC0.5~42A continuously adjustable, step value is 0.1A or 1% rated value
②. Inductive load: current: AC0.5~42A continuously adjustable
2.5. Power factor: 0.1~1 Continuously adjustable;
2.6. Capacitor load: Current: AC0.5~42A continuously adjustable
2.7. Power factor: -0.1~-1 continuously adjustable
