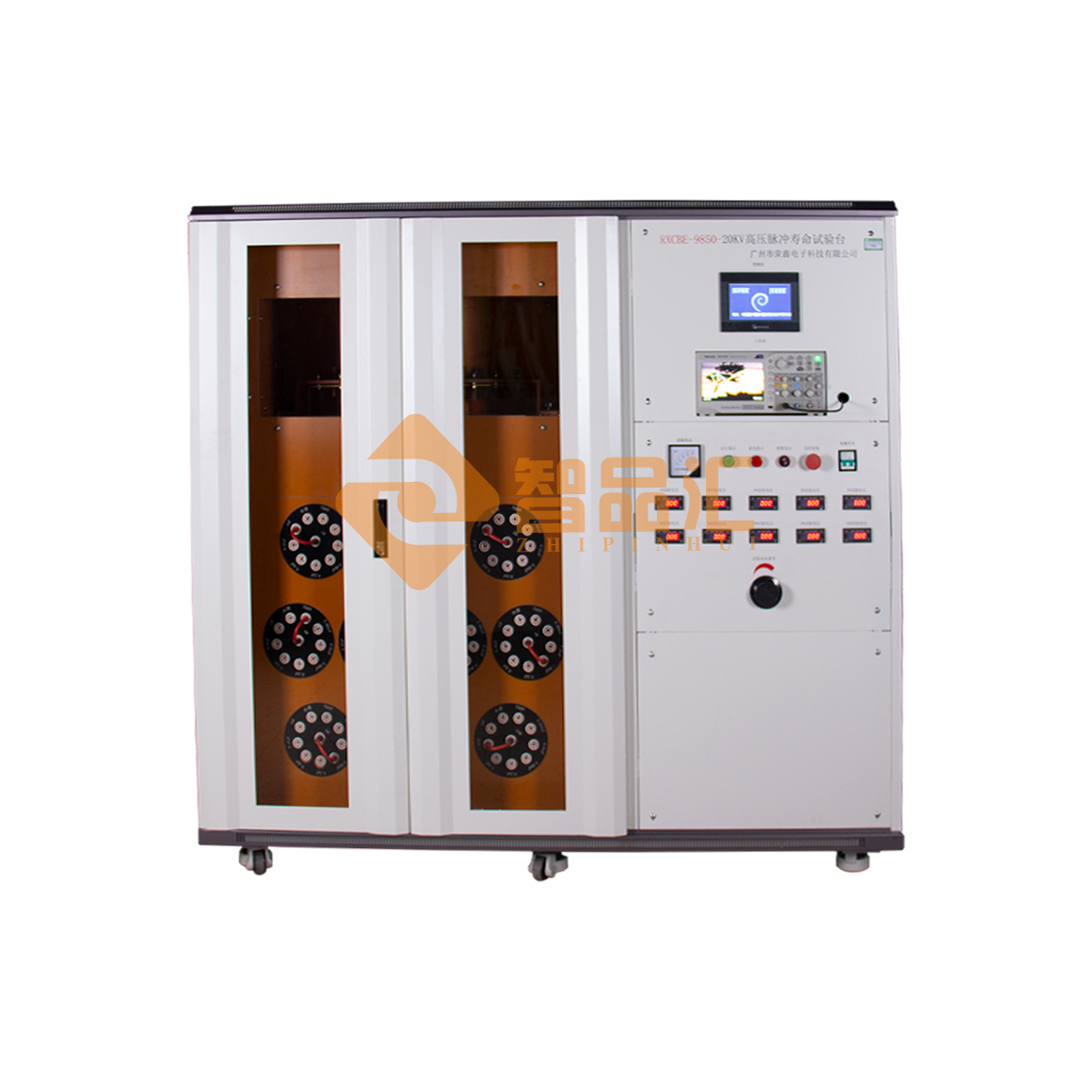

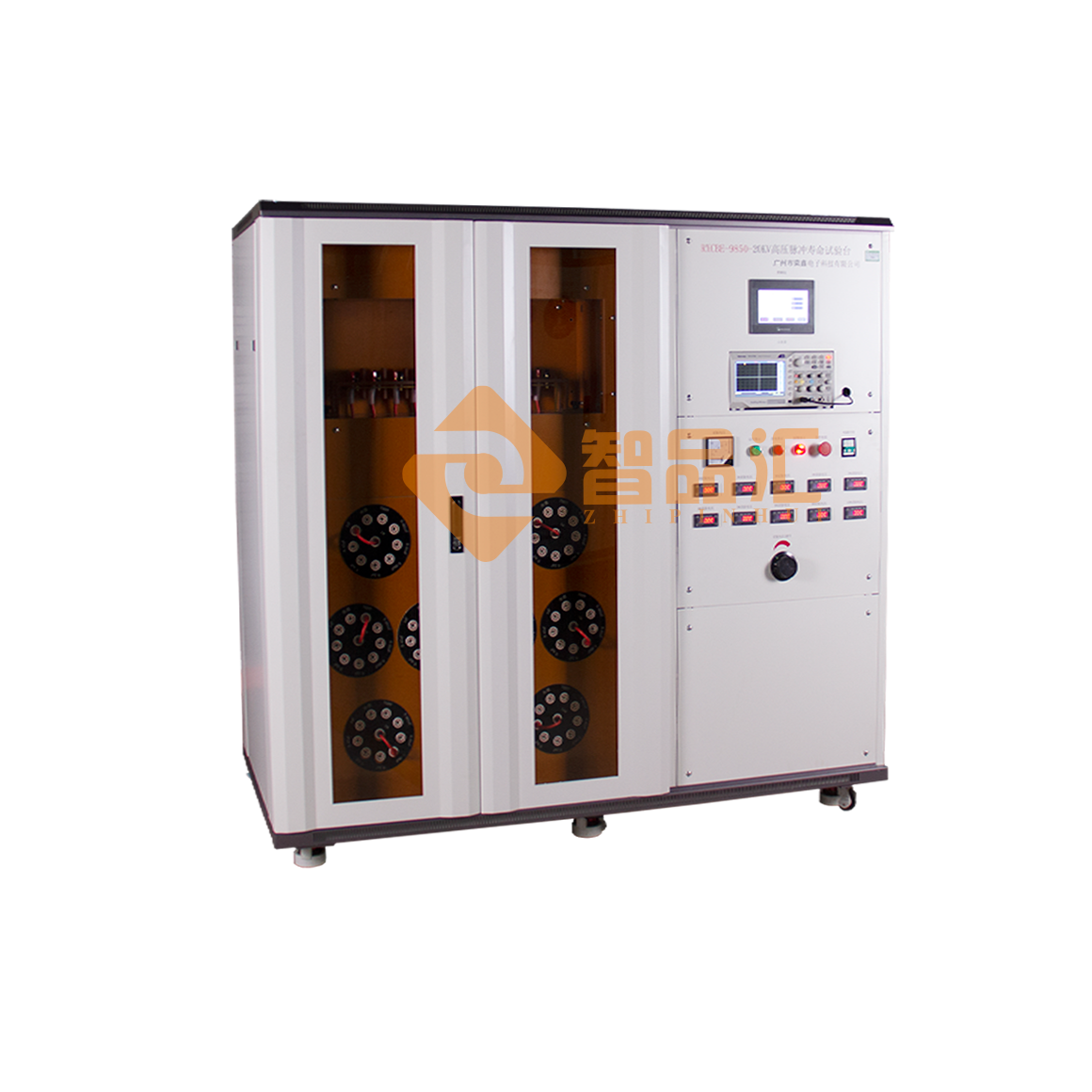

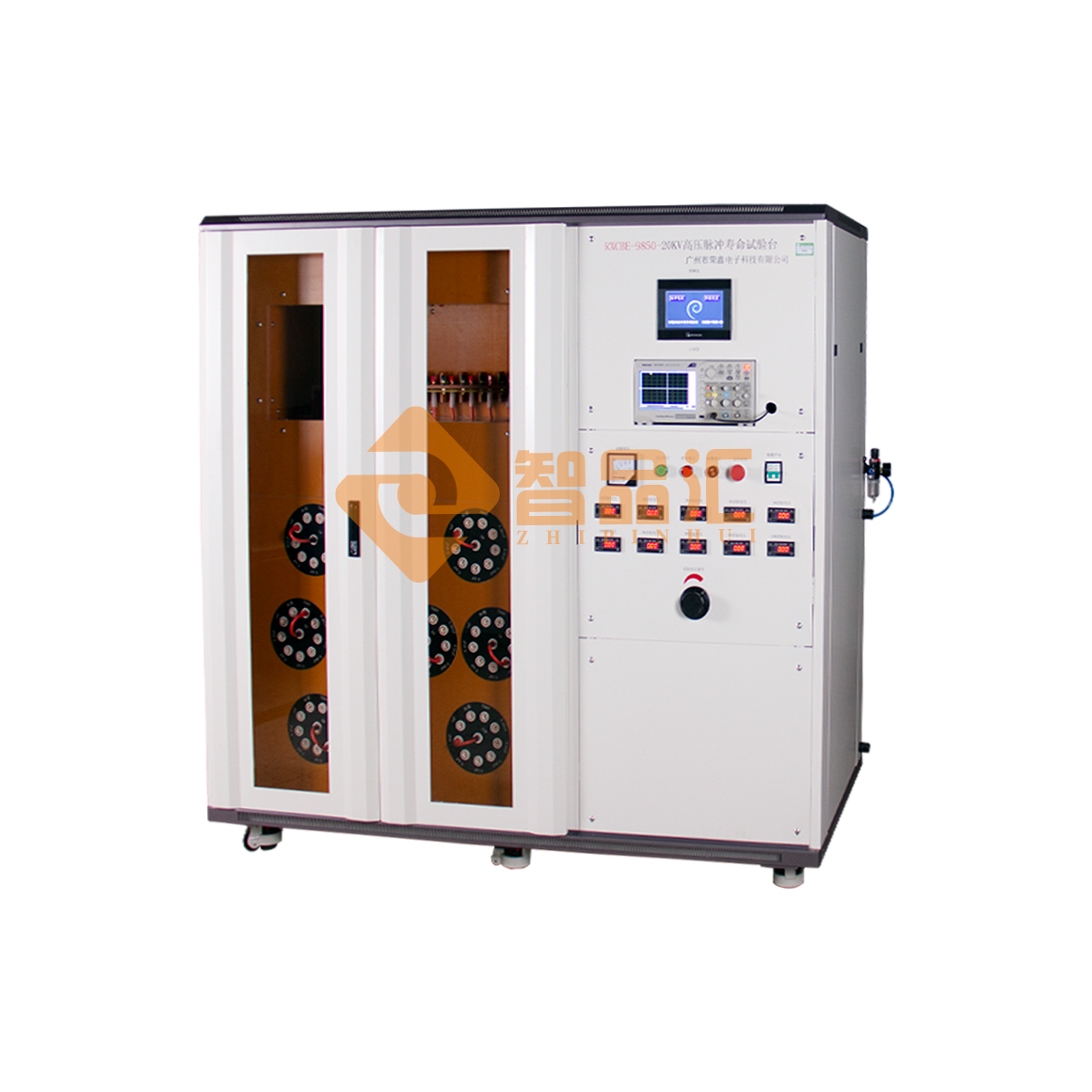

RXCBE-9850-20KV High Voltage Pulse Life Test Stand

1. Introduction

RXCBE9850 20KV high-voltage pulse life test bench is a special equipment for high-voltage pulse voltage charge and discharge test of resistors. It adopts Weiluntong touch screen and Mitsubishi PLC for system control. The operation is simple and convenient. At the same time, the equipment has the characteristics of multi-level energy storage capacitor setting, multi-station simultaneous operation, high output voltage, and large discharge current.

2. Technical features
It adopts true color touch screen for systematic control, which is simple and convenient to operate;

8-level energy storage capacitor setting, 1-way external energy storage capacitor expansion can be set, which meets various test standards;

10-way stations charge and discharge at the same time to meet the user's testing needs;

The energy storage capacitor port and sample test tooling are equipped with safety protection covers, which stop discharging after opening;

Equipped with resistor end voltage monitoring terminals, the voltage at the resistor end can be monitored in real time through an oscilloscope and a high-voltage probe;

Graphite electrodes are used as discharge switches, which have the characteristics of large current, long life, high voltage resistance, and high insulation;

It has protection functions such as overvoltage and overload.

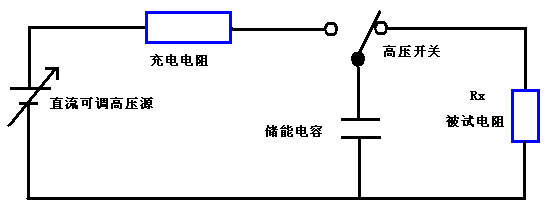

3. Test schematic diagram

4. Main technical indicators

According to the standard	Customized according to customer requirements, inspect the life of the tested product during instantaneous high-voltage pulse discharge
Test voltage	DC0～20.00kV; voltage accuracy: ±(5%+3 characters) It is also equipped with an auxiliary pointer meter to indicate the voltage, so as to check whether the discharge is completed when the equipment is powered off The AC power inlet of the equipment is equipped with a purified and stabilized power supply to stabilize the voltage
Measured resistance range	3Ω~300MΩ
Energy storage capacity	8-level energy storage capacitors: 750PF, 0.001uF, 0.01uF, 0.08uF, 0.2uF, 0.4uF, 0.47uF, 1uF 1 external energy storage capacitor can be configured; The capacitor transfer device adopts a high-voltage plug design, which is convenient for transferring energy storage capacitors, and has an acrylic protective door that can only be opened for adjustment, and is equipped with a door switch. If the door is opened, the energy storage capacitor will be automatically discharged
Test station	10 stations, the test voltage of all stations is uniformly adjusted 1. Each station's energy storage capacitor can be independently controlled, and independent charge and discharge control can be performed 2. Each station is equipped with an independent charging resistor, about 10KΩ 3. Each station is equipped with an independent voltmeter to display the charging voltage value
Test tooling	Customized safety test tooling, made of acrylic or insulating materials, automatically stops and discharges when the door is opened
Controls	Adopt Mitsubishi PLC + Weiluntong touch screen control 1. Charging and discharging time: 1s~9999S adjustable; its accuracy is ± 1%, meeting the action speed of 12 times per minute; 2. Number of tests: 1~9999 times; its accuracy is ± 1 time; digital display; automatic shutdown when the number of operations reaches 3. 10 stations act simultaneously

4. Main technical indicators

According to the standard	Customized according to customer requirements, inspect the life of the tested product during instantaneous high-voltage pulse discharge
Test voltage	DC0～20.00kV; voltage accuracy: ±(5%+3 characters) It is also equipped with an auxiliary pointer meter to indicate the voltage, so as to check whether the discharge is completed when the equipment is powered off The AC power inlet of the equipment is equipped with a purified and stabilized power supply to stabilize the voltage
Measured resistance range	3Ω~300MΩ
Energy storage capacity	8-level energy storage capacitors: 750PF, 0.001uF, 0.01uF, 0.08uF, 0.2uF, 0.4uF, 0.47uF, 1uF 1 external energy storage capacitor can be configured; The capacitor transfer device adopts a high-voltage plug design, which is convenient for transferring energy storage capacitors, and has an acrylic protective door that can only be opened for adjustment, and is equipped with a door switch. If the door is opened, the energy storage capacitor will be automatically discharged
Test station	10 stations, the test voltage of all stations is uniformly adjusted 1. Each station's energy storage capacitor can be independently controlled, and independent charge and discharge control can be performed 2. Each station is equipped with an independent charging resistor, about 10KΩ 3. Each station is equipped with an independent voltmeter to display the charging voltage value
Test tooling	Customized safety test tooling, made of acrylic or insulating materials, automatically stops and discharges when the door is opened
Controls	Adopt Mitsubishi PLC + Weiluntong touch screen control 1. Charging and discharging time: 1s~9999S adjustable; its accuracy is ± 1%, meeting the action speed of 12 times per minute; 2. Number of tests: 1~9999 times; its accuracy is ± 1 time; digital display; automatic shutdown when the number of operations reaches 3. 10 stations act simultaneously
