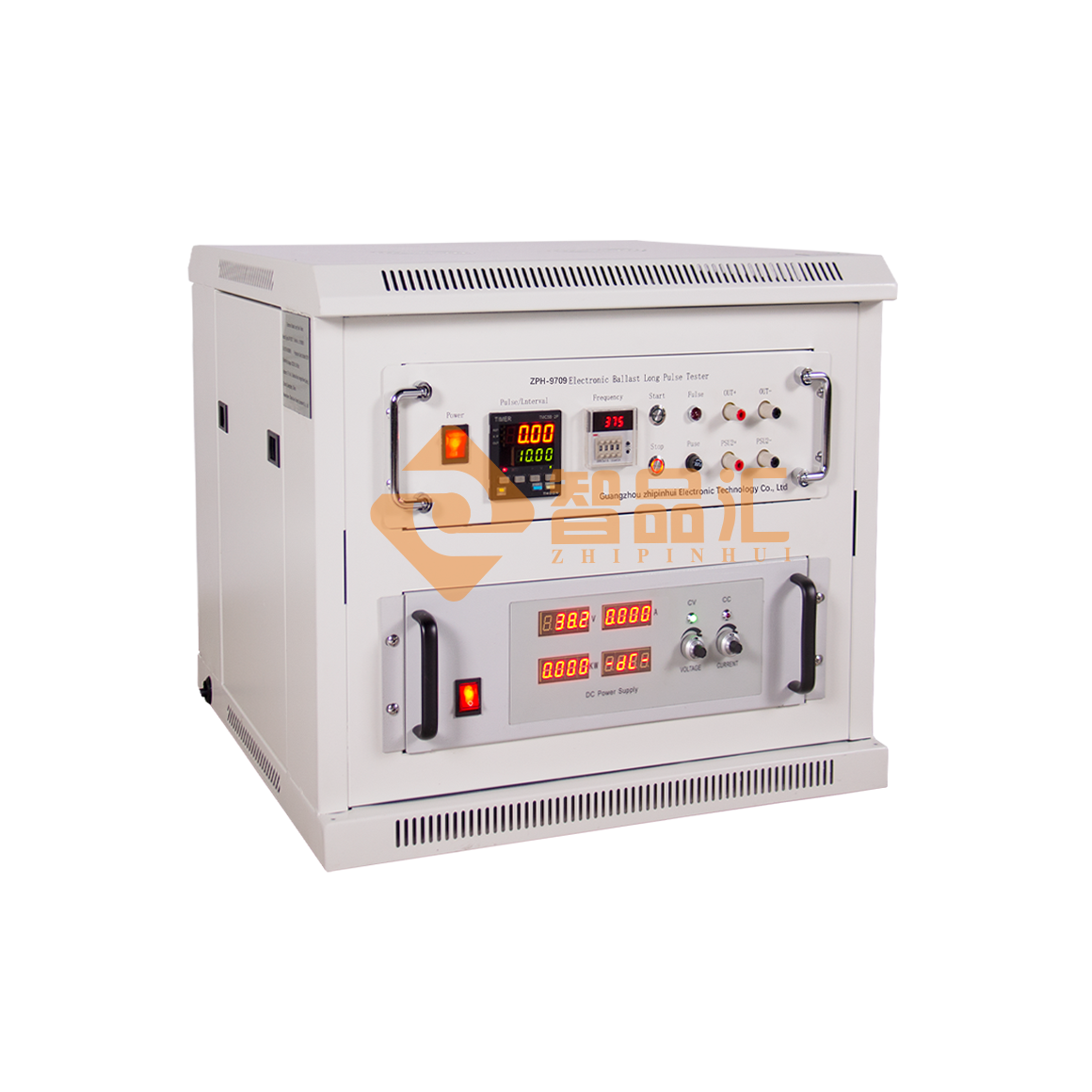

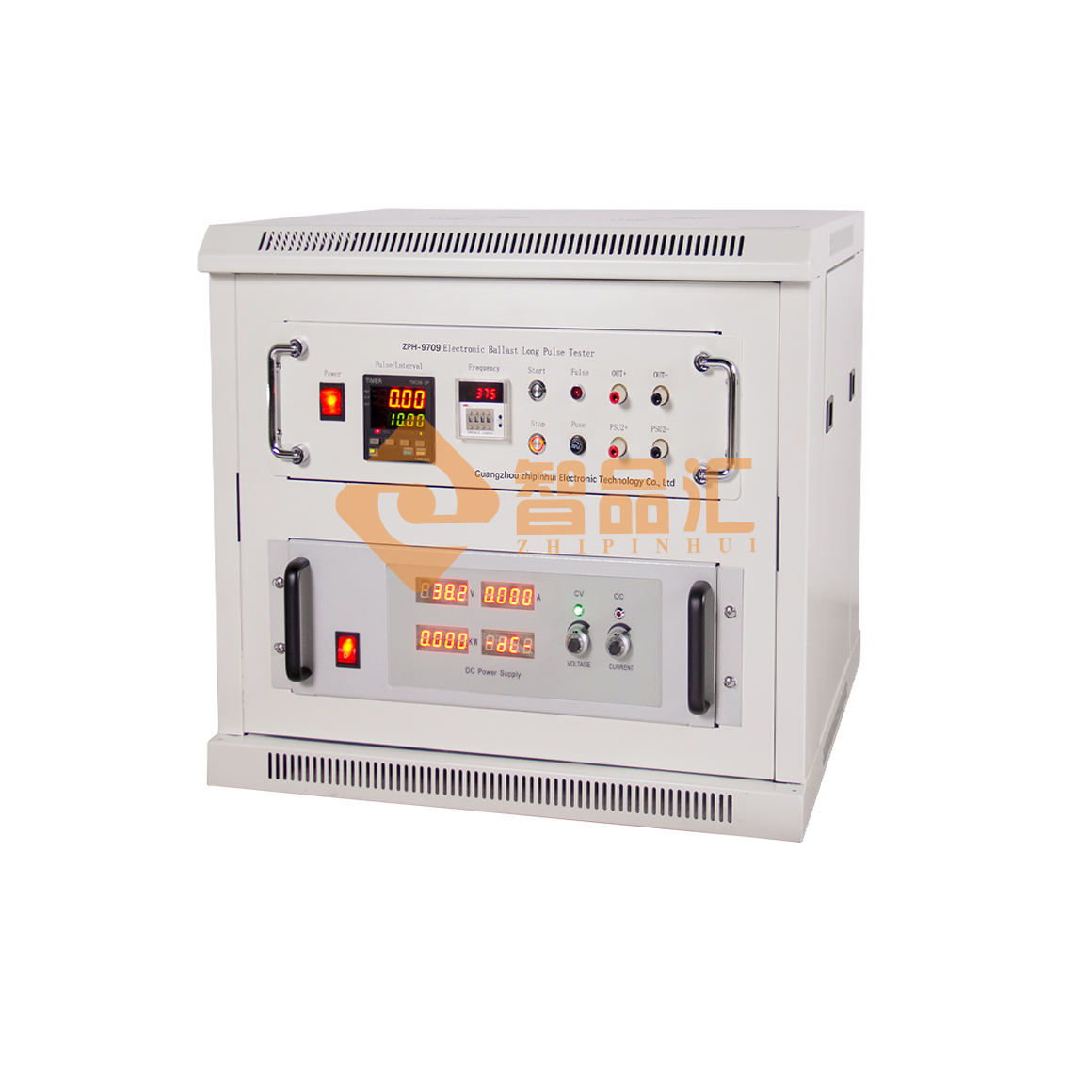

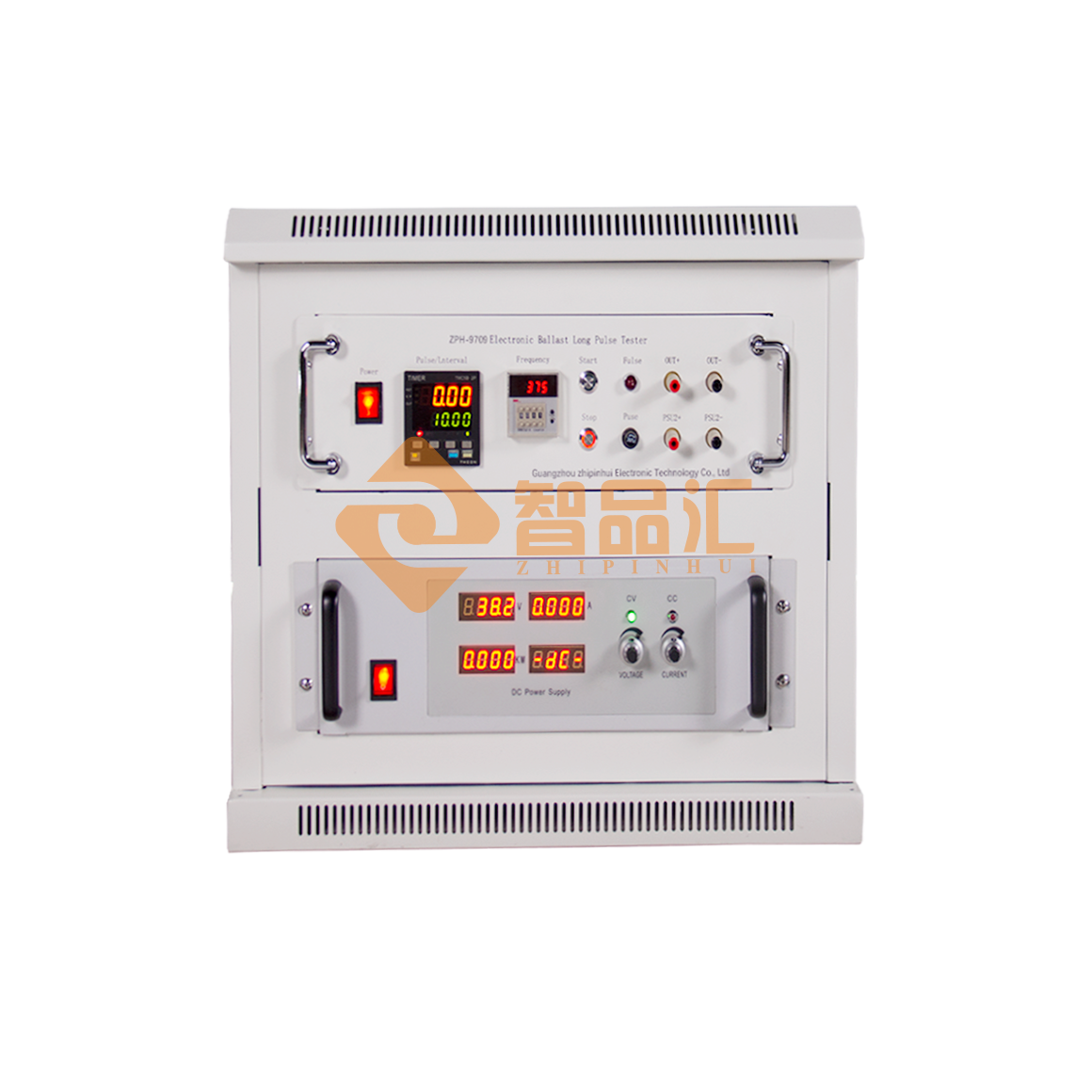

400-816-6687ZPH-9709 Electronic Ballast Long Pulse Tester
I. Overview:
The electronic ballast long pulse voltage tester is based on GB19510.1 Figure G.2, GB19510.4 Appendix J.11, IEC61347-1 Figure G.2, IEC61347-2-3 Appendix J and other battery-powered electronic ballast detection related standards, providing high-voltage long pulse test. The instrument uses front low-contact impedance gold-plated terminals for convenient testing, and uses vacuum contactors for control. The on-off timing is controlled by a time relay with high accuracy. An external oscilloscope can be used to conveniently observe the pulse duration throughout the process.
2. Main technical indicators:
1. Test times: 1~9999 times
2. Pulse width: 0.01~9.99 seconds
Interval time: 1~99 seconds
3. PSU1 pulse voltage peak adjustable range: 10~500V
The maximum output current of PSU1 pulse power supply is 3A, and the load full load adjustment rate does not exceed 2%
4. Pulse transient suppression resistor and capacitor: 100Ω, 0.1uF
5. The power supply of PSU2 product is configured by the user separately, and the user uses the terminal input on the back panel of the instrument
6. High-voltage fast power device is used to control the output pulse, and the opening time is about 1uS
High reverse voltage fast reverse bypass diode, the recovery time does not exceed 500nS
7. Pulse observation: The user tests with an external oscilloscope
8. Power supply: AC 220V/50Hz;
9. Working environment: temperature 0~40℃; relative humidity ≤90% and no condensation
10. Equipment size: floor-standing, width 600mm * Depth 600mm * height 500mm, weight about 60kg
ZPH-9709 Electronic Ballast Long Pulse Tester
I. Overview:
The electronic ballast long pulse voltage tester is based on GB19510.1 Figure G.2, GB19510.4 Appendix J.11, IEC61347-1 Figure G.2, IEC61347-2-3 Appendix J and other battery-powered electronic ballast detection related standards, providing high-voltage long pulse test. The instrument uses front low-contact impedance gold-plated terminals for convenient testing, and uses vacuum contactors for control. The on-off timing is controlled by a time relay with high accuracy. An external oscilloscope can be used to conveniently observe the pulse duration throughout the process.
2. Main technical indicators:
1. Test times: 1~9999 times
2. Pulse width: 0.01~9.99 seconds
Interval time: 1~99 seconds
3. PSU1 pulse voltage peak adjustable range: 10~500V
The maximum output current of PSU1 pulse power supply is 3A, and the load full load adjustment rate does not exceed 2%
4. Pulse transient suppression resistor and capacitor: 100Ω, 0.1uF
5. The power supply of PSU2 product is configured by the user separately, and the user uses the terminal input on the back panel of the instrument
6. High-voltage fast power device is used to control the output pulse, and the opening time is about 1uS
High reverse voltage fast reverse bypass diode, the recovery time does not exceed 500nS
7. Pulse observation: The user tests with an external oscilloscope
8. Power supply: AC 220V/50Hz;
9. Working environment: temperature 0~40℃; relative humidity ≤90% and no condensation
10. Equipment size: floor-standing, width 600mm * Depth 600mm * height 500mm, weight about 60kg
