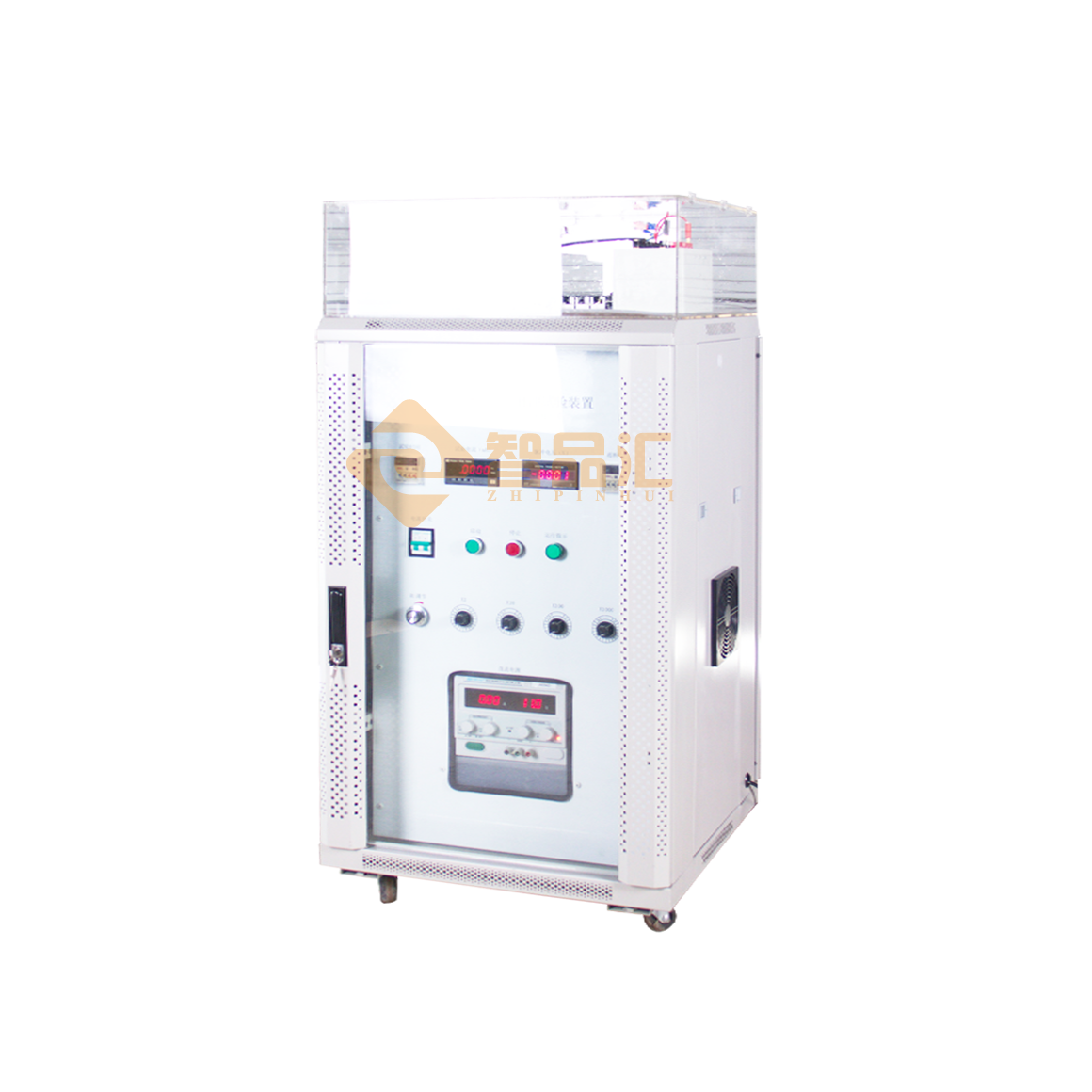

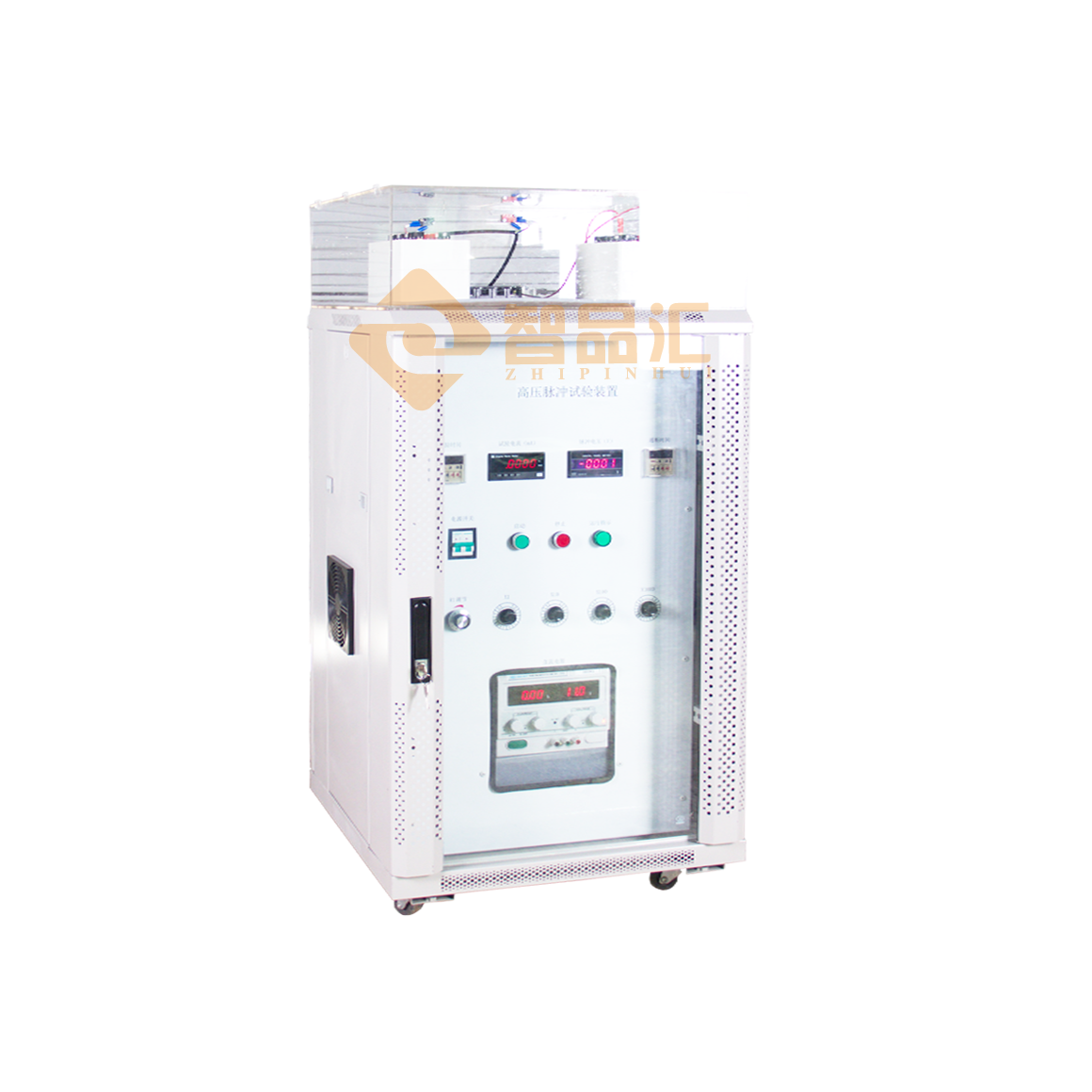

RXGY-9850 High Voltage Pulse Test Device

Compliance with standards: According to Chapter 15.1 and Appendix I.1 of GB 19510.9-2009, Chapter 15.2 and Appendix J.1 of GB 19510.10-2009

Technical parameters:
1. Test station: one for each test
2. Test DC power supply:
A. DC0~300.0V adjustable, digital display accuracy ± (0.5% + 5 characters), voltage regulation accuracy 1%
According to the standard configuration, the reverse polarity pulse protection circuit composed of protection diodes, resistors and capacitors
B. Isolated output power supply
C. The maximum output current does not exceed 1A
D. Output ammeter: DC0~199.9mA digital display accuracy ± (0.5% + 5 characters)
3. Power-on and power-off time: 1~99 seconds adjustable
Test time: 0.01~99.99 hours, automatic shutdown when the test time is up
4. Pulse generator:
A. Configure high-voltage capacitors 5000PF and 50PF according to standards
B. Configure appropriate fast high-voltage rectifier diodes according to standards
C. Configure current regulating resistors:

Adjustable resistance 0~100Ω~1000Ω, 2 gears to choose from, maximum load current 200mA
D. Configure a vacuum relay switch with a closing time of 3~15mS, such as H16, VR312, VR412, or equivalent similar products
E. Configure adjustable multi-gear varistor, high and low voltage module independent wiring terminals
High voltage module: 1KV, 2KV, 3KV, 4KV, 5KV, 6KV, 2 each
Low voltage module: 100V~900V increases by 100V, a total of 9 gears, 2 each
5. Electrostatic high voltage meter: measurement range 0~8KV, digital display, resolution 1V
Display accuracy ± (1% reading + 10 characters)
6. Control power supply: AC220V, 50Hz, 1000VA
7. Approximate volume of equipment: 600x600x1000mm, weight 150kg
