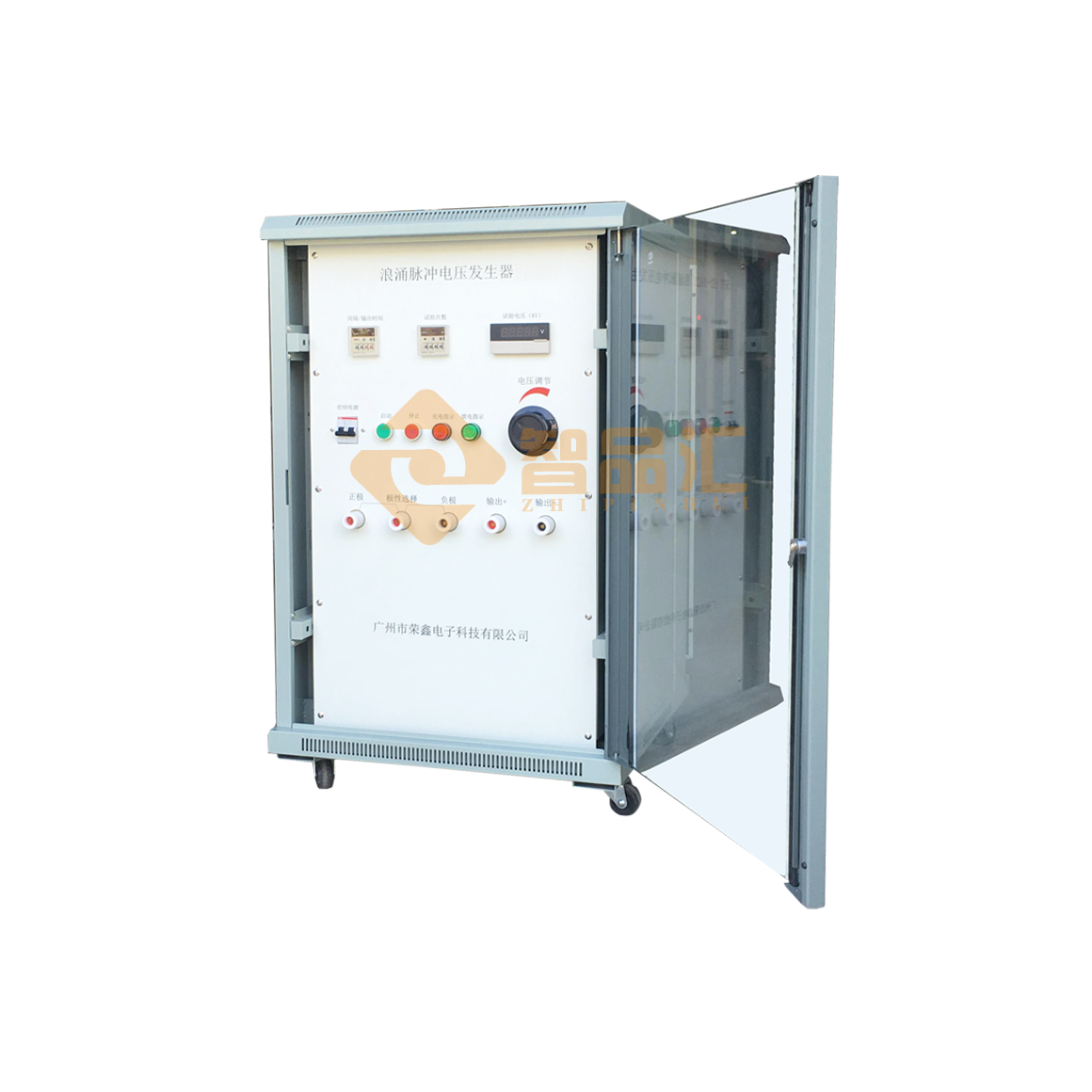

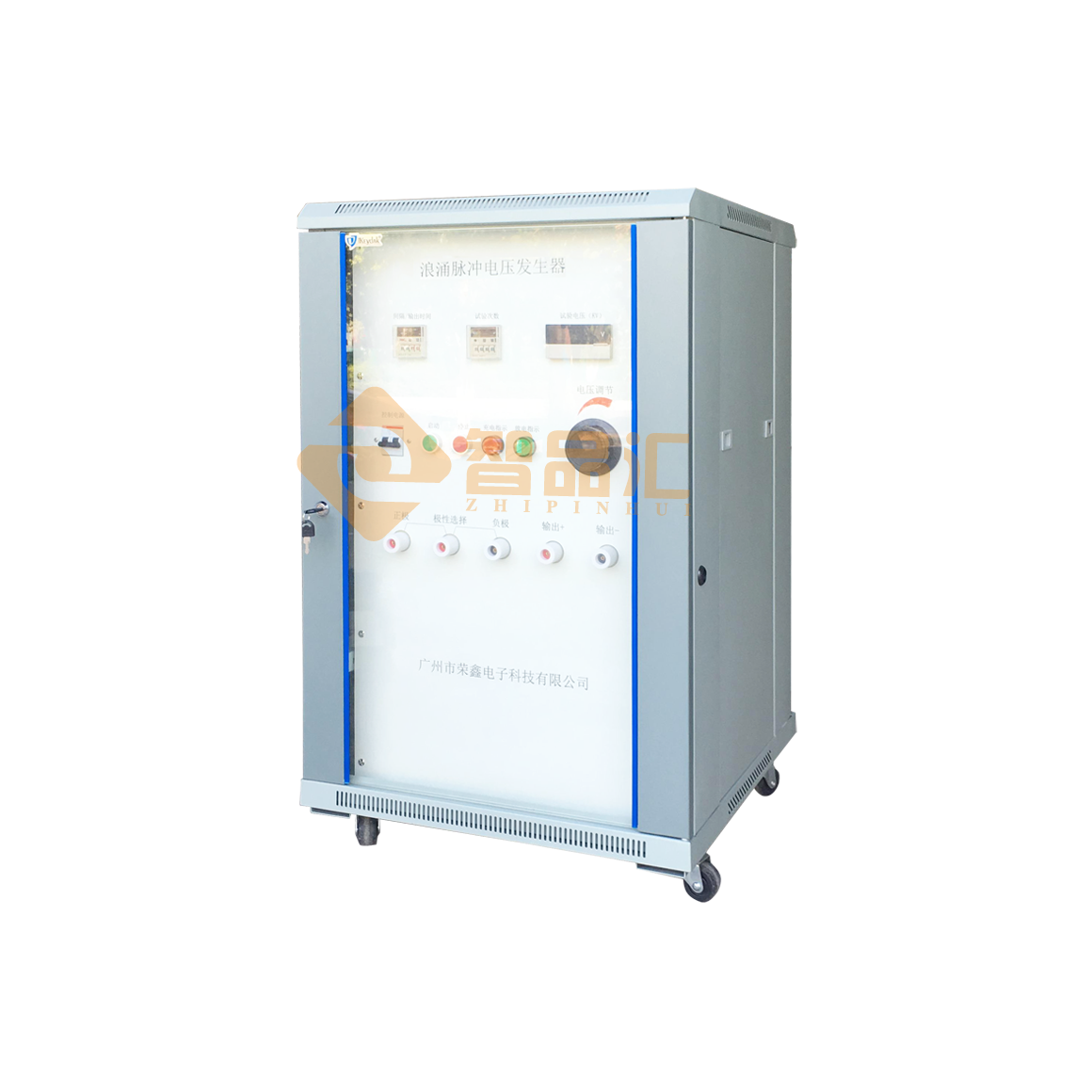

RX9850 Surge Pulse Generator
1. Main technical indicators:
The
instrument complies with the requirements of Chapter 14 of
GB4706.1-2005 and GB17627.1-1998. It is used to detect the ability of
components to withstand transient overvoltage, as well as the electrical
clearance and creepage distance of the equipment.
1. Time before no-carrier: 1.2μs ±30%
2. No-load half-peak time: 50μs ±20%
3. Effective impedance of equipment: 12Ω ±10%
4. Peak voltage adjustable range: 300V～12500V
Voltage accuracy ±5% at 1000V～12500V
5. Polarity: Positive and negative can be switched
6. Test interval: 10～99 seconds (generally 15 seconds)
Test output time: generally adjusted to 1 second
7. Number of tests: 1～9999 times
8. Test power supply: 220VAC 50Hz not more than 500VA
9. Waveform test requires users to prepare high-voltage probe + digital storage oscilloscope
RX9850 Surge Pulse Generator
1. Main technical indicators:
The instrument complies with the requirements of Chapter 14 of GB4706.1-2005 and GB17627.1-1998. It is used to detect the ability of components to withstand transient overvoltage, as well as the electrical clearance and creepage distance of the equipment.
1. Time before no-carrier: 1.2μs ±30%
2. No-load half-peak time: 50μs ±20%
3. Effective impedance of equipment: 12Ω ±10%
4. Peak voltage adjustable range: 300V～12500V
Voltage accuracy ±5% at 1000V～12500V
5. Polarity: Positive and negative can be switched
6. Test interval: 10～99 seconds (generally 15 seconds)
Test output time: generally adjusted to 1 second
7. Number of tests: 1～9999 times
8. Test power supply: 220VAC 50Hz not more than 500VA
9. Waveform test requires users to prepare high-voltage probe + digital storage oscilloscope
Zhipinhui After-Sales Policy:
*After-Sales Hotline: +864008166687
1. Our company has assembled a team of experienced field engineers and senior technicians to promptly respond
to any equipment issues and provide after-sales maintenance.
2. Within China, within one week of new product delivery, our after-sales technical staff will install the equipment and
provide after-sales training at the customer's location, using the contact information and address provided by the customer.
3. All complaints related to product quality will be responded to within one hour. Within 3-5 hours within the province,
and within 24-48 hours outside the province, we will arrive at the customer's site,
determine the appropriate action based on the complaint, and provide after-sales repairs. (Domestic)
4. For international travel, our company can also arrange for an after-sales engineer to visit you for installation and
commissioning. Please discuss any travel and catering issues in advance.
We also provide video installation guides for you to choose from, providing you with a comprehensive and multi-faceted solution.
5. Any material costs related to product quality during the warranty period will be borne by our company.
6. During the warranty period, we will provide free repairs due to improper use or environmental factors.
The materials and accessories used for repairs will be charged at cost only.
