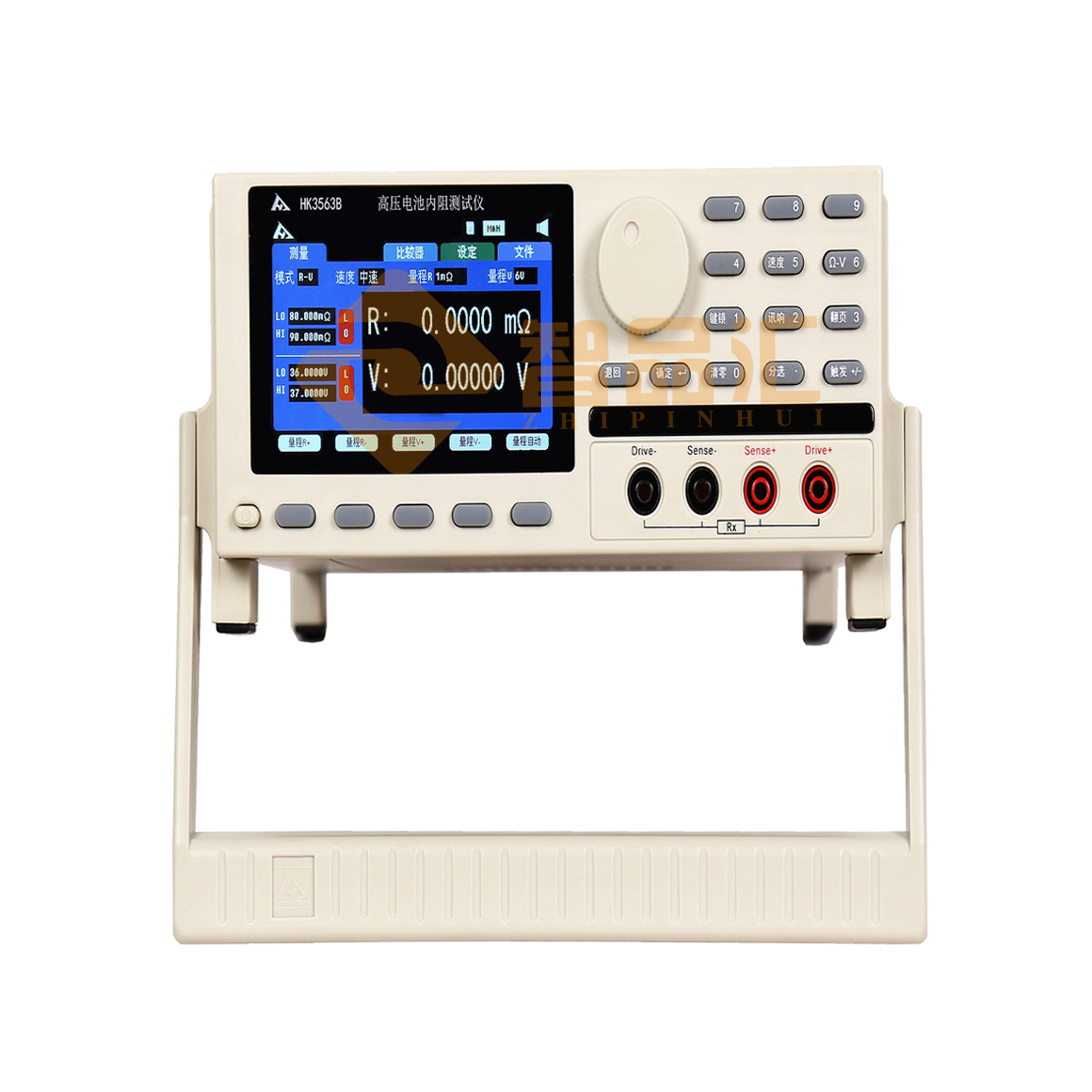

HK3563B High Voltage Battery Internal Resistance Tester

Product Features

4.3-inch TFT true color LCD display, minimum resolution 0.1uΩ, 10uV, supports up to 800V voltage test.

High precision, good stability, test speed up to 100 times/second

Comparison function, support multi-level sorting, data storage

Standard RS232 (optional RS485) communication interface, supports SCPI and Modebus (RTU) communication modes

Standard Handler (I/O) industrial control interface, especially suitable for high-speed automatic test system

model	HK3563	HK3563A	HK3563B
Maximum input voltage	Rated input voltage: 60V Maximum rated voltage to ground: 60V	Rated input voltage: 300V Maximum rated voltage to ground: 300V	Rated input voltage: 600V (800V) Maximum rated voltage to ground: 600V (800V)

Resistance measurement range	1mΩ (maximum display 3.1000mΩ, resolution 0.1μΩ) ~ 1KΩ range (maximum display 3100.0Ω, resolution 100mΩ), 7 levels of switching
Measurement accuracy	10mΩ~1000Ω range ± 0.3%rdg.±3dgt. (±3dgt. must be added for EX.FAST, ±2dgt. must be added for FAST/MEDIUM) 1mΩ range ± 0.3%rdg.±10dgt. (±30dgt. must be added for EX.FAST, ±10dgt. must be added for FAST, ±5dgt. must be added for MEDIUM)

Voltage measurement range	DC6V (resolution 10μV), DC60V (resolution 100μV), two-speed switching	DC6V~DC60V~DC300V(resolution 1mV), three-speed switching	DC6V~DC60V~DC600V(resolution 1mV), three-speed switching
show	Impedance (31000), voltage (±600000). High brightness, ultra-clear TFT LCD display
Sampling time	EX.FAST：8ms，FAST：15.5ms，MEDIUM:83ms，SLOW;288ms(The above is the fastest time, which depends on the test items and power supply frequency)
Total measurement time	Response time + sampling time (the response time of about 1ms for impedance/voltage is for reference only, and depends on the test process and the object being tested)
Comparator	Judgment: HI/IN/LO (voltage and impedance are judged independently one by one), comprehensive judgment (PASS/FAIL. AND operation of impedance judgment result and voltage judgment result), interface display, buzzer alarm, external I/O output, maximum load voltage 30V, maximum output current 100mA.

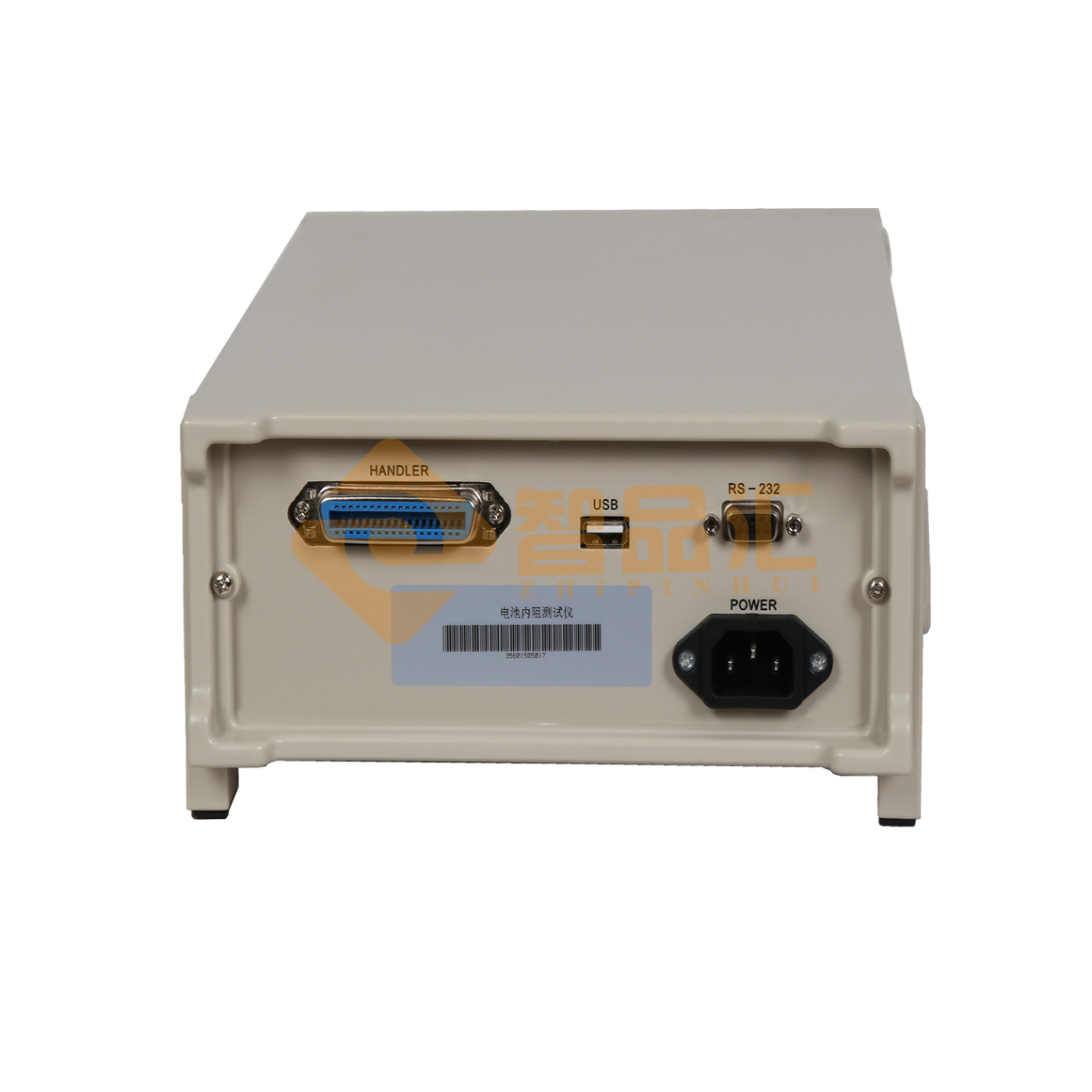

External Interface	Handle I/O,RS-232C,USB
power supply	AC:85-242V ，47~63Hz，15VA
Volume and weight	249W×103H×353D mm，3.5kg

model	HK3563	HK3563A	HK3563B
Maximum input voltage	Rated input voltage: 60V Maximum rated voltage to ground: 60V	Rated input voltage: 300V Maximum rated voltage to ground: 300V	Rated input voltage: 600V (800V) Maximum rated voltage to ground: 600V (800V)

Resistance measurement range	1mΩ (maximum display 3.1000mΩ, resolution 0.1μΩ) ~ 1KΩ range (maximum display 3100.0Ω, resolution 100mΩ), 7 levels of switching
Measurement accuracy	10mΩ~1000Ω range ± 0.3%rdg.±3dgt. (±3dgt. must be added for EX.FAST, ±2dgt. must be added for FAST/MEDIUM) 1mΩ range ± 0.3%rdg.±10dgt. (±30dgt. must be added for EX.FAST, ±10dgt. must be added for FAST, ±5dgt. must be added for MEDIUM)

Voltage measurement range	DC6V (resolution 10μV), DC60V (resolution 100μV), two-speed switching	DC6V~DC60V~DC300V(resolution 1mV), three-speed switching	DC6V~DC60V~DC600V(resolution 1mV), three-speed switching
show	Impedance (31000), voltage (±600000). High brightness, ultra-clear TFT LCD display
Sampling time	EX.FAST：8ms，FAST：15.5ms，MEDIUM:83ms，SLOW;288ms(The above is the fastest time, which depends on the test items and power supply frequency)
Total measurement time	Response time + sampling time (the response time of about 1ms for impedance/voltage is for reference only, and depends on the test process and the object being tested)
Comparator	Judgment: HI/IN/LO (voltage and impedance are judged independently one by one), comprehensive judgment (PASS/FAIL. AND operation of impedance judgment result and voltage judgment result), interface display, buzzer alarm, external I/O output, maximum load voltage 30V, maximum output current 100mA.
External Interface	Handle I/O,RS-232C,USB
power supply	AC:85-242V ，47~63Hz，15VA
Volume and weight	249W×103H×353D mm，3.5kg
