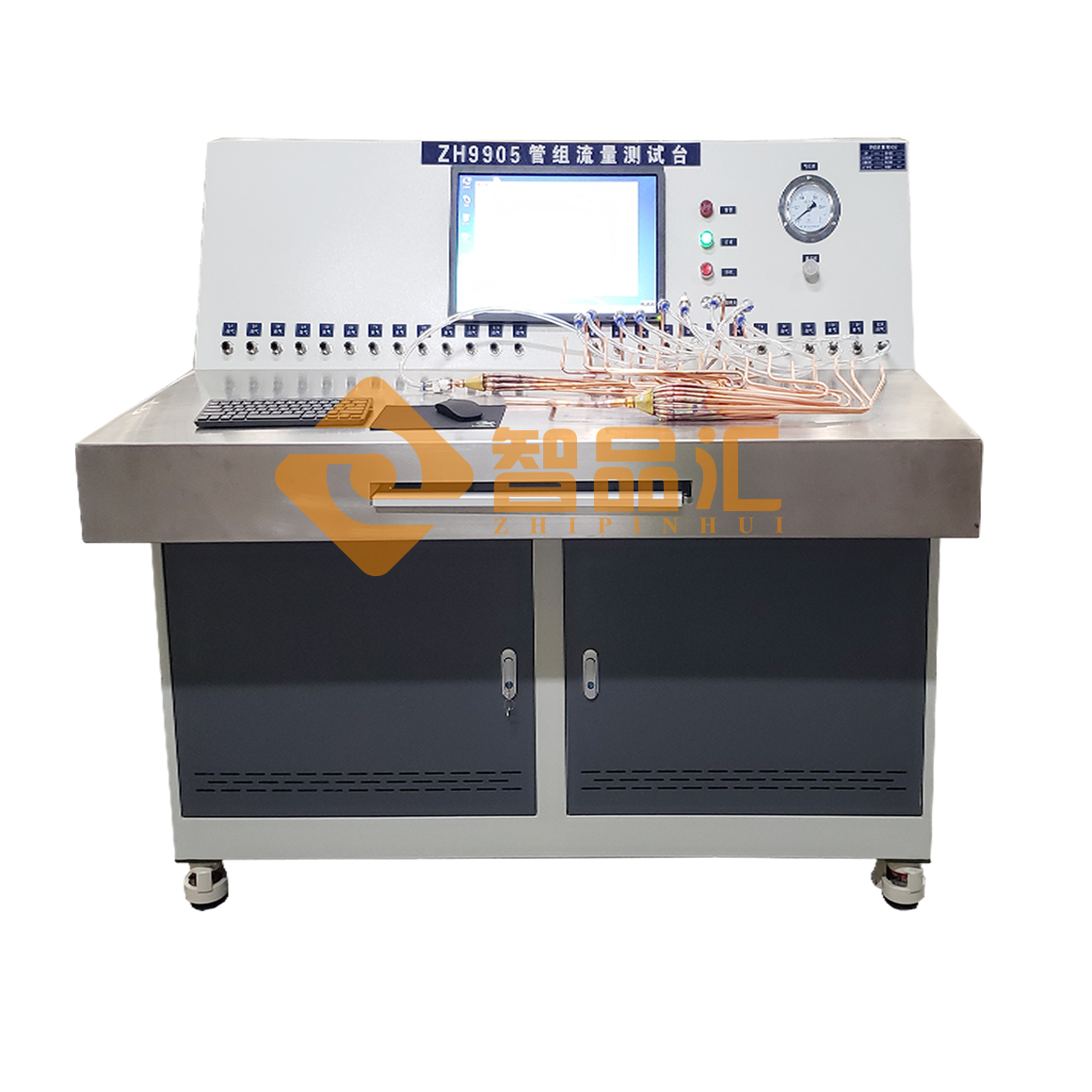

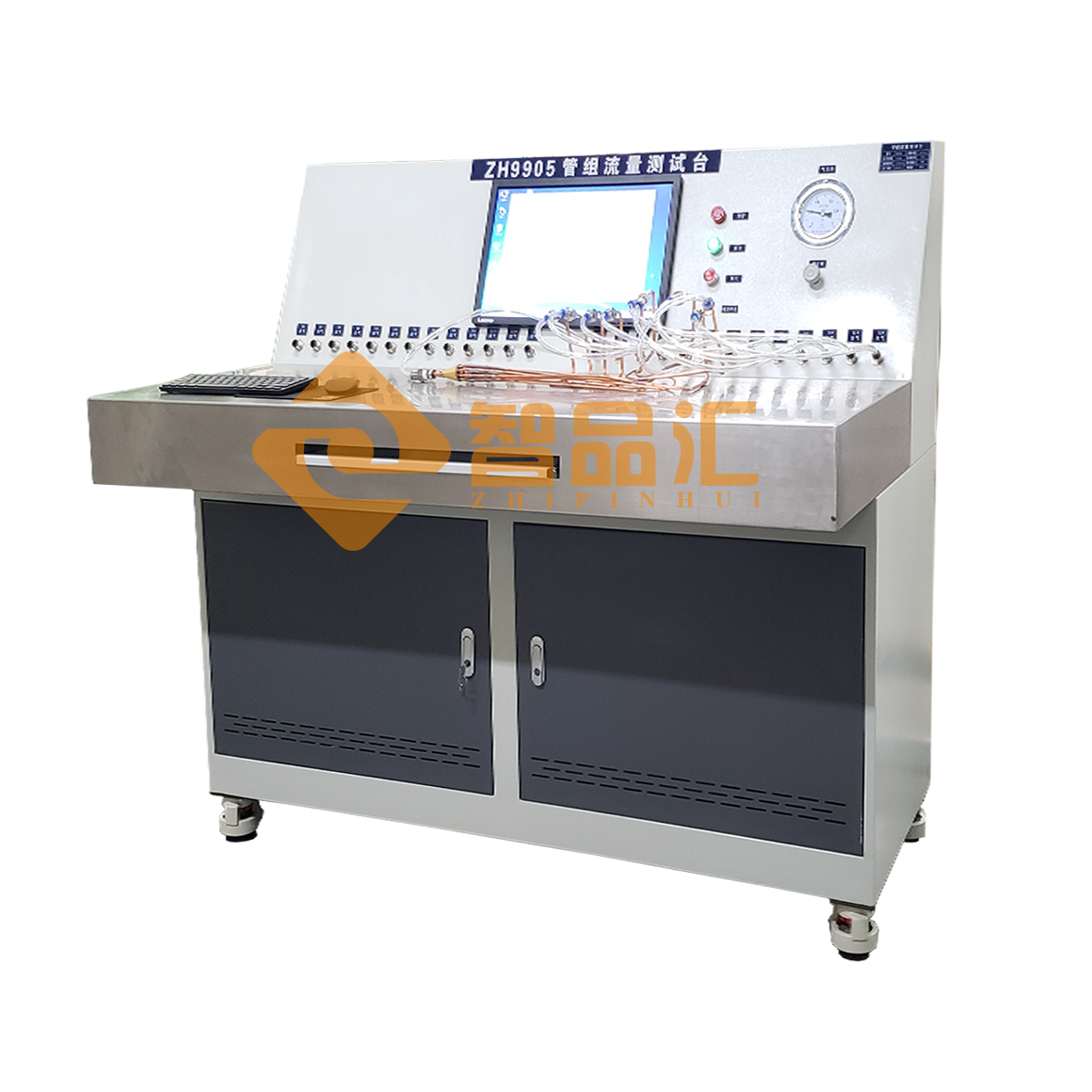

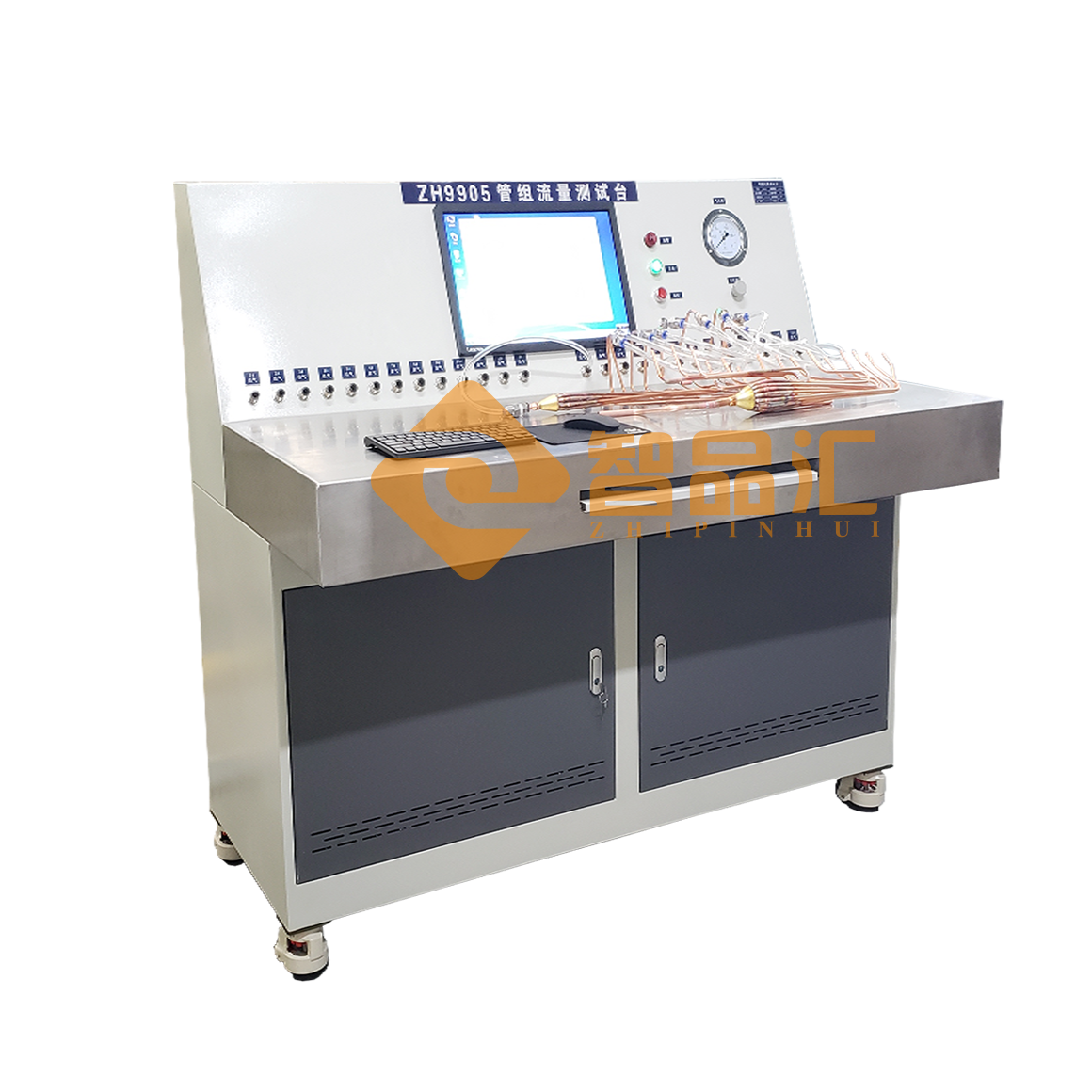

ZH9905 pipe group flow test bench

一、Equipment overview

According to the requirements of standards such as GB20289-2006, GB19141, GB4706.12, GB4706.24, GB4706.32 on pipeline flow test, this device applies specified pressure to the tested pipe to measure whether its flow rate is qualified.

二、Main features

1. Made of stainless steel and sheet metal spray paint, beautiful and rust-proof.

2. The test process is automatic, stable and reliable.

3. Nitrogen is used as the test medium, safe and reliable.

4. High-precision digital pressure and imported flow sensors are used, the data is accurate, and the data can be fed back to the computer to achieve measurement control.

三、Main technical parameters

1. Nitrogen gas source:

A. Gas supply volume is not less than 18m3/h

B. Gas supply pressure is not less than 1.5MPa

C. Gas source is external

D. The equipment is equipped with a gas storage tank to ensure stable gas supply

E. Equipped with an oil-water separator

2. Pressure control device:

A. Pressure adjustment range: 0.1-1.0MPa;

B. Pressure measurement accuracy: ±2%

C. Digital display

3. Detection station: single station, left and right stations can be switched

Single station can detect a maximum of 1 in 24 out pipe group, and two stations can be separated to measure 2 1 in 12 out pipe groups (left and right program switching)

4. Quick connector: The test sample connection port adopts a copper tube quick connector, which is quick and easy to disassemble and has no leakage at the connection

5. Flow measurement range: 0~100L/min;

Flow measurement accuracy: ±2%
